GV-AVD2700
Description
GV-AVD4710 July 23, 2018 - 1 - GV-AVD2700 2MP H.265 Low Lux WDR Pro IR Vandal Proof IP Dome * 1/2.9” progressive scan low lux CMOS * Min. illumination at 0.01 lux * Triple streams from H.265, H.264 and MJPEG * Up to 30 fps at 1920 x 1080 * Intelligent IR * IR distance up to 30 m (98.4 ft) * Day and Night function (with removable IR ‐cut filter ) * Vandal resistance (IK10 for metal casing) * ...
Warning! Product withdrawn from production!
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-AVD4710 July 23, 2018
- 1 -

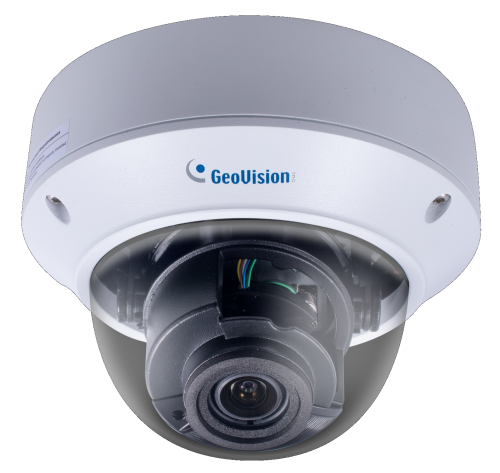

GV-AVD2700 2MP H.265 Low Lux WDR Pro IR Vandal Proof IP Dome
* 1/2.9” progressive scan low lux CMOS
* Min. illumination at 0.01 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and Night function (with removable IR ‐cut filter )
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* 3 ‐axis mechanism (pan / tilt / rotate)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Two ‐way audio
* DC 12V / PoE (IEEE 80 2.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tampering Alarm
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant
Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV ‐AVD2700
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera is equipped with an automatic IR ‐cut filter and IR LEDs fo r day and night surveillance. With Wide Dynamic
Pro (WDR Pro), it can process scenes with contrasting intensities of light and produce clear image. Adjustable in 3 axis (pan, tilt and
rotate), it offers an entry ‐level surveillance solution with all the essential features and excellent image quality.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-AVD4710 July 23, 2018
- 2 -
Dimensions
Specifications
Camera
Image Sensor 1/2.9” progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 0.01 Lux
Minimum
Illumination
IR On 0 Lux
Shutter Speed Auto, Manual (1/6 ~ 1/100000 sec)
White Balance Auto, Manual
Gain Control Auto, Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 2 MP
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 2.8 ~ 12 mm
Lens Type Varifocal lens
Maximum Aperture F/1.4
Mount Ø14 mm
Horizontal FOV 108°~30°
Focus Manual (with lock)
Zoom Manual (with lock)
Operation
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Main Stream 1920 x 1080 (Default)
Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288, 352 x 288
Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 352 x 288
Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
GV-AVD4710 July 23, 2018
- 3 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, 3D Noise reduction, Image Orientation,
Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation
(BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog
Video Analytics Motion Detection, Tampering Alarm
Audio Compression G.711
Audio Support Two ‐way Audio
Sensor Input 1 Input
Alarm Output 1 Digital Output
Network
Interface
10/100 Ethernet
Ethernet Protocol
ARP, DHCP, DNS, DDNS, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, IGMP, L2TP, NTP,
PPPoE, RTP, RTCP, RTSP, SMTP, SIP, TCP/IP, UDP, UPnP, 802.1x, ONVIF (Profile S)
Mechanical
Pan
0° ~ 360°
Tilt
0° ~ 80°
Camera Angle
Adjustment
Rotate
0° ~ 360°
Power
DC Jack (DC 12V, 1A), PoE (IEEE802.3af)
Ethernet
RJ ‐ 45
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply.
Digital I/O
4 ‐pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card types are not supported.
Connectors
TV ‐ Out
BNC connector
General
Environment Temperature
‐40°C ~ 60°C ( ‐22°F ~ 140°F)
Humidity
0% to 95% (no condensation)
Power Source
12V DC / PoE (IEEE 802.3af)
Max. Power Consumption
7.2 W
Dimension
Ø148 x 111.3 mm (Ø5.8” x 4.4”)
Weight
0.75 kg (1.7 lb)
Ingress Protection
IP67
Vandal Resistance
IK10 (for metal casing)
Web Interface
Installation Management
Web‐based configuration
Maintenance
Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Tampering Alarm, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Network Storage
GV DVR / NVR (V8.7.4.0), GV VMS (V17.1), GV Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.4.0.0), GV Redundant / Failover Server (V1.1.0.0)
Smart Device Access
GV ‐ Eye for iOS and Android
Live Viewing
Browser (IE, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
GV-AVD4710 July 23, 2018
- 4 -
Packing List
1. IR Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card
Note: Power adapters can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount211 ‐ 2 Wall Mount Bracket
Dimensions: 253 x125 x 125 mm (10” x 4.9” x
4.9”)
Weight: 0.92 kg (2.02 lb)
GV ‐Mount212 ‐ 2 Wall Mount Bracket
Dimensions: Ø145 x 40 mm (5.7” x 1.6”)
Weight: 0.24 kg (0.5lb)
GV ‐PA191
Power over Ethernet
(PoE) Adapter
The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for
IP devices. The GV ‐ POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
