GV-APOE1611

GV-APOE1611 June 16, 2020  - 1 -  GV-APOE1611 16-Port Gigabit 802.3at Web Management PoE Switch     16‐ Port 10/100/1000BaseT(X) PoE+ with 2 SFP  Uplink Ports   IEEE 802.3at Compliant (16 Ports at Full 15.4 W)   Web‐based Configuration and Management   VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link  Aggregation, LACP, Port Security, Bandwidth  Control, Storm Control   Support for PD Alive Monitor   Support for ONVIF Discover   PoE connection for network cables up to 250 m (82...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-APOE1611 June 16, 2020
- 1 -

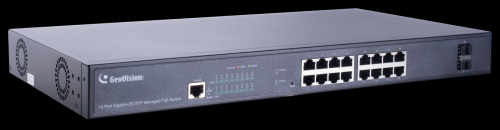

GV-APOE1611 16-Port Gigabit 802.3at Web Management PoE Switch

 16‐ Port 10/100/1000BaseT(X) PoE+ with 2 SFP
Uplink Ports
 IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
 Web‐based Configuration and Management
 VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link
Aggregation, LACP, Port Security, Bandwidth
Control, Storm Control
 Support for PD Alive Monitor
 Support for ONVIF Discover
 PoE connection for network cables up to 250 m (820
ft) at 10 Mbps transfer rate
 Max. 330 W power consumption
 19” Rack ‐mount
 Up to 16 GV ‐ IP Cameras support
Introduction
GV ‐APOE1611 is a 16 ‐ Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports. The switch supports IEEE
802.3at Power over Ethernet standard for a maximum power consumption of 330 W. While no special network cables are required for
connecting to your powered devices (PD), such as IP cam eras, GV ‐APOE1611 also allows power supply over network cables of up to
250 m (820 ft) in length, at 10 Mbps.
Designed for medium or large network environment to strengthen its network connection and efficiency, the switch provides
exceptionally smart Web management features, including VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security and more. In addition,
GV ‐APOE1611 gives you the option of installing it in a 19” cabinet with a rack ‐mount kit or underneath a desk.

Dimensions






GV-APOE1611 June 16, 2020
- 2 -
Specifications
Ethernet
Layer Supported L2

Ports

Number of Ports
16‐port 10/100/1000BaseT(X) with RJ ‐ 45 Connectors, PoE+
2‐port SFP Uplink Port

Performance

MAC Address 8 K, Auto ‐Learning, Auto ‐Aging

Buffer Memory 4 M bits

Transmission Method
Store and Forward

Transmission Media
10/100BaseT(X) Cat. 5 UTP/STP
1000BaseT Cat. 5e, 6 UTP/STP

Filtering/Forwarding Rates
10BaseT: 14,881 pps/port
100BaseTX: 148,810 pps/port
1000BaseT: 1,488,095 pps/port

Backplane Capacity
36 Gbps

Smart Features

VLAN VLAN Basic, Config, Voice VLAN, Protocol VLAN, MAC VLAN, GVRP, Surveillance VLAN

Network IPv4 / IPv6, DHCP Client / DHCPv6 Client

IGMP Snooping IGMP Snooping / Filter, MLD Snooping, MVR

Link Aggregation Load Balance, LAG, LACP

Quality of Service (QoS) QoS Queue Scheduling, Cos / DSCP / IP Precedence Mapping

ARP IP Source Guard, Dynamic ARP Inspection, DoS

DHCP IP DHCP Snooping, Option82

STP STP / MSTP / RSTP, BPDU Guard, BPDU Filter

SNMP SNMP Community, SNMP View, SNMP Trap, SNMP (V1, V2C, V3)

RMON RMON (1, 2, 3, 9)

ACL MAC ACL / ACE, IPv4 ACL / ACE, IPv6 ACL / ACE

AAA TACACS+, Radius, AAA

Discovery LLDP, MED

ONVIF ONVIF Detect, ONVIF Discover, ONVIF Server

PoE Configuration POE Global Configuration, POE Port Configuration, PD Alive Monitor

Diagnostics Ping / Ping6, Traceroute, Copper Test, DDMI

Port Management
Basic config (speed, duplex, flow control), Statistics, Storm Control, Rate Limit,
Port‐Security, Port Mirror, Port Protected, EEE, Jumbo Frame

Administrator Management
Basic info, System Status, User Management, SNTP, Import/Export Config, Firmware
Upgrade, System Reboot, Restore Factory

Mechanical Characteristics

LED Indicators
Per Port: Link/Act
PoE Act/Status
Power
System

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts
(16 Ports at Full 15.4 W / 9 Ports at Full 32 W)

PoE Power Supply Type
End ‐Span

Max. Power Consumption 330 W

POE Budget 300 W


GV-APOE1611 June 16, 2020
- 3 -
General
Dimensions (H x W x D) 45 x 441 x 226 mm (1.77” x 17.3” x 8.89”)

Weight 4.38 kg (9.65 lb)

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature ‐40°C ~ 70°C ( ‐40°F ~ 158°F)

Humidity 10 to 90% RH (non ‐condensing)

Standards and Regulatory

Standards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z
1000BaseSX/LX
IEEE 802.3x Full ‐duplex and Flow Control
IEEE 802.3ad Link Aggregation Control Protocol
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1X Port ‐based Network Access Control
IEEE 802.3at Power Over Ethernet (PoE+)

Regulatory CE, FCC Class A, RoHS compliant

Note:
1. The switch is a plug ‐and ‐play device and compatible with all SFP modules.
2. Specifications are subject to change without notice.





Accessories
Name
Details
GV ‐ LC


The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the
media transmission distance up to 220 / 550 m.

GV ‐LC10


The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the
media transmission distance up to 10 km.


Packing List
1. GV ‐APOE1611 x 1
2. Power Cord x 1
3. Screws x 8
4. Rack Mount Kit
5. Rubber Feet x 4
