GV-ADR2701 May 7, 2018  - 1 -  GV-ADR2701 2MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome      * 1/2.7" progressive scan low lux CMOS sensor  * Min. illumination at 0.02 lux  * Triple streams from H.265, H.264 or MJPEG  * Up to 25 fps at 1920 x 1080  * Intelligent IR  * IR distance up to 30 m (98.4 ft)  * Day and night function (with removable IR ‐ cu t filter)  * Ingress protection (IP66)  * DC 12V / PoE (IEEE 802.3af)  * Wide Dynamic Range (WDR)  * ...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-ADR2701 May 7, 2018
- 1 -

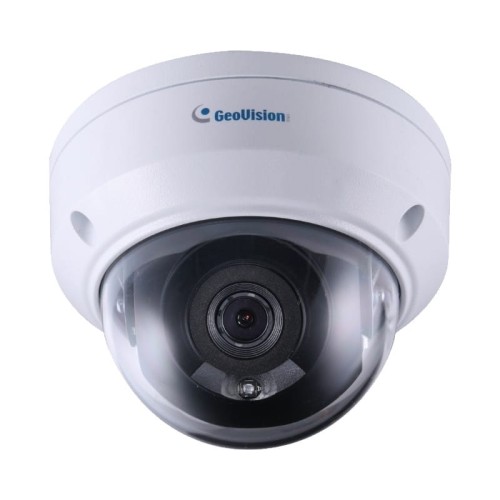

GV-ADR2701 2MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome


* 1/2.7" progressive scan low lux CMOS sensor
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 25 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and night function (with removable IR ‐ cu t filter)
* Ingress protection (IP66)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant


Introduction

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day
and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality
pictures at reduced network bandwidths. The camera adheres to IP66 standards and can be powered through PoE.

Dimensions






GV-ADR2701 May 7, 2018
- 2 -
Specifications
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.02 Lux
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm

Maximum Aperture F/2.2

Mount M12

Horizontal FOV 105.2°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 1 IR LED

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Main Stream 1920 x 1080 (Default)

Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288, 352 x 288

Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 352 x 288

Frame Rate
25 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation

Network

Interface 10/100 Ethernet

Protocol
DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, RTP, RTSP, SMTP, SIP, TCP, UDP,
ONVIF (Profile S)

Mechanical

Temperature Detector No

Pan 0° ~ 360°
Camera Angle
Adjustment
Tilt 0° ~ 68°

Power DC Jack (DC 12V, 1.25A), PoE

Connectors
Ethernet RJ ‐ 45 connector

General

Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 5 W

Dimensions Ø 109 x 81 mm (Ø4.3” x 3.2”)

Weight 0.3 kg (0.66 lb)

Ingress Protection IP66

Regulatory FCC, UL, CE, RoHS compliant






GV-ADR2701 May 7, 2018
- 3 -
Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language English

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Firefox, Safari), Mobile App

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐ADR2701 IR Mini Fixed Rugged IP Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name Details
GV ‐Mount213 Wall Box Mount


Dimensions: Ø 109 x 39 mm
(4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV ‐PA191 Power over
Ethernet (PoE)
Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers and types of

ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
