GV-ABL8712
Description
GV-ABL8712 August 1, 2018 - 1 - GV-ABL8712 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera * 1/2" progressive scan super low lux CMOS sensor * Min. illumination at 0.003 lux * Triple streams from H.265, H.264 or MJPEG * Up to 15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 * Motorized varifocal lens for r emote focus / zoom adjustment * Intelligent IR * IR distance up ...
Warning! Product withdrawn from production!
Replacement product: GV-TBL8710
Replacement product code: 84-TBL8710-0010
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-ABL8712 August 1, 2018
- 1 -

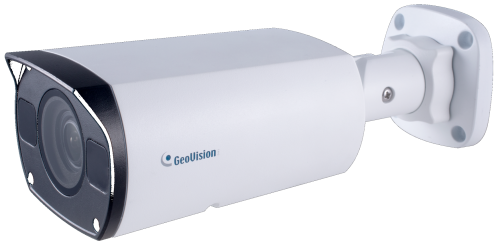

GV-ABL8712 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
* 1/2" progressive scan super low lux CMOS sensor
* Min. illumination at 0.003 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 15 fps at 3840 x 2160,
30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
* Motorized varifocal lens for r emote focus / zoom adjustment
* Intelligent IR
* IR distance up to 50 m (164 ft)
* Day and night function (with removable IR ‐cut filter)
* Vandal resistance (IK10)
* Ingress protection (IP67)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for lo cal
storage
* Two ‐way audio
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tampering Alarm
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant
Introduction
The Bullet IP Camera is an outdoor network camera equipped with an automatic IR ‐cut filter and an IR LED for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. With its motorized varifocal lens, the us er can zoom and focus the camera from the Web interface. The
GV ‐ABL8712 adheres to IP67 standard, and can be powered through PoE. The camera is capable of providing a color live view not
only in near darkness but also under contrasting light intensities with its super low lux CMOS imag e sensor and WDR pro.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-ABL8712 August 1, 2018
- 2 -
Dimensions
Specifications
Camera
Image Sensor 1/2" progressive scan super low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.003 Lux
Minimum
Illumination
IR On 0 Lux
Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 8 MP
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.8 ~ 12 mm
Maximum Aperture F/1.4
Mount Ø14 mm
Horizontal FOV 114.8 ° ~ 47.3°
Focus Auto / Manual
Zoom 4.3x Optical Zoom
Operation
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 50 m (164 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Main Stream 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288
Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288
GV-ABL8712 August 1, 2018
- 3 -
Frame Rate
15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1440 / 2560 x 1440 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Audio Compression G.711
Audio Support Two ‐way Audio
Network
Interface 10/100 Ethernet
Protocol
DNS, DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, PPPoE, RTP,
RTCP, RTSP, SIP, SMTP, SSL, TCP/IP, UDP, ONVIF (Profile S)
Mechanical
Pan
Tilt
Camera Angle
Adjustment
Rotate
Fixed
Power DC Jack (DC 12V, 1.25A), PoE
Ethernet RJ ‐ 45
Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply.
Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.
Connectors
TV Out BNC Connector
General
Operating Temperature ‐35°C ~ 60°C ( ‐22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 10 W
Dimensions 253.4 x 86 x71.1 mm (9.98” x 3.4” x 2.8”)
Weight 0.58 kg (1.28 lb)
Ingress Protection IP67
Vandal Resistance IK10
Regulatory FCC, UL, CE, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V17.1), GV ‐Control Center (V3.5.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway (V1.4.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
Packing List
1. Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card
GV-ABL8712 August 1, 2018
- 4 -
Accessories
Model No. Name
Details
GV ‐Mount503
Wall Mount Bracket
Dimensions: 125 x 125 x 55 mm (4.9” x4.9”
x2.2”)
Weight: 0.74 kg (1.63 lb)
GV ‐PA191
Power over Ethernet
(PoE) Adapter
The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for IP
devices. The GV ‐POE Switch is available in various models with different numbers and
types of ports.
Power Adapter
Contact our sales representatives for the countries and areas supported.
