GV-ABL4712

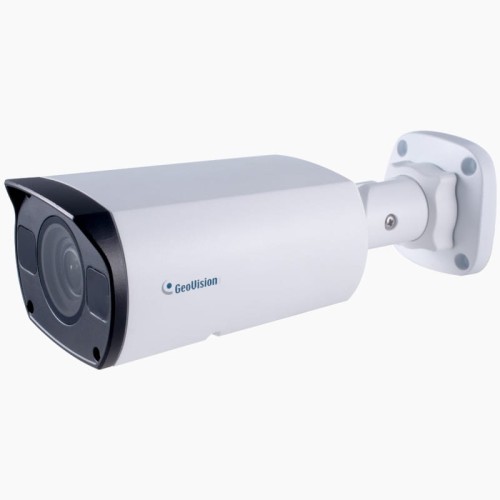

GV-ABL4712 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Bullet IP Camera          • 1/3" progressive scan low lux CMOS sensor  • Min. illumination at 0.01 lux  • Triple streams from H.265, H.264 or MJPEG  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at  2048 x 1520  • Motorized varifocal lens for remote focus / zoom adjustment  • Intelligent IR  • IR distance up to 30 m (98.4 ft)  ...

Warning! Product withdrawn from production!

Replacement product: GV-ABL4711

Replacement product code: 84-ABL471W-1010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-ABL4712 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Bullet IP Camera




• 1/3" progressive scan low lux CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at
2048 x 1520
• Motorized varifocal lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 30 m (98.4 ft)
• Day and night function (with removable IR ‐cut filter)
• Vandal Resistance (IK10)
• Ingress protection (IP67)
• Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
• Two ‐ way audio
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Tampering Alarm
• Text overlay
• Privacy mask
• ONVIF (Profile S) conformant

Introduction
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV ‐ABL4712 adheres to IP67 standard, and can be powered through PoE.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-ABL4712 August 16, 2018
- 1 -

Dimensions





Specifications
Camera
Image Sensor 1/3" progressive scan low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.01 Lux

Minimum
Illumination
IR On 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel 4 MP

Day / Night Yes (with removable IR ‐ cut filter)

Lens Type Motorized varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 27 ° ~ 91°

Focus Auto / Manual

Zoom 4.3x Optical Zoom

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288

Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

GV-ABL4712 August 16, 2018
- 2 -

Frame Rate
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Audio Compression G.711

Audio Support Two ‐ way Audio

Network

Interface 10/100 Ethernet

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, PPPoE, RTP, RTSP, SMTP,
SIP, TCP/IP, UDP, ONVIF (Profile S)

Mechanical

Pan

Tilt
Camera Angle
Adjustment
Rotate
Fixed
Power DC Jack, PoE

Ethernet RJ ‐ 45

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports active microphones.

Digital I/O 4 ‐ pin terminal block pitch 3.5 mm (0.14”)

Connectors
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card types are not supported.

General

Operating Temperature ‐35°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 9 W

Dimensions 253.4 x 86 x71.1 mm (9.98” x 3.4” x 2.8”)

Weight 0.58 kg (1.28 lb)

Ingress Protection IP67

Vandal Resistance IK10

Regulatory FCC, UL, CE, RoHS compliant

Web Interface

Installation Management Web‐ based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish

Applications

Software Supported
GV ‐DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.4.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐Eye for iOS and Android

Live Viewing Browser (IE, Firefox, Safari), Mobile App

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card
GV-ABL4712 August 16, 2018
- 3 -

Accessories
Model No. Name Details

GV ‐Mount503
Wall Mount Bracket


Dimensions: 125 x 125 x 55 mm (4.9” x4.9”
x2.2”)
Weight: 0.74 kg (1.63 lb)

GV ‐PA191
Power over Ethernet
(PoE) Adapter


The GV ‐ PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch

The GV ‐ POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐ POE Switch is available in various models with different numbers and

types of ports.

Power Adapter

Contact our sales representatives for the countries and areas supported.
