GV-ABL4701 August 3, 2018  - 1 -  GV-ABL4701 4MP H.265 Low Lux WDR IR Bullet IP Camera        * 1/3" progressive scan low lux CMOS sensor  * Min. illumination at 0.02 lux  * Triple streams from H.265, H.264 or MJPEG  * Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at  2048 x 1520  * Intelligent IR  * IR distance up to 30 m (98. 4 ft)  * Day and night function (with ...

Warning! Product withdrawn from production!

Replacement product: GV-ABL4703

Replacement product code: 84-ABL473W-0010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-ABL4701 August 3, 2018
- 1 -

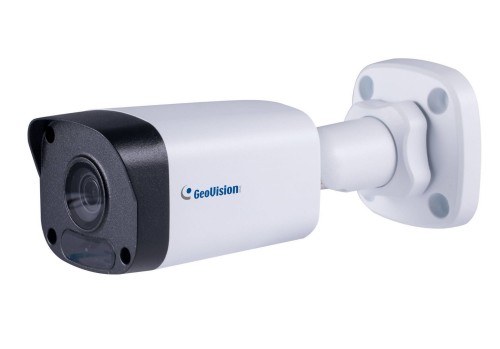

GV-ABL4701 4MP H.265 Low Lux WDR IR Bullet IP Camera



* 1/3" progressive scan low lux CMOS sensor
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at
2048 x 1520
* Intelligent IR
* IR distance up to 30 m (98. 4 ft)
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP66)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant

Introduction

The Bullet IP Camera is an outdoor network camera equipped with an automatic IR ‐cut filter and an IR LED for day and night
surveillance. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera adheres to IP66 standards and can be powered through PoE.

Dimensions







GV-ABL4701 August 3, 2018
- 2 -
Specifications
Camera
Image Sensor 1/3" progressive scan low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 4.0 mm

Maximum Aperture F/1.8

Mount M12

Horizontal FOV 78°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 1 IR LED

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288

Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Frame Rate
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Network

Interface 10/100 Ethernet

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, PPPoE, RTP, RTSP,
SMTP, SIP, TCP/IP, UDP,ONVIF (Profile S)

Mechanical

Temperature Detector No

Power DC Jack (DC 12V, 1.25A), PoE

Connectors
Ethernet RJ ‐ 45 connector

General

Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 5.5 W

Dimensions 162.9 x 62.4 x 62.7 mm (6.4” x 2.5” x 2.5”)

Weight 0.25 kg (0.55 lb)

Ingress Protection IP66

Regulatory FCC, UL, CE, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility





GV-ABL4701 August 3, 2018
- 3 -
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.5.0.0),
GV ‐Recording Server / Video Gateway (V1.4.0.0), GV ‐Redundant / Failover Server
(V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Firefox, Safari), Mobile App


Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐ABL4701 IR Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name
Details

GV ‐Mount502 Wall Mount Bracket




Dimensions: 93 x 93 x 39 mm (3.66” x 3.66” x
1.53”)
Weight: 0.235 kg (0.52 lb)


GV ‐PA191 Power over Ethernet
(PoE) Adapter



The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers and

types of ports.

Power Adapter
Contact our sales representatives for the countries and areas supported.
