GV-ABL2703

GV-ABL2703 January 17, 2020  - 1 -  GV-ABL2703 Series 2MP H.265 Low Lux WDR IR Bullet IP Camera      * 1/2.7" progressive scan low lux CMOS sensor  * Min. illumination at 0.02 lux  * Triple streams from H.265, H.264 or MJPEG  * Up to 30 fps at 1920 x 1080  * Intelligent IR  * IR distance up to 30 m (98.4 ft)  * Day and night function (with removable IR ‐ cu t filter)  * Ingress protection (IP67)  * DC 12V / PoE (IEEE 802.3af)  * Wide Dynamic Range (WDR)  * ...

Warning! Product withdrawn from production!

Replacement product: GV-TBL2705

Replacement product code: 84-TBL275W-0010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-ABL2703 January 17, 2020
- 1 -

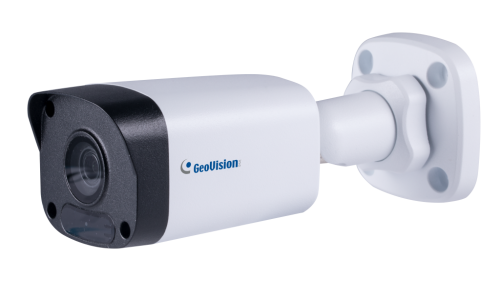

GV-ABL2703 Series 2MP H.265 Low Lux WDR IR Bullet IP Camera


* 1/2.7" progressive scan low lux CMOS sensor
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and night function (with removable IR ‐ cu t filter)
* Ingress protection (IP67)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* ONVIF (Profile S, T) conformant


Introduction

The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. The camera adheres to IP67 standards and can be powered through PoE.

Models
Model Iris Focal Length (mm) Horizontal FOV
Maximum Aperture Image Format
GV ‐ABL2703 ‐ 0F 4 mm 86°
GV ‐ABL2703 ‐ 1F
Fixed
6 mm 55°
F/2.0 1/2.7”

Dimensions







GV-ABL2703 January 17, 2020
- 2 -
Specifications
Camera GV ‐ABL2703 ‐ 0F
GV ‐ABL2703 ‐ 1F
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)

Color 0.02 Lux (F2.0, AGC ON)

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel 2 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 4 mm 6 mm

Maximum Aperture F/2.0

Mount M12

Horizontal FOV 86° 55°

Focus

Zoom
Operation
Iris
Fixed
IR LED Quantity 1 IR LED

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Main Stream 1920 x 1080 (Default), 1280 x 720

Sub Stream 1280 x 720, 704 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Video Resolution
Third Stream
(Closed by Default)
704 x 576, 704 x 288, 640 x 360, 352 x 288

Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Video Analytics Motion Detection, Tampering Alarm

Image Setting Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS,
RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile S, T)

Mechanical

Temperature Detector No

Pan 0° ~ 360°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack, PoE

Connectors
Ethernet RJ ‐ 45 connector

General

Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 10% ~ 90% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 4.5 W

Dimensions 162.9 x 62.4 x 62.7 mm (6.4” x 2.5” x 2.5”)

Weight 0.37 kg (0.81 lb)

Ingress Protection IP67

Regulatory FCC, CE, RoHS compliant


GV-ABL2703 January 17, 2020
- 3 -
Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language Czech, English, French, German, Italian, Russian, Traditional Chinese

Applications

Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.2.0), GV ‐Control Center (V3.5.1), GV ‐Edge
Recording Manager Windows version (V1.4.0), GV ‐Recording Server / Video Gateway
(V1.4.2), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome, Firefox), Mobile App



Note:
1. It is required to apply patch files to some or all of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐ABL2703 IR Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name Details

GV ‐Mount300 ‐ 2 Convex Corner Mount


Dimensions: 137 x 233 x 160 mm (5.4” x
9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)

GV ‐Mount310 ‐ 2 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm (2.6”
x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)

GV ‐Mount502 Wall Mount Bracket


Dimensions: 93 x 93 x 39 mm (3.66” x
3.66” x 1.53”)
Weight: 0.235 kg (0.52 lb)


GV ‐PA191 Power over Ethernet (PoE)
Adapter


GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.

GV ‐ POE Switch

GV ‐POE Switch is designed to provide power along with network connection for
IP devices. GV ‐ POE Switch is available in various models with different numbers
and types of ports.

Power Adapter
Contact our sales representatives for the countries and areas supported.
