GV-ABL2701
Description
GV-ABL2701 August 3, 2018 - 1 - GV-ABL2701 2MP H.265 Low Lux WDR IR Bullet IP Camera * 1/2.7" progressive scan low lux CMOS sensor * Min. illumination at 0.02 lux * Triple streams from H.265, H.264 or MJPEG * Up to 25 fps at 1920 x 1080 * Intelligent IR * IR distance up to 30 m (98.4 ft) * Day and night function (with removable IR ‐ cu t filter) * Ingress protection (IP66) * DC 12V / PoE ...
Warning! Product withdrawn from production!
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-ABL2701 August 3, 2018
- 1 -

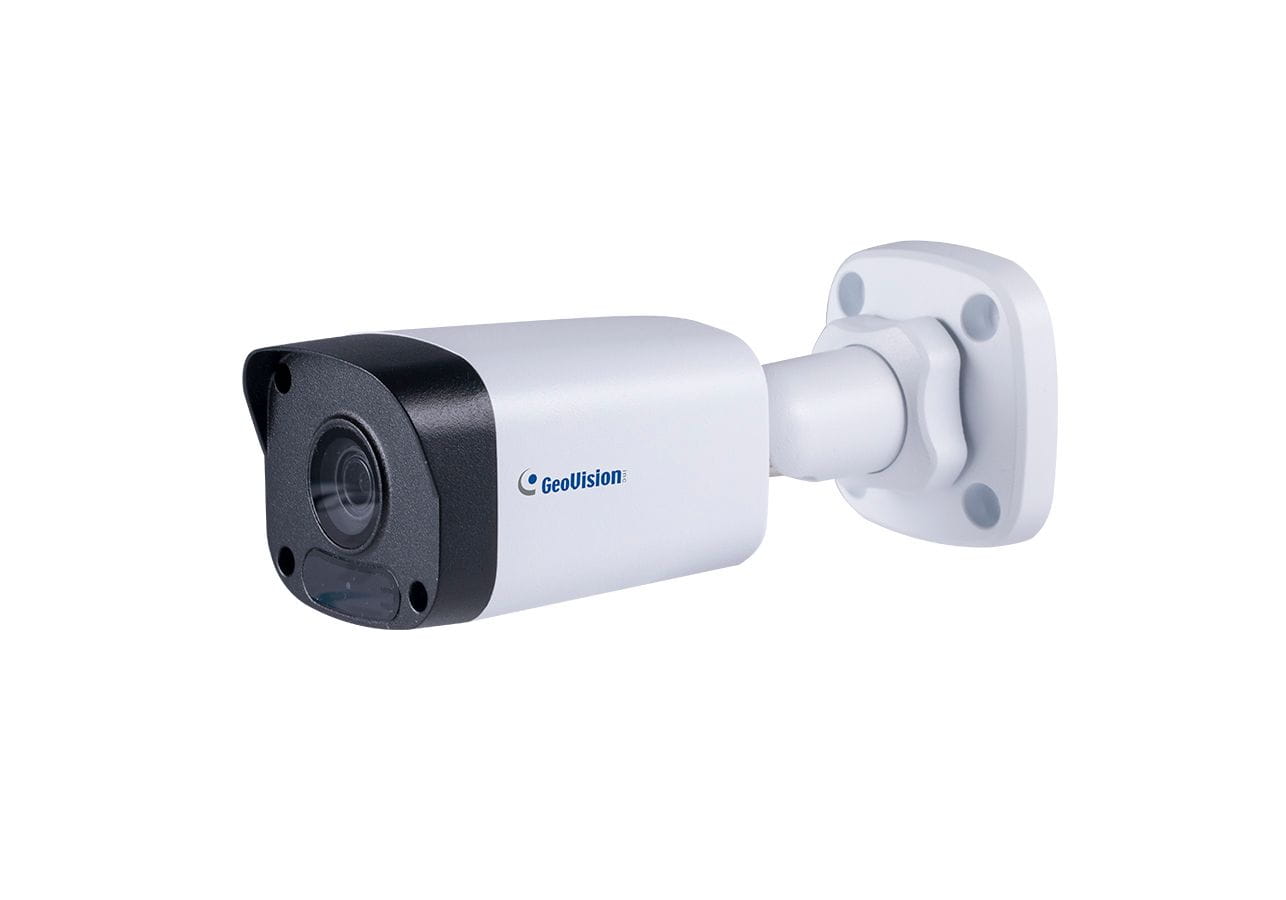

GV-ABL2701 2MP H.265 Low Lux WDR IR Bullet IP Camera
* 1/2.7" progressive scan low lux CMOS sensor
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 25 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and night function (with removable IR ‐ cu t filter)
* Ingress protection (IP66)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant
Introduction
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. The camera adheres to IP66 standards and can be powered through PoE.
Dimensions
GV-ABL2701 August 3, 2018
- 2 -
Specifications
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 0.02 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Yes
Dynamic Range Up to 72 dB
Lens
Megapixel Yes
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Fixed
Focal Length 4.0 mm
Maximum Aperture F/1.8
Mount M12
Horizontal FOV 80.8°
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Main Stream 1920 x 1080 (Default)
Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288 ,352 x 288
Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 352 x 288
Frame Rate
25 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation
Network
Interface 10/100 Ethernet
Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, PPPoE, RTP, RTSP,
SMTP, SIP, TCP/IP, UDP, ONVIF (Profile S)
Mechanical
Temperature Detector No
Power DC Jack, PoE
Connectors
Ethernet RJ ‐ 45 connector
General
Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 5 W
Dimensions 162.9 x 62.4 x 62.7 mm (6.4” x 2.5” x 2.5”)
Weight 0.25 kg (0.55 lb)
Ingress Protection IP66
Regulatory FCC, UL, CE, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
GV-ABL2701 August 3, 2018
- 3 -
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking
Language Czech, English, French, Italian, German, Russian
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V16.11.0.0), GV ‐Control Center (V3.5.0.0),
GV ‐Edge Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
Packing List
1. GV ‐ABL2701 IR Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card
Accessories
Model No. Name
Details
GV ‐Mount502 Wall Mount Bracket
Dimensions: 93 x 93 x 39 mm (3.66” x 3.66” x
1.53”)
Weight: 0.235 kg (0.52 lb)
GV ‐PA191 Power over Ethernet
(PoE) Adapter
The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network connection for IP
devices. The GV ‐POE Switch is available in various models with different numbers and
types of ports.
Power Adapter
Contact our sales representatives for the countries and areas supported.
