GV-650B October 14, 2016
-1-

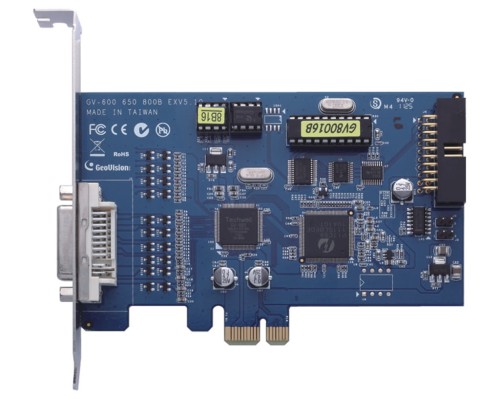

GV ‐ 650B Card provides up to 16 video channels and 4 audio channels, recording up to 60 / 50 fps (NTSC / PAL) in total with H.264
software compression.
Specifications
GV ‐ 650B
GV ‐ 650B X 2
Interface
PCI ‐ E (x1)
PCI ‐ E (x1) x 2,
PCI x 1 + PCI ‐ E (x1) x 1
Input Type DVI
Video Input 4, 8, 16 Cams 8, 12, 16, 20, 24, 32 Cams
Audio Input 4 Channels 8 Channels
NTSC
4 ‐ port: 60 fps
16‐ port: 60 fps
4+4 port: 120 fps
16+16 port: 120 fps
CIF
PAL
4 ‐ port: 50 fps
16‐ port: 50 fps
4+4 port: 100 fps
16+16 port: 100 fps
NTSC
4 ‐ port: 60 fps
16‐ port: 30 fps
4+4 port: 120 fps
16+16 port: 60 fps
Recording
Rate
D1
PAL
4 ‐ port: 50 fps
16‐ port: 25 fps
4+4 port: 100 fps
16+16 port: 50 fps
NTSC
4 ‐ port: 60 fps
16‐ port: 60 fps
4+4 port: 120 fps
16+16 port: 120 fps
CIF
PAL
4 ‐ port: 50 fps
16‐ port: 50 fps
4+4 port: 100 fps
16+16 port: 100 fps
NTSC
4 ‐ port: 60 fps
16‐ port: 30 fps
4+4 port: 120 fps
16+16 port: 60 fps
Display Rate
D1
PAL
4 ‐ port: 50 fps
16‐ port: 25 fps
4+4 port: 100 fps
16+16 port: 50 fps
NTSC 704x480, 704x480 De ‐interlace, 640x480, 640x480 De ‐interlace, 352x240, 320x240
Video
Resolution
PAL 704x576, 704x576 De ‐interlace, 640x480, 640x480 De ‐interlace, 352x288, 320x240
Video Compression Format Geo MPEG4, Geo H264
Audio Format 16 kHz / 16‐bit, 32 kHz / 16‐bit
GV ‐NET/IO Card Support Yes
Dimensions (W x H) PCI ‐ E 120 x 82 mm / 4.7 x 3.2 in
Installation Guide GV ‐ 650B
Note:
1. GV ‐ 650B is currently not compatible with VIA series and ATI series chipset motherboards.
2. 8 ‐ port has the same recording rate and display rate as 16‐port.
3. Specifications are subject to change without notice.

GV-650B October 14, 2016
-2-
Minimum System Requirements For One Card, CIF Resolution
32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008

OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012

CPU Pentium 4, 2.4 GHz

RAM 2 x 1 GB Dual Channels

HDD 80 GB

Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color

DirectX 9.0c

Minimum System Requirements For Two Cards, CIF Resolution

32‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008

OS Supported
64‐bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012

CPU Pentium 4, 2.8 GHz with Hyper Threading

RAM 2 x 1 GB Dual Channels

HDD 160 GB

Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color

DirectX 9.0c


Packing List
1. GV ‐ 650B Card x 1
2. 1 ‐ 16 Cams with 4 ‐ Port Audio DVI ‐Type Cable x 1 / 1 ‐ 8 Cams with 4 ‐ Port Audio DVI ‐Type Cable x 1 / 1 ‐ 4 Cams with 4 ‐Port Audio
DVI ‐Type Cable x 1
3. Hardware Watchdog Jumper Wire x 1
4. Software DVD x 1

Note: The 1 ‐ 16 Cams with 4 ‐Port Audio DVI ‐Type cable is supplied with GV ‐ 650B card with 16 video inputs, the 1 ‐ 8 Cams with 4 ‐Port
Audio DVI ‐Type cable is supplied with GV ‐650B card with 8 video inputs, while the 1 ‐ 4 Ca ms with 4 ‐Port Audio DVI ‐Type cable is
supplied with GV ‐650B card with 4 video inputs.

Accessories
4 cam video cable 8 cam video cable 16 cam video cable
