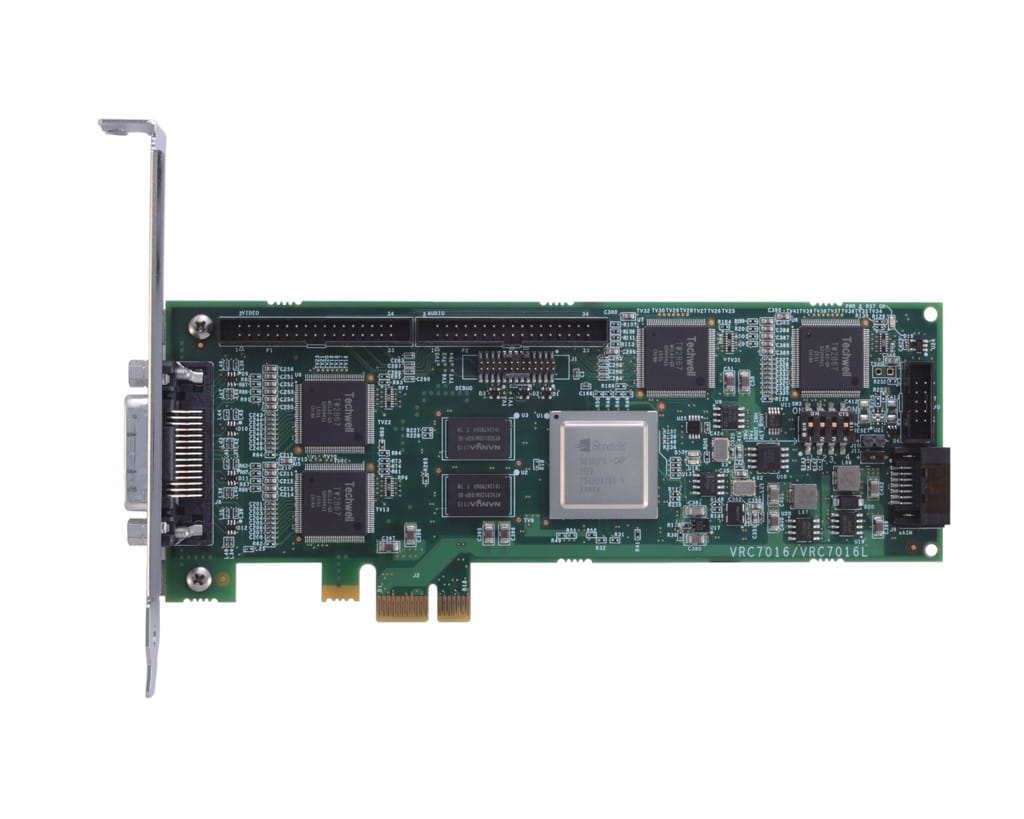

GV-5016

GV-5016 October 14, 2016          Specifications   GV ‐ 5016 GV ‐ 5016 x 2    Interface PCI ‐ E (x1) PCI ‐ E (x1) x 2    Input Type LFH    Video Input ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-5016 October 14, 2016




Specifications
GV ‐ 5016 GV ‐ 5016 x 2

Interface PCI ‐ E (x1) PCI ‐ E (x1) x 2

Input Type LFH

Video Input 16 Cams 32 Cams

Audio Input 16 Channels 32 Channels

NTSC 480 fps 960 fps

Recording Rate (D1)
PAL 400 fps 800 fps

NTSC 480 fps 960 fps

Display Rate
PAL 400 fps 800 fps

H/W 704 x 480 704 x 480

NTSC
S/W 352 x 240 352 x 240

H/W 704 x 576 704 x 576

Video Resolution
PAL
S/W 352 x 288 352 x 288

S/W
Geo MPEG4, Geo H264
Video Compression
Format
H/W
H264
Audio Format 16 kHz / 16‐ bit, 32 kHz / 16‐ bit)

Bit Rate Range 5M ~ 10M

GV ‐ Net I/O Card Support Yes (Note 4)

GV ‐ Multi Quad Card Support No

GV ‐Loop Through Card Support No

Dimensions (W x H) 168 x 70 mm / 6.61 x 2.75 in

Installation Guide GV ‐ 5016

Note:
1. GV ‐ 5016 does not support the TV ‐Out function.
2. GV ‐ 5016 is currently not compatible with VIA series and ATI series chipset motherboards.
3. GV ‐ 5016 is currently not compatible with Intel 9‐series chipset motherboards.
4. To work together with GV ‐ 5016, GV ‐NET/IO Card V3.1 must be set in the I/O Box Mode and connected to the PC through USB or DB9.
5. Specifications are subject to change without notice.







GV-5016 October 14, 2016

Minimum System Requirements For One Card
32‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Core 2 Quad, 2.4 GHz
RAM 2 x 1 GB Dual Channels
HDD 500 GB
Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color
DirectX 9.0c
Minimum System Requirements For Two Cards
32‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012
CPU Core i5 650, 3.20 GHz
RAM 2 x 1 GB Dual Channels
HDD 1 TB
Graphics Card AGP or PCI ‐Express, 800 x 600 (1280 x 1024 recommended), 32‐bit color
DirectX 9.0c






Packing List
1. GV ‐ 5016 Card x 1
2. 1‐ 16 LFH ‐Type Audio and Video Cable x 1
3. Hardware Watchdog Jumper Wire x 1
4. USB Dongle x 1
5. Software DVD x 1
