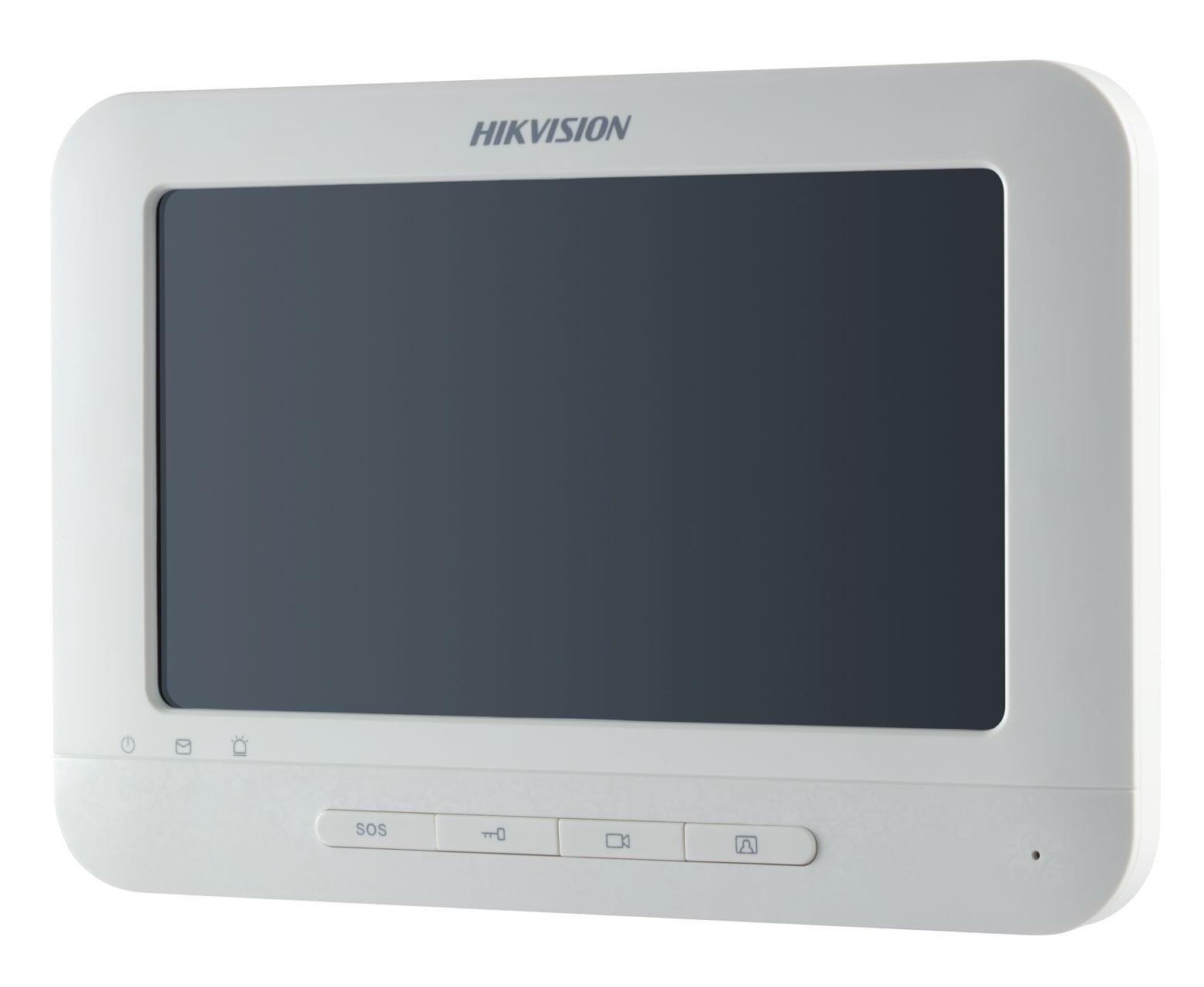

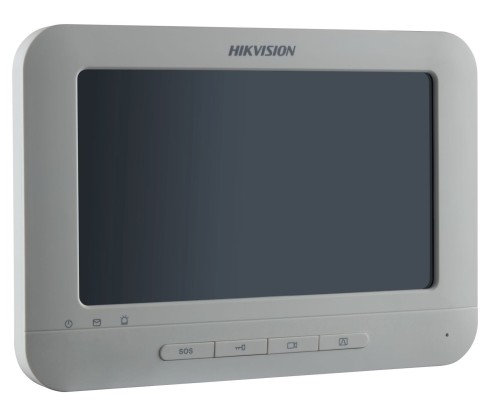

DS-KH6310-W

DS-KH6310-W  DS-KH6310         Video intercom function   Remote unlocking function   Resident-to-resident audio call   Live view of HD video   Voice message function   Auto-respond and no disturbing mode   Noise suppression and echo cancellation   8-ch zone alarm and SOS calling function   Community notice   Convenient installation with the bracket, batch setting, and power over video/audio  distributor (DS-KAD606, DS-KAD612)    Indoor Station    MAIN FEATURES    DS-KH6310-W/DS-KH6310    AVAILABLE MODELS      Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com  2                                  Model  Parameters  DS-KH6310-W DS-KH6310  Video Intercom Indoor Station with 7-Inch Touch Screen  System  Parameters  Processor High-Performance Embedded SOC Processor  Operation System Embedded Linux Operation System  Display  Parameters  Display Screen 7-Inch Colorful TFT LCD  Display Resolution 800 x 480  Operation Method Capacitive Touch Screen, Physical Key  Operation Interface ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-KH6310-W
DS-KH6310



 Video intercom function
 Remote unlocking function
 Resident-to-resident audio call
 Live view of HD video
 Voice message function
 Auto-respond and no disturbing mode
 Noise suppression and echo cancellation
 8-ch zone alarm and SOS calling function
 Community notice
 Convenient installation with the bracket, batch setting, and power over video/audio
distributor (DS-KAD606, DS-KAD612)

Indoor Station

MAIN FEATURES

DS-KH6310-W/DS-KH6310

AVAILABLE MODELS


Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com
2
















Model
Parameters
DS-KH6310-W DS-KH6310
Video Intercom Indoor Station with 7-Inch Touch Screen
System
Parameters
Processor High-Performance Embedded SOC Processor
Operation System Embedded Linux Operation System
Display
Parameters
Display Screen 7-Inch Colorful TFT LCD
Display Resolution 800 x 480
Operation Method Capacitive Touch Screen, Physical Key
Operation Interface Flattened UI Operation Interface
Audio
Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Compression
Standard
G.711 U
Audio Compression
Rate
64 Kbps
Audio Quality
Noise Suppression and Echo Cancellation
Supported
Network
Parameters
Ethernet 10M/100M Self-Adaptive Ethernet
Wireless Internet Wi-Fi 802.11 b/g/n

TYPICAL APPLICATOIN

SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch

Video/Audio
Distributor



Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com
3

Model
Parameters
DS-KH6310-W DS-KH6310
Video Intercom Indoor Station with 7-Inch Touch Screen
Network Protocol TCP/IP, SNMP, SIP, RTSP
Alarm
Parameters
Alarm Input 8-ch Alarm Input Sensor
Device
Interfaces
Network Access 1 RJ45 10M/100M Self-Adaptive Ethernet Access
RS485 1; RS-485 Half-Duplex
I/O Output 1
Other
Parameters
Power Supply
Power Over Network Cable (DS-KAD606,
DS-KAD612)/12 V DC
Power Consumption ≤10W
Working Temperature -10° C to +55° C (14° F to 131° F)
Working Humidity 10% - 90%
Dimension (L x W x H) 195.8 mm x 132.8 mm x 17.5 mm
Certification FCC, CE
