DS-KAB01
Description
DS-KAB01 Protective Shield Features and Notes Stainless steel material Convenient design available for the wall mounting of the villa door station (DS-KV8X02-IM) No insulation Available Model DS-KAB01 Specifications Parameter Model DS-KAB01 Housing material Stainless Steel SUS201 Inner-shell material SGCC Working temperature -30° C to +70° C (-22° F to 158° F) Working humidity 10% to 90% Dimension (L x W x H) 212 mm x 115 mm x 80 mm (8.35" x 4.53" x 3.15") Dimension Front View Slide View Rear View Installation 0100001061010...
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:

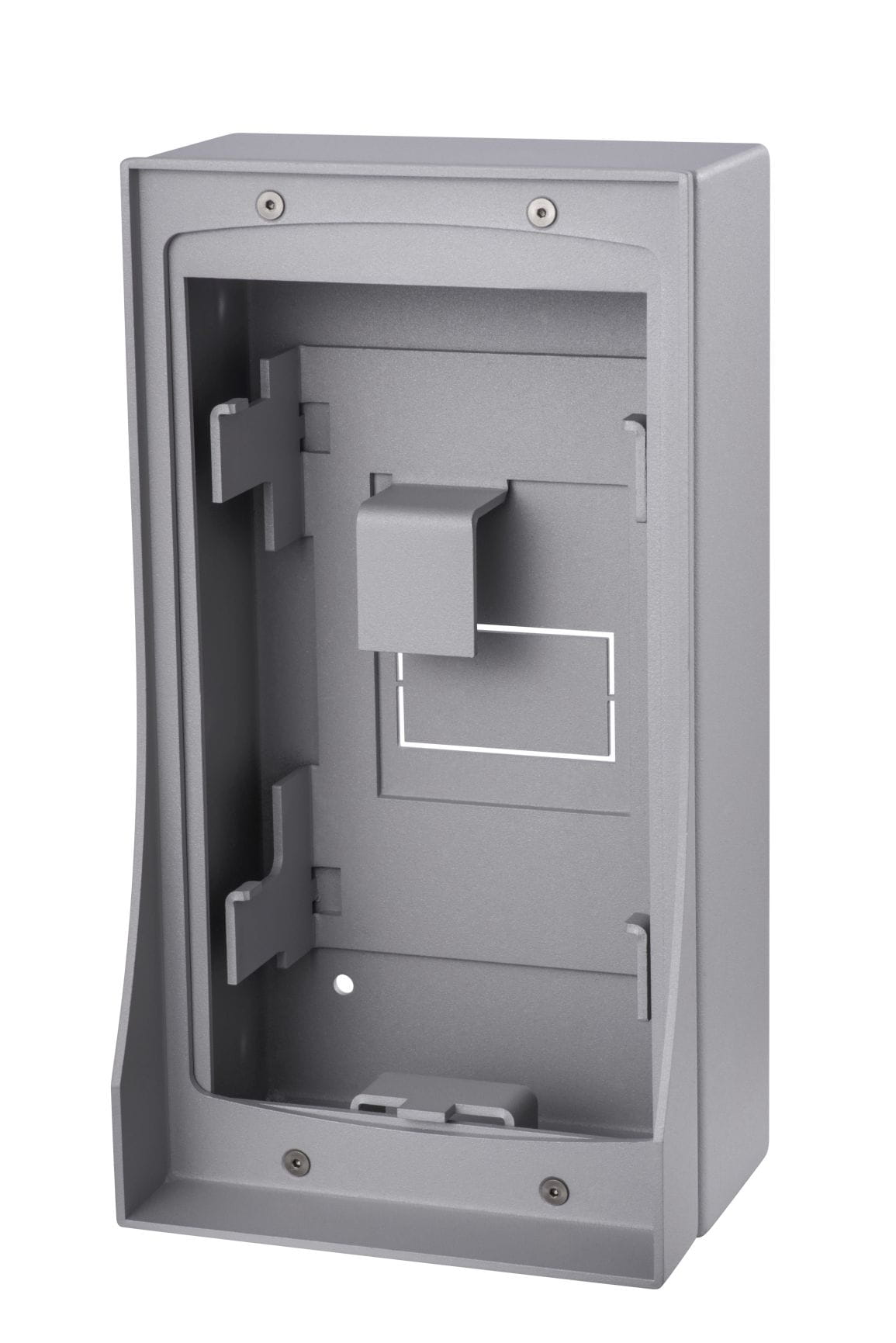

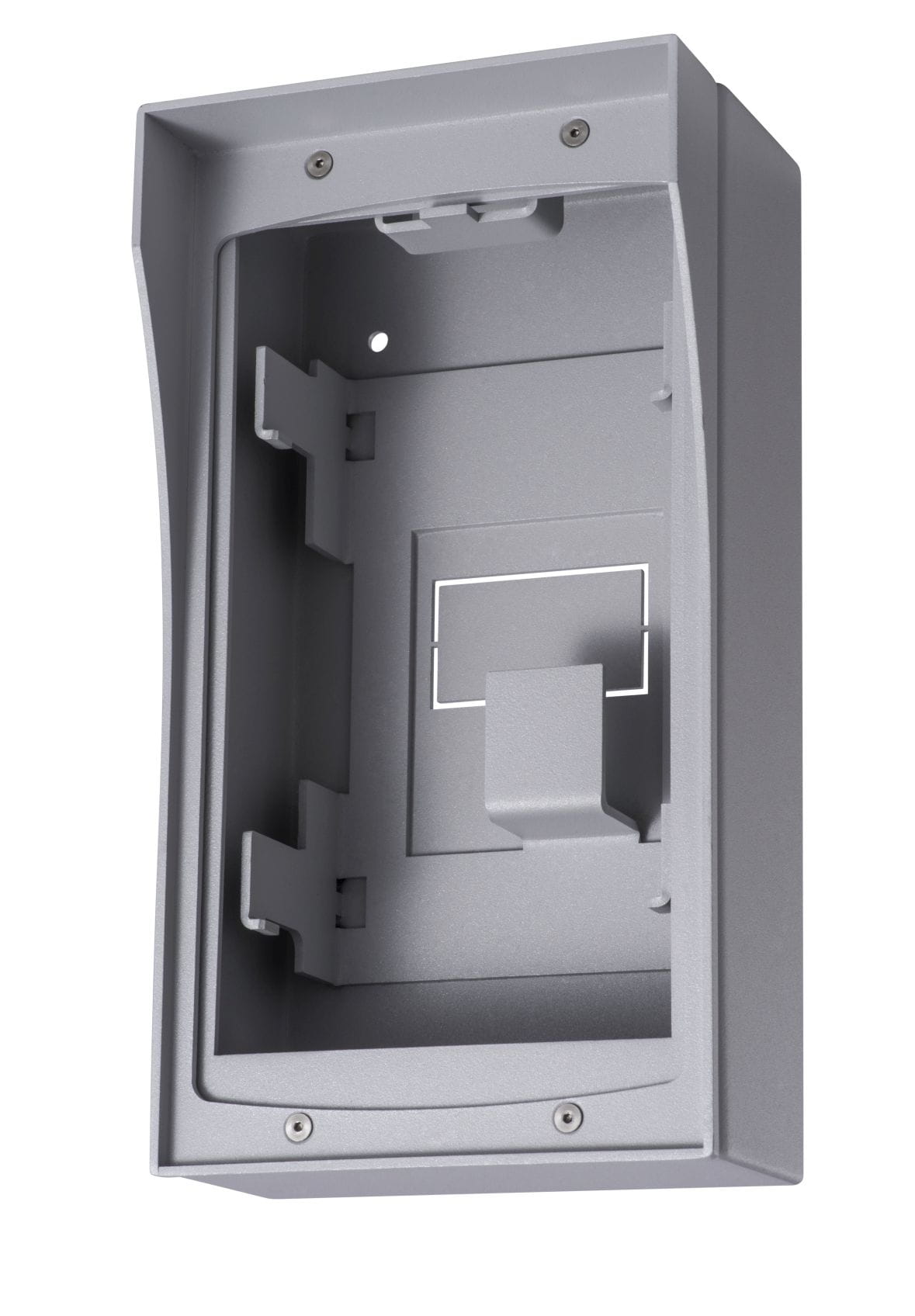

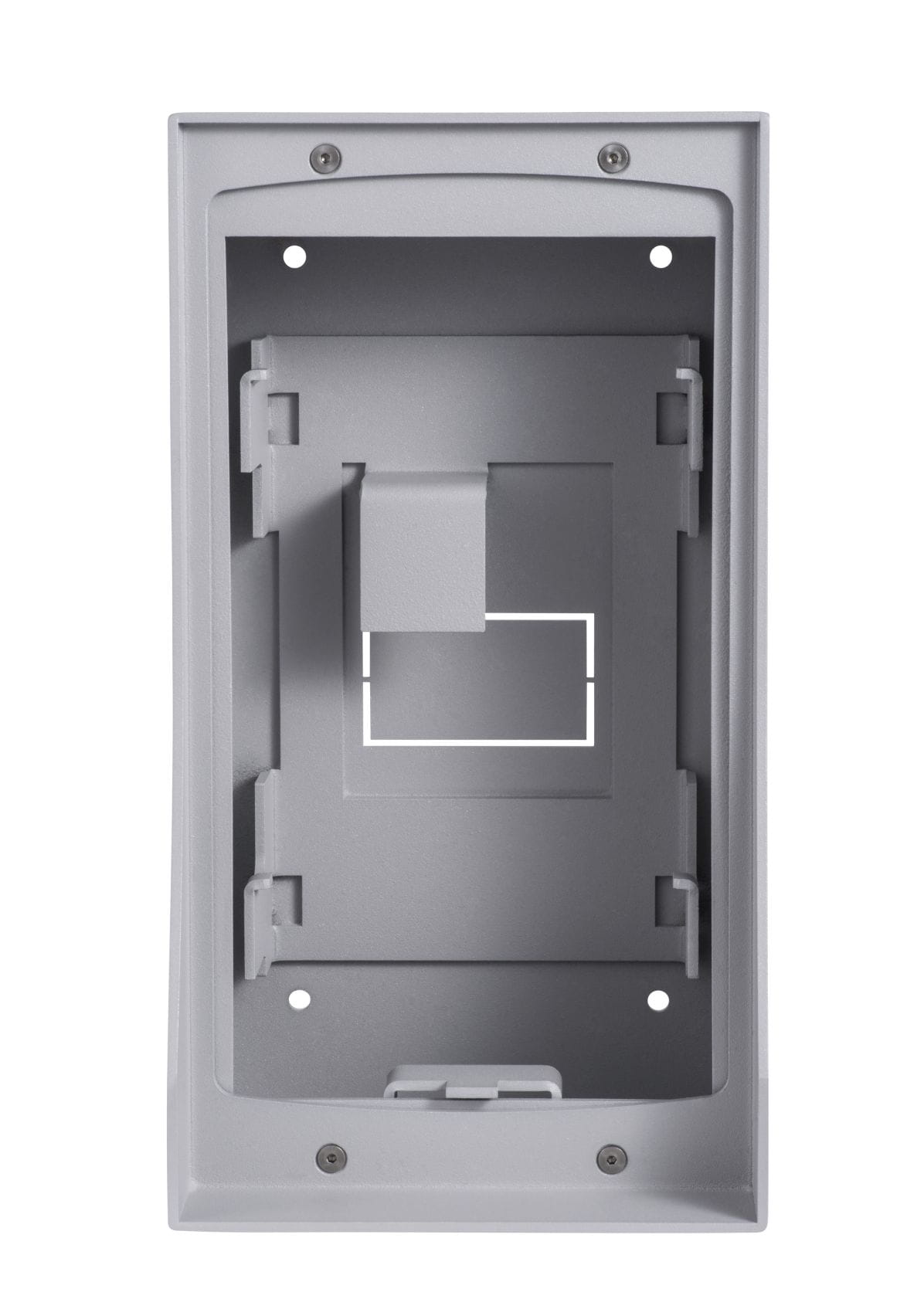

DS-KAB01
Protective Shield
Features and Notes
Stainless steel material
Convenient design available for the wall mounting of
the villa door station (DS-KV8X02-IM)
No insulation
Available Model
DS-KAB01
Specifications
Parameter Model DS-KAB01
Housing material Stainless Steel SUS201
Inner-shell material SGCC
Working temperature -30° C to +70° C (-22° F to 158° F)
Working humidity 10% to 90%
Dimension (L x W x H) 212 mm x 115 mm x 80 mm (8.35" x 4.53" x 3.15")
Dimension
Front View Slide View Rear View
Installation
0100001061010
