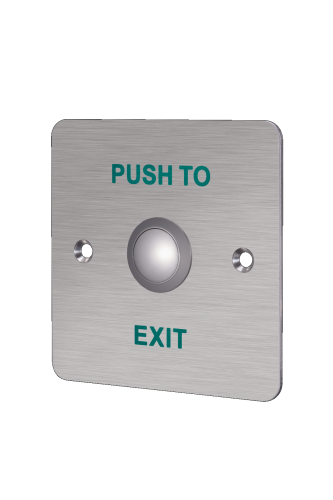

DS-K7P01

Availability: 51-100
Price: €18.96 18.96
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 302900559

Description

Exit Button www.hikvision.com  1             Dimension (LxWxH): 86x86x28.9mm(3.39x3.39x1.14");   Structure: aluminum alloy panel, metal button;   Current Rating: 3A@36VDC Max;   Output Contact: NO/NC/COM Contact;   Aging Test: already passed 500 thousand times aging test;   Suitable Doors: hollow doorframe and embedded-electric box;   Working Temperature: -10°C to +55°C (14°F to 131°F);   Working Humidity: 0 to 95% (relative humidity);   Panel: aluminum panel with sandblast;   Product Weight: 0.25kg (0.55lb).            DC  DC  +12V Yellow  Ground  White  Red (NO connection)  Fail-secure(chart1)  Release  button  Release  button  +12V red  GroundYellow(NC connection)  ELECTRIC LOCK  ELECTRIC LOCK  Fail-safe(chart2)  White  Installation  Dimension        Exit Button    Accessary of Magnetic Lock    DS-K7P01    DS-K7P01  Dimension and Installation    Features    Exit Button ...

Warranty: 24 mon.

Datasheet PDF


Text contents of PDF datasheet:

Exit Button www.hikvision.com
1





 Dimension (LxWxH): 86x86x28.9mm(3.39x3.39x1.14");
 Structure: aluminum alloy panel, metal button;
 Current Rating: 3A@36VDC Max;
 Output Contact: NO/NC/COM Contact;
 Aging Test: already passed 500 thousand times aging test;
 Suitable Doors: hollow doorframe and embedded-electric box;
 Working Temperature: -10°C to +55°C (14°F to 131°F);
 Working Humidity: 0 to 95% (relative humidity);
 Panel: aluminum panel with sandblast;
 Product Weight: 0.25kg (0.55lb).





DC
DC
+12V Yellow
Ground
White
Red (NO connection)
Fail-secure(chart1)
Release
button
Release
button
+12V red
GroundYellow(NC connection)
ELECTRIC LOCK
ELECTRIC LOCK
Fail-safe(chart2)
White
Installation
Dimension



Exit Button

Accessary of Magnetic Lock

DS-K7P01

DS-K7P01
Dimension and Installation

Features

Exit Button www.hikvision.com
2



 Dimension(LxWxH): 90x35x28.9mm(3.54x1.38x1.14");
 Structure: aluminum alloy panel, metal button;
 Current Rating: 3A@36VDC Max;
 Output Contact: NO/NC/COM Contact;
 Aging Test: already passed the 500 thousand times aging test;
 Suitable Doors: hollow doorframe and embedded-electric box;
 Working Temperature: -10°C to +55°C (14°F to 131°F);
 Working Humidity: 0 to 95% (relative humidity);
 Panel: aluminum panel with sandblast;
 Product Weight: 0.20kg (0.44lb).




DC
DC
+12V Yellow
Ground
White
Red (NO connection)
Fail-secure(chart1)
Release
button
Release
button
+12V red
GroundYellow(NC connection)
ELECTRIC LOCK
ELECTRIC LOCK
Fail-safe(chart2)
White
Installation
Dimension



DS-K7P02

DS-K7P02
Dimension and Installation

Features

Exit Button www.hikvision.com
3




 Dimension(LxWxH): 86x86x25.7mm(3.39x3.39x1.01");
 Input Voltage: DC12V;
 Working Current: 20mA(standby), 50mA(working current);
 Current Rating: 1A@30VDC,0.5A@125VAC;
 Output Contact: NO/NC/COM contact;
 Panel: aluminum panel;
 Aging Test: already passed 1 million times aging test;
 Suitable Doors: all kinds of narrow doorframes;
 Working Temperature: -20°C to +50°C (-4°F to 122°F);
 Working Humidity: 0 to 95% (relative humidity);
 Maximum Inductive Distance: 40 to 100mm(1.57 to 3.94")
(adjustable);
 LED Indicator Status: white/green/red LED, indicates
power-off/active/Standby;
 Product Weight: 0.15kg (0.33lb).










DS-K7P03

DS-K7P03
Dimension and Installation

Features

Exit Button www.hikvision.com
4




 T Dimension(LxWxH): 90x35x37.7mm(3.54x1.38x1.48");
 Input Voltage: DC12V;
 Working Current: 20mA(standby), 50mA(working current);
 Current Rating: 1A@30VDC,0.5A@125VAC;
 Output Contact: NO/NC/COM Contact;
 Panel: aluminum panel;
 Aging Test: already passed 1 million times aging test;
 Suitable Doors: all kinds of narrow doorframes;
 Working Temperature: -20°C to +50°C (-4°F to 122°F);
 Working Humidity: 0 to 95% (relative humidity);
 Maximum Inductive Distance: 40 to 100mm(1.57 to 3.94") (adjustable);
 LED Indicator Status: white/green/red LED, indicates
power-off/active/Standby;
 Product Weight: 0.12kg (0.26lb).











DS-K7P04

DS-K7P04
Dimension and Installation

Features

Exit Button www.hikvision.com
5




 Dimension(LxWxH): 86x50x44mm(3.39x1.97x1.73");
 Structure: stainless steel panel, metal button, metal bottom case;
 Current Rating: 3A@36VDC Max;
 Output Contact: NO/NC/COM contact;
 Aging Test: already passed 500 thousand times aging test;
 Accessories: equipped with metal bottom case;
 Suitable Doors: all kinds of doors;
 Working Temperature: -10°C to +55°C (14°F to 131°F);
 Working Humidity: 0 to 95% (relative humidity)
 Panel: brushed stainless steel panel;
 Bottom Case: polished zinc alloy with chromium electroplating;
 Product Weight: 0.14kg (0.31lb).










DS-K7P05

DS-K7P05
Dimension and Installation

Features

Exit Button www.hikvision.com
6




 Dimension(LxWxH): 87.7x87.7x44mm(3.46x3.46x2.13");
 Structure: stainless steel panel, metal button, metal bottom case;
 Current Rating: 3A@36VDC Max;
 Output Contact: NO/NC/COM Contact;
 Aging Test: already passed 500 thousand times aging test;
 Accessories: equipped with metal bottom case;
 Suitable Doors: all kinds of doors;
 Working Temperature: -10°C to +55°C (14°F to 131°F);
 Working Humidity: 0 to 95% (relative humidity);
 Panel: brushed stainless steel panel;
 Bottom Case: polished zinc alloy with chromium electroplating;
 Product Weight: 0.23kg (0.51lb).





DC
DC
+12V Black
Ground
White
Red (NO connection)
Fail-secure(chart1)
Release
button
Release
button
+12V Red
GroundBlack(NC connection)
ELECTRIC LOCK
ELECTRIC LOCK
Fail-safe(chart2)
White
Installation
Dimensionb



DS-K7P06

DS-K7P06
Dimension and Installation

Features
