DS-K4H450-LZ

Spec of DS-K4H450-LZ Bracket of Magnetic Lock www.hikvision.com  1            DS-K4H450-LZ           High strength aluminum with the surface sandblast and anodized aluminum shell   Applies to wooden door, metal door and narrow trim door   The door can open with the angle of 90°            Model DS-K4H450-LZ  Dimension of L (L x W x H) 265 mm x 72 mm x 45.2 mm (10.43” x 2.83” x 1.78”)  Dimension of Z (L x W x H) 185 mm x 70 mm x 61 mm (7.28” x 2.76” x 2.40”)  Material  High Strength Aluminum with the Surface Sandblast  Shell: Anodized aluminum  Suitable Door Wooden Door, Metal Door, Narrow Trim Door  Weight 1.3 kg        DS-K4H450-LZ    MAIN FEATURES    Specification    AVAILABLE MODEL    LZ-Bracket of Magnetic Lock    Spec of DS-K4H450-LZ Bracket of Magnetic Lock www.hikvision.com  2...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

Spec of DS-K4H450-LZ Bracket of Magnetic Lock www.hikvision.com
1

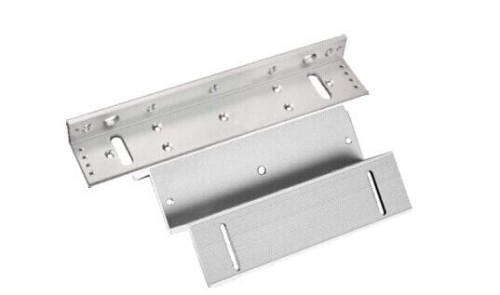

DS-K4H450-LZ




 High strength aluminum with the surface sandblast and anodized aluminum shell
 Applies to wooden door, metal door and narrow trim door
 The door can open with the angle of 90°





Model DS-K4H450-LZ
Dimension of L (L x W x H) 265 mm x 72 mm x 45.2 mm (10.43” x 2.83” x 1.78”)
Dimension of Z (L x W x H) 185 mm x 70 mm x 61 mm (7.28” x 2.76” x 2.40”)
Material
High Strength Aluminum with the Surface Sandblast
Shell: Anodized aluminum
Suitable Door Wooden Door, Metal Door, Narrow Trim Door
Weight 1.3 kg



DS-K4H450-LZ

MAIN FEATURES

Specification

AVAILABLE MODEL

LZ-Bracket of Magnetic Lock

Spec of DS-K4H450-LZ Bracket of Magnetic Lock www.hikvision.com
2
