Spec of DS-K4H250D Double-door Magnetic Lock www.hikvision.com
1

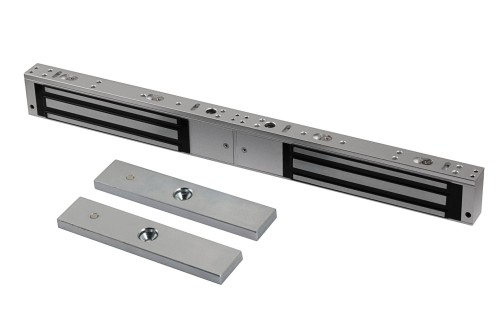

The DS-K4H250D Double-door magnetic lock is designed for
wooden door, glass door, and steel door with the opening
angle of 90°. The maximum thrust of the lock is 600kg. It can
be used for controlling door opening/closing, and the indicator
shows the door status. It supports signal output of door lock
output status testing.




DS-K4H250D



 The magnetic lock supports static linear thrust of 600kg;
 The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC;
 It is equipped with internal voltage dependent resistor (MOV);
 It is applied to wooden door, glass door, metal door and fireproof door;
 LED indicator displays the status of door lock;
 Signal output of door lock status (NO\NC\COM)
 Anti-residual magnetism design
 Abrasion-proof materials;
 The shell is made up of aldural and is hard anodizing electroplated;
 No mechanical failure, and the magnetic lock works by electromagnetism force;



Model DS-K4H250D
Dimension of Lock Body
(LxWxH)
480x49x25.5mm (18.9x1.93x1.00")
Dimension of Armature Plate
(LxWxH)
180x38x11mm (7.1x1.5x0.4")
Maximum Thrust 300kgx2 Linear Thrust
Input Voltage 12VDC /24VDC

MAIN FEATURES

DS-K4H250D

Double-door Magnetic Lock

SPECIFICATIONS

AVAILABLE MODEL


Spec of DS-K4H250D Double-door Magnetic Lock www.hikvision.com
2

Model DS-K4H250D
Working Current 12V/500mAx2 24V/250mAx2
Signal Output
Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO
Output While Locking and NC Output While Unlocking
LED Indicator Red (Door is Unlocked) Green (Door is Locked)
Suitable Door Wooden Door, Glass Door, Metal Door, Fireproof Door
Working Temperature -10°C to +55°C (14°F to 131°F)
Working Humidity 0 to 95% (Relative Humidity)
Shell Hard Anodizing Electroplating Operated
Lock Body Eco-friendly Zinc Electroplating Operated
Armature Plate Eco-friendly Zinc Electroplating Operated
Weight 4.2kg(9.3lb)









Circuit Board Diagram

Spec of DS-K4H250D Double-door Magnetic Lock www.hikvision.com
3






Installation
