DS-K4H250-LZ/U
Brackets for Magnetic Lock

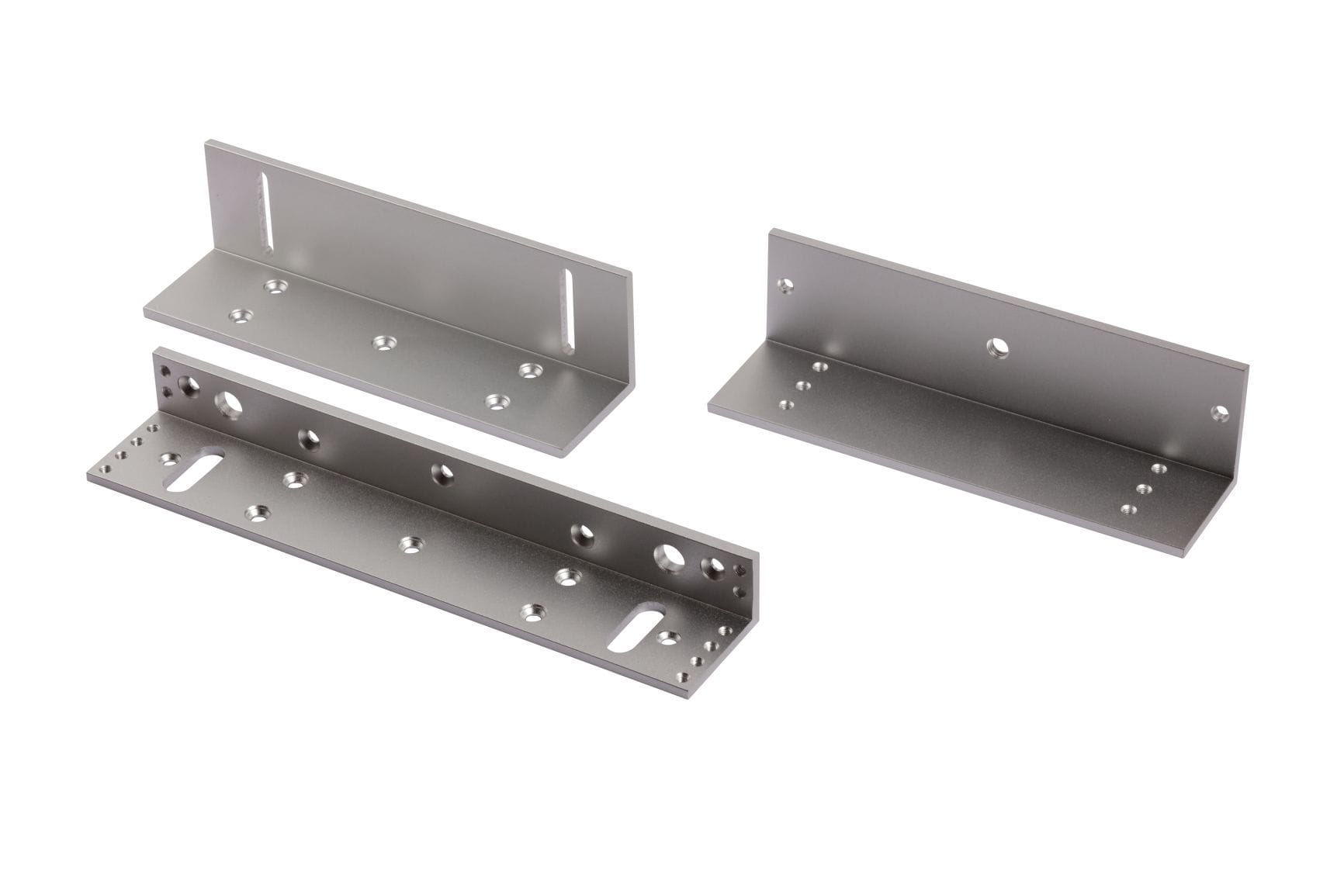

• The LZ-bracket adopts aldural material with
the surface sandblast;
• It is suitable for in-swing doors;
• The door opens towards inside at the angle
of 90°;
• The bracket is suitable for magnetic lock of
300kg series;
• The shell is hard anodizing electroplating
operated;
• The weight of the bracket is 0.75kg (1.58lb);
• The dimension(LxWxH) of L-bracket is
250x47x28.5mm (9.84x1.85x1.12”);
• The dimension (LxWxH) of Z-bracket is
180x50x50mm (7.09x1.97x1.97”) (ABK-280ZL).
• The U-bracket adopts aldural material with the
surface sandblast;
• It is suitable for frameless glass door;
• The door opens at the angle of 90°;
• The U-bracket is suitable for magnetic lock of
300kg series;
• The shell is hard anodizing electroplating
operated;
• The thickness of glass should be 10 to 15mm;
• The weight of the U-bracket is 0.32kg (0.70lb);
• The dimension (LxWxH) of U-bracket is
180x40x28mm (7.09x1.57x1.10”).
Key features
Key features
Installation
Installation
DS-K4H250-LZ
DS-K4H250-U
A. For in-swing door, install the lock body inside and then need to install the ZL bracket at the
same time.
B.D is change the mounting plate from lock body.
C. Fix the L bracket on the door frame and then fix the lock body on the L bracket.
D. As semble the Z bracket and then fix it on the door frame
E. Fix the amature plate on the Z bracket
Swing in installation
A.If the door is glass door,need to install the U bracket.
B. Use the Allen key to fix the U bracket on the glass door.
C.Fix the amature plate on the U bracket.
U Bracket InstallationPull glass door leaf(swing out)
