DS-K4E100

DS-K4E100  Intelligent Electric Lock    Key Feature  • Works cooperatively with video intercom system and access control system  • Lock status detection  • Installs on the left opening door, right opening door, interior door, exterior door and other doors  • The door will be automatically locked without people entering after 9 seconds  • Working voltage: 12 VDC to 18 VDC, working current < 350 mA, standby current < 25 mA, unlock time 1 s  • Working temperature: -20 °C to 60 °C (-4 °F to 122 °F)  • Life expectancy (≥ 500,000 times), high switch sensitivity, low power consumption  • Lock and unlock testing of intelligent lock  1Unlocked status: the lock tongue does not come out; NC and COM connected, NO and COM disconnected  2Locked status: NC and COM connected, NO and COM disconnected  3Door contact detection: when door is open, the door contact remainly open; when door is closed, the door contact  remainly close      Specifications    ModelDS-K4E100  Dimension (W x H x D)130 mm x 100 mm x 61.25 mm (5.12" x 3.94" x 2.41")  Power supplyDC 12V ± 10%    Electric current  350 mA (working current)  25 mA (standby current)  Working temperature-20 °C to 50 °C (-4 °F to 122 °F)  Length of the lock tong...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-K4E100
Intelligent Electric Lock

Key Feature
• Works cooperatively with video intercom system and access control system
• Lock status detection
• Installs on the left opening door, right opening door, interior door, exterior door and other doors
• The door will be automatically locked without people entering after 9 seconds
• Working voltage: 12 VDC to 18 VDC, working current < 350 mA, standby current < 25 mA, unlock time 1 s
• Working temperature: -20 °C to 60 °C (-4 °F to 122 °F)
• Life expectancy (≥ 500,000 times), high switch sensitivity, low power consumption
• Lock and unlock testing of intelligent lock
1Unlocked status: the lock tongue does not come out; NC and COM connected, NO and COM disconnected
2Locked status: NC and COM connected, NO and COM disconnected
3Door contact detection: when door is open, the door contact remainly open; when door is closed, the door contact
remainly close


Specifications

ModelDS-K4E100
Dimension (W x H x D)130 mm x 100 mm x 61.25 mm (5.12" x 3.94" x 2.41")
Power supplyDC 12V ± 10%

Electric current
350 mA (working current)
25 mA (standby current)
Working temperature-20 °C to 50 °C (-4 °F to 122 °F)
Length of the lock tongue20 mm
MaterialStainless steel
Weight1.45 kg (3.20 lb)

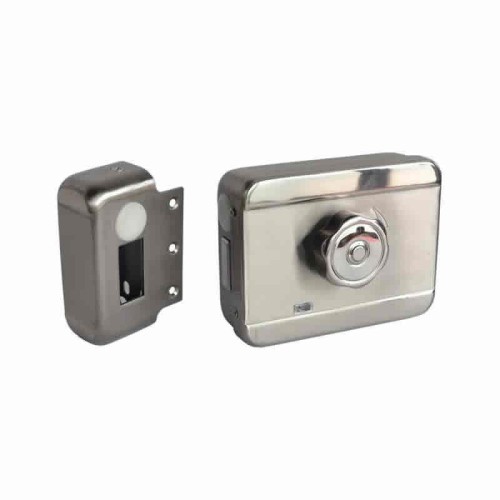

Appearance

Available Model
DS-K4E100
