DS-K2M0016A

Spec of DS-K2M0016A Distributed Elevator Controller www.hikvision.com  1      The distributed elevator controller has 8 DIP switches and  16 relay output terminals. It can communicate with the  master elevator controller and the relay via RS-485.          DS-K2M0016A Distributed Elevator Controller         RS-485 communication with the master elevator controller   Connectable with up to 16 relays to control the floor buttons in the elevator. Three types of  relays are supported: Button Relay, Call Elevator Relay and Auto Button Relay   DIP switch settings for device address and relay types. Supports 3 relay types: Call Elevator,  Button, and Auto Button)   Up to 8 distributed elevator controllers can be linked to the master elevator controller  (DS-K2210)   Control the elevator via the relay   Supports master elevator controller linkage, reporting the event to the system.            Distributed Elevator Controller    MAIN FEATURES    DS-K2M0016A    AVAILABLE MODELS      Spec of DS-K2M0016A Distributed Elevator Controller ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

Spec of DS-K2M0016A Distributed Elevator Controller www.hikvision.com
1

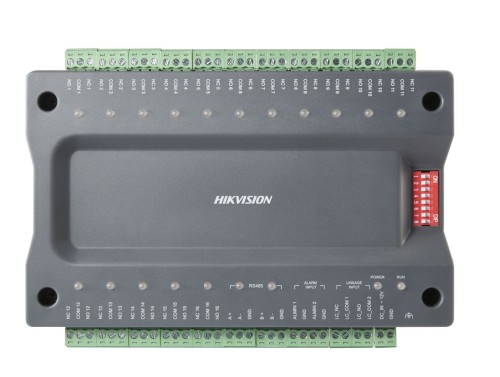

The distributed elevator controller has 8 DIP switches and
16 relay output terminals. It can communicate with the
master elevator controller and the relay via RS-485.




DS-K2M0016A Distributed Elevator Controller



 RS-485 communication with the master elevator controller
 Connectable with up to 16 relays to control the floor buttons in the elevator. Three types of
relays are supported: Button Relay, Call Elevator Relay and Auto Button Relay
 DIP switch settings for device address and relay types. Supports 3 relay types: Call Elevator,
Button, and Auto Button)
 Up to 8 distributed elevator controllers can be linked to the master elevator controller
(DS-K2210)
 Control the elevator via the relay
 Supports master elevator controller linkage, reporting the event to the system.





Distributed Elevator Controller

MAIN FEATURES

DS-K2M0016A

AVAILABLE MODELS


Spec of DS-K2M0016A Distributed Elevator Controller www.hikvision.com
2




Model DS-K2M0016A Distributed Elevator Controller
Processor 32 bit
RS-485 Interface 2
Alarm Input 2
Relay Output 16
Buzzer 1
Tamper-Proof 1
Working
Temperature
-40°F to 158°F
Working Humidity 0% to 90% (No Condensation)
Power Supply 12 VDC±15%
Dimensions 167(L)mm*105(W)mm*30(H)mm
Installation Guide Rail Installation



SPECIFICATION
