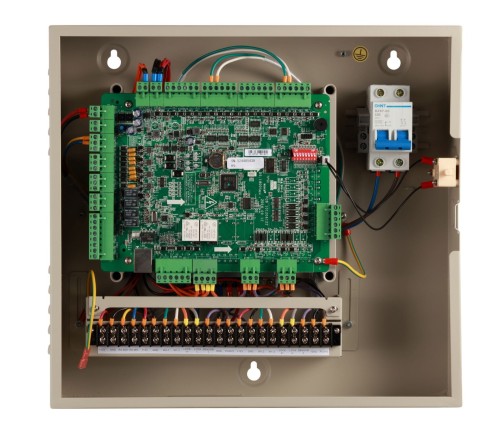

DS-K2602

DS-K2600 Series  Network Access Controller       TCP/IP Network Communication,  w/Self-Adaptive Network Interface   Encrypted Communication Data   100,000 (Expand to 200,000) Card Info, 300,000  (Expand to 600,000) Access Control Events   Multi-Door Interlocking (DS-K2602 and  DS-K2604), Anti-Passback, Multi-Card, First  Card, Super Card, and Super Password   Zone Alarm Input   RS-485 and Wiegand Card Reader Interfaces    Hikvision’s DS-K2600 Series access controllers are designed  with the latest communication protocols such as TCP/IP and  RS-485 interfaces. The communication data is encrypted to  improve the system security. The controller also supports  offline operation and is designed with a tamper-proof switch.  Available Models: DS-K2601: Single-door access controller   DS-K2602: Double-door access controller   DS-K2604: Four-door access controller  Software Interface     Client Software Interface            Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1  Tel: +1-909-895...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-K2600 Series
Network Access Controller


TCP/IP Network Communication,
w/Self-Adaptive Network Interface
Encrypted Communication Data
100,000 (Expand to 200,000) Card Info, 300,000
(Expand to 600,000) Access Control Events
Multi-Door Interlocking (DS-K2602 and
DS-K2604), Anti-Passback, Multi-Card, First
Card, Super Card, and Super Password
Zone Alarm Input
RS-485 and Wiegand Card Reader Interfaces

Hikvision’s DS-K2600 Series access controllers are designed
with the latest communication protocols such as TCP/IP and
RS-485 interfaces. The communication data is encrypted to
improve the system security. The controller also supports
offline operation and is designed with a tamper-proof switch.
Available Models: DS-K2601: Single-door access controller
DS-K2602: Double-door access controller
DS-K2604: Four-door access controller
Software Interface

Client Software Interface





Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 070717NA
Specifications

DS-K2601 DS-K2602 DS-K2604
Processor 32-bit
Capacity 16 MB
Doors Controlled 1 2 4
Uplink Communication
Interface
TCP/IP, RS-485
Downlink Communication
Interface
RS-485, Wiegand (W26/W34)
Storage
Card information: 100,000 (200,000 expandable)
Access control events: 300,000 (600,000 expandable)
LED Indicator Power supply status, communication status, working status
Built-in Clock Yes
Accessible Card Reader 2 card readers (RS-485 interface)
2 card readers (Wiegand interface)
4 card readers (RS-485 interface)
4 card readers (Wiegand interface)
8 card readers (RS-485 interface)
4 card readers (Wiegand interface)
Input Interface Alarm input x 4, door sensor x 1, exit button
x 1, case input x 2, tamper alarm x 1
Alarm input x 4, door sensor x 2, exit button
x 2, case Input x 4, tamper alarm x 1
Alarm input x 4, door sensor x 4, exit button
x 4, case input x 8, tamper alarm x 1
Output Interface Lock relay x 1, alarm relay x 2 Door relay x 2, alarm relay x 4 Lock relay x 4, alarm relay x 4
Working Temperature -4° to 140° F (-20° to 60° C)
Working Humidity 10% to 90% (non-condensing)
Dimensions (L x W x H) 14.6" x 13.6" x 3.5" (370 mm x 345 mm x 90 mm)
Certification CE, FCC ,UL
Working Voltage 12 VDC, 1A
Power Dissipation
(w/Load)
≤50 W ≤100 W
Power Dissipation (w/o
Load) ≤4 W

Dimensions Typical Application


Card Reader
Card
Card Reader (With Keyboard)
Fingerprint Card Reader
Door Switch
Magnetic
Lock
Access Controller
SwitcherManagement Center
TCP/IP Network CommunicationRS-485 or Wiegand
Signal LineRS-485 Communication
Line of Controller
Client (PC)Auto Card Issuer

Topological Graph
