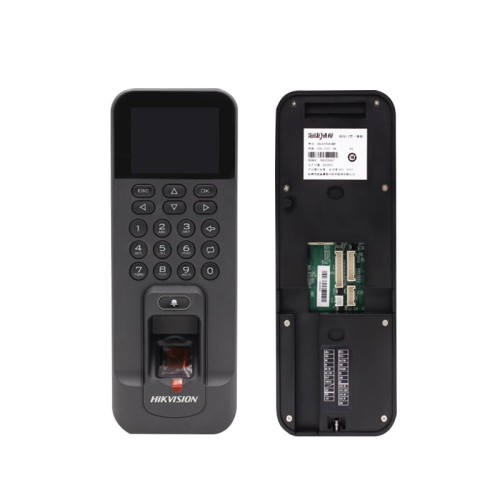

DS-K1T804BMF
Description
DS-K1T804BMF Fingerprint Access Control Terminal 3,000 fingerprints, 3,000 cards and 100,000 events storage Built-in card reader for Mifare1 card Communication via TCP/TP and Wi-Fi Supports Wiegand interface Alarm input and output interface ISUP5.0,ISAPI Specification System Operation system Linux Display Size 2.4-inch Resolution 320 x 240 Type LCD-TFT display screen Audio Audio output 1 loudspeaker, 1 buzzer Network Wired network TCP/IP, 10/100Mbps, self-adaptive Wi-Fi Support Interface Network interface 1 Wiegand 1 Lock output 1 Exit button 1 Door contact input 1 IO input 1 IO output 1 TAMPER 1 USB 1 Capacity Card capacity 3000 Fingerprint capacity 3000 Event capacity 100,000 Authentication Card type Mifare 1 card Card reading distance 0 to 4.5 cm Card reading duration < 1 s Fingerprint module Optical fingerprint module Fingerprint comparing mode 1:1 and 1:N Fingerprint recognition duration < 1 s Fingerprint Fa...
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
DS-K1T804BMF
Fingerprint Access Control Terminal
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for Mifare1 card
Communication via TCP/TP and Wi-Fi
Supports Wiegand interface
Alarm input and output interface
ISUP5.0,ISAPI
Specification
System
Operation system Linux
Display
Size 2.4-inch
Resolution 320 x 240
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 1
IO output 1
TAMPER 1
USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration < 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration < 1 s
Fingerprint False Acceptance Rate (FAR) ≤ 0.001 %
Fingerprint False Rejection Rate (FRR) ≤ 0.01 %
General
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Dimensions 205 mm x 76.5 mm x 37 mm (8.07" x 3.01" x 1.46")
Installation Surface mounting
Language
English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic,
Thai, Turkish, Indonesian, and Ukrainian
Dimension
Available Model
DS-K1T804BMF
