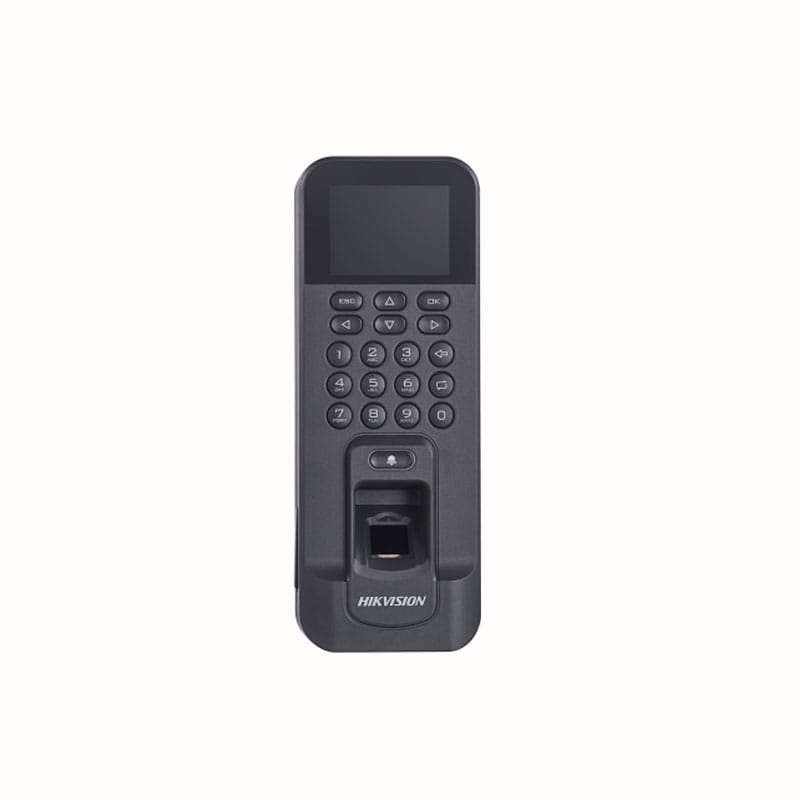

DS-K1T804AMF

DS-K1T804AMF  Fingerprint Access Control Terminal                 Integrated management of access control and the attendance   2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results   Transmission modes of wired network (TCP/IP) and wireless network   Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records   Different authentication types can be configured according to different situations, authentication via PIN code is also  supported   Stand-alone operation: locally adds person, card and fingerprints information   Exports the presenting card data and the attendance report to the USB flash drive   Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured   Generates the attendance report automatically   Mifare card reading, including card No. reading   Secure door control unit accessing via RS-485 connection   Supports fingerprint card reader (DS-K1201 series) accessing   Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, duress card alarm, and so on   Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, Fr...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-K1T804AMF
Fingerprint Access Control Terminal







 Integrated management of access control and the attendance
 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
 Transmission modes of wired network (TCP/IP) and wireless network
 Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
 Different authentication types can be configured according to different situations, authentication via PIN code is also
supported
 Stand-alone operation: locally adds person, card and fingerprints information
 Exports the presenting card data and the attendance report to the USB flash drive
 Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
 Generates the attendance report automatically
 Mifare card reading, including card No. reading
 Secure door control unit accessing via RS-485 connection
 Supports fingerprint card reader (DS-K1201 series) accessing
 Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, duress card alarm, and so on
 Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish,
Indonesian, and Ukrainian
 Accurate data and time display provided by built-in electronic clock
 Check the device running status via the Watchdog. When exception status occurs, the system will reboot
automatically
 Data can be permanently saved after power-off
 Supports transmitting data via Wi-Fi
 Operates via Hik-Connect mobile client
 Supports ISAPI protocol and ISUP 5.0 protocol





 Specification
System
Operation system Linux
Screen
Size 2.4-inch
Resolution 320 x 240
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 1
IO output 1
TAMPER 1
USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration ＜ 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
Fingerprint False Acceptance
Rate (FAR)
≤ 0.001 %
Fingerprint False Rejection Rate
(FRR)
≤ 0.01 %
Others
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color Black (included), gold (optional), silver (optional), white (optional)
Dimensions 205 mm x 76.5 mm x 37 mm (8.07" x 3.01" x 1.46")
Installation Surface mounting

 Dimension



















 Available Model
DS-K1T804AMF
