DS-K1T802E

1          DS-K1T802E  DS-K1T802M                 32-bit processor   Stand-alone operation management settings   Supports offlineworking,and onlineupgrade   Max. 3000 card number settings , and Max. 10000 event records   SupportsMifare card recognition, and Mifare card number reading（DS-K1T802M）   Supports ID card recognition, and ID card number reading（DS-K1T802E）   128x64 Dot MatrixSTN screen for displaying time,date,and week   Supports TCP/IP network communication   Multi-authentication mode: card, card and password   Supports door-open button   Supports duress alarm function, and self-defined duress password(card)   Supportsfirst card, remote open door,super card and super password. Super password would not  be restricted by the schedule template. Super card must observe the permission schedule  (exceptsthe NC status)   Supports offline event alarm for insufficient storage, offline alarm, door unsecured alarm, force  opening door alarm, door opening time out alarm etc.   Supports self-defined number for eliminatingalarm   Supports multi types of card: normal/disabled/blacklist/patrol/super/duress   Supports time synchronizatio...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1




DS-K1T802E
DS-K1T802M







 32-bit processor
 Stand-alone operation management settings
 Supports offlineworking,and onlineupgrade
 Max. 3000 card number settings , and Max. 10000 event records
 SupportsMifare card recognition, and Mifare card number reading（DS-K1T802M）
 Supports ID card recognition, and ID card number reading（DS-K1T802E）
 128x64 Dot MatrixSTN screen for displaying time,date,and week
 Supports TCP/IP network communication
 Multi-authentication mode: card, card and password
 Supports door-open button
 Supports duress alarm function, and self-defined duress password(card)
 Supportsfirst card, remote open door,super card and super password. Super password would not
be restricted by the schedule template. Super card must observe the permission schedule
(exceptsthe NC status)
 Supports offline event alarm for insufficient storage, offline alarm, door unsecured alarm, force
opening door alarm, door opening time out alarm etc.
 Supports self-defined number for eliminatingalarm
 Supports multi types of card: normal/disabled/blacklist/patrol/super/duress
 Supports time synchronization via NTP, manual or automatic method
 Watchdog design;
 Data can be permanently saved after power-off
 Client supports attendance function

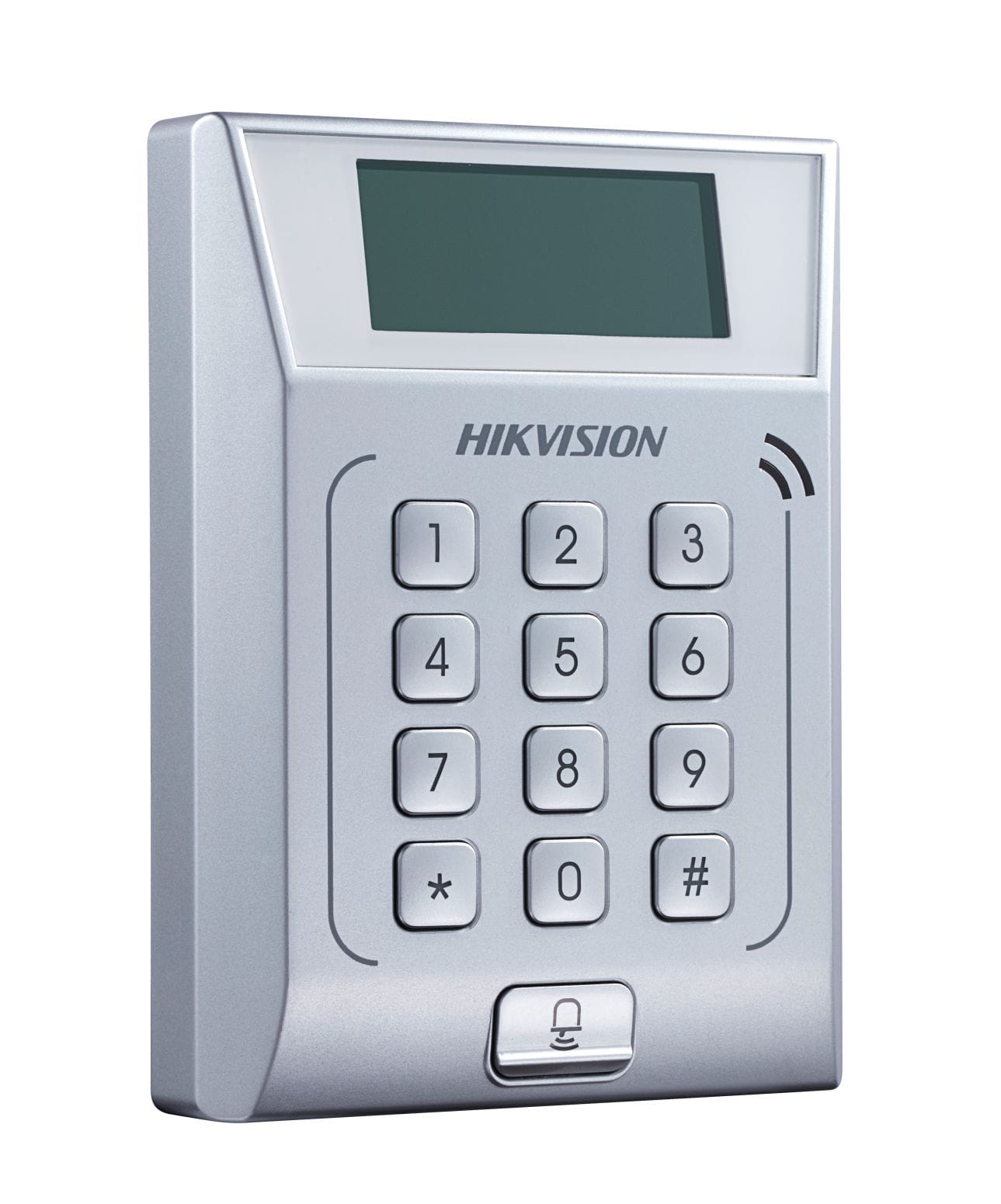

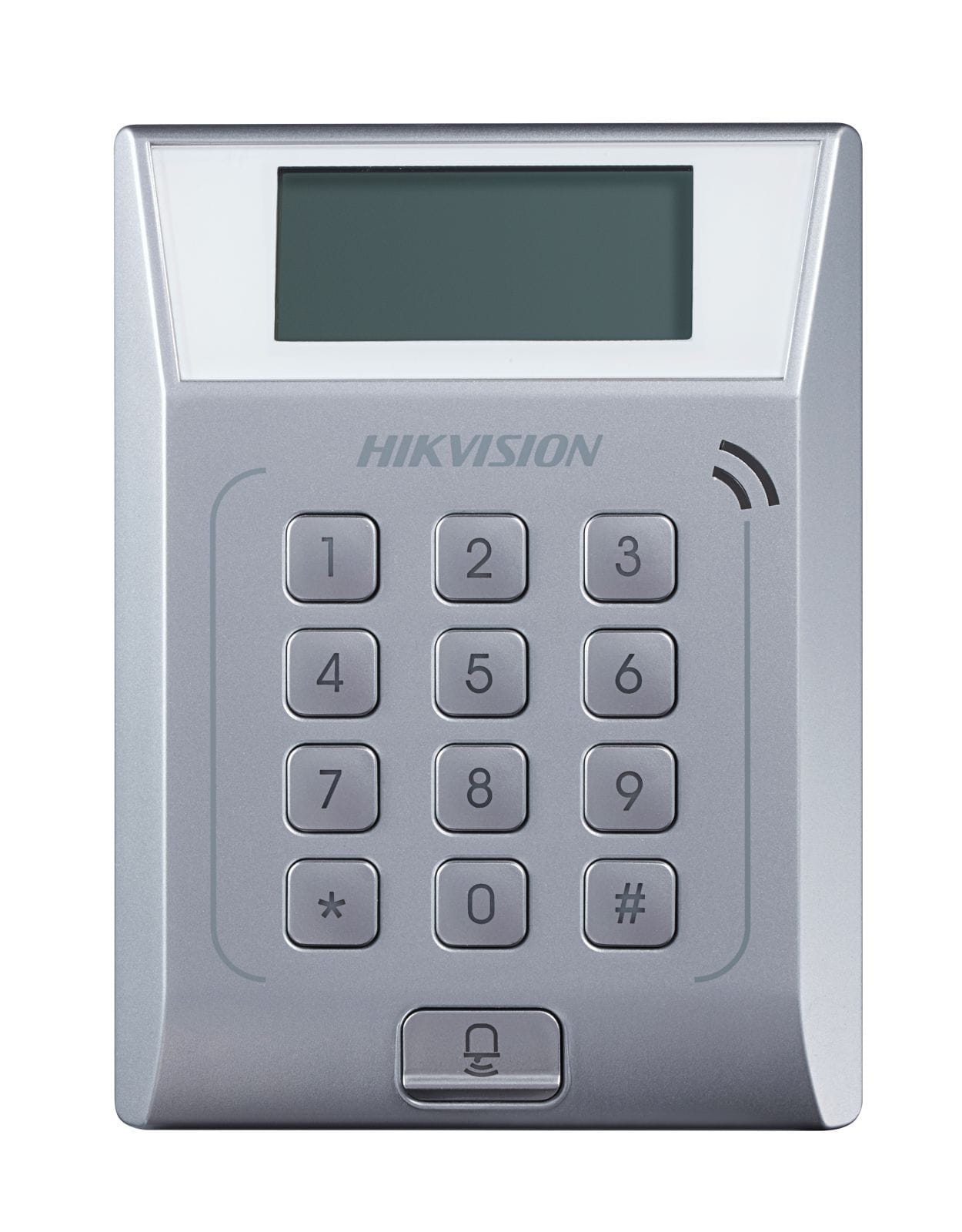

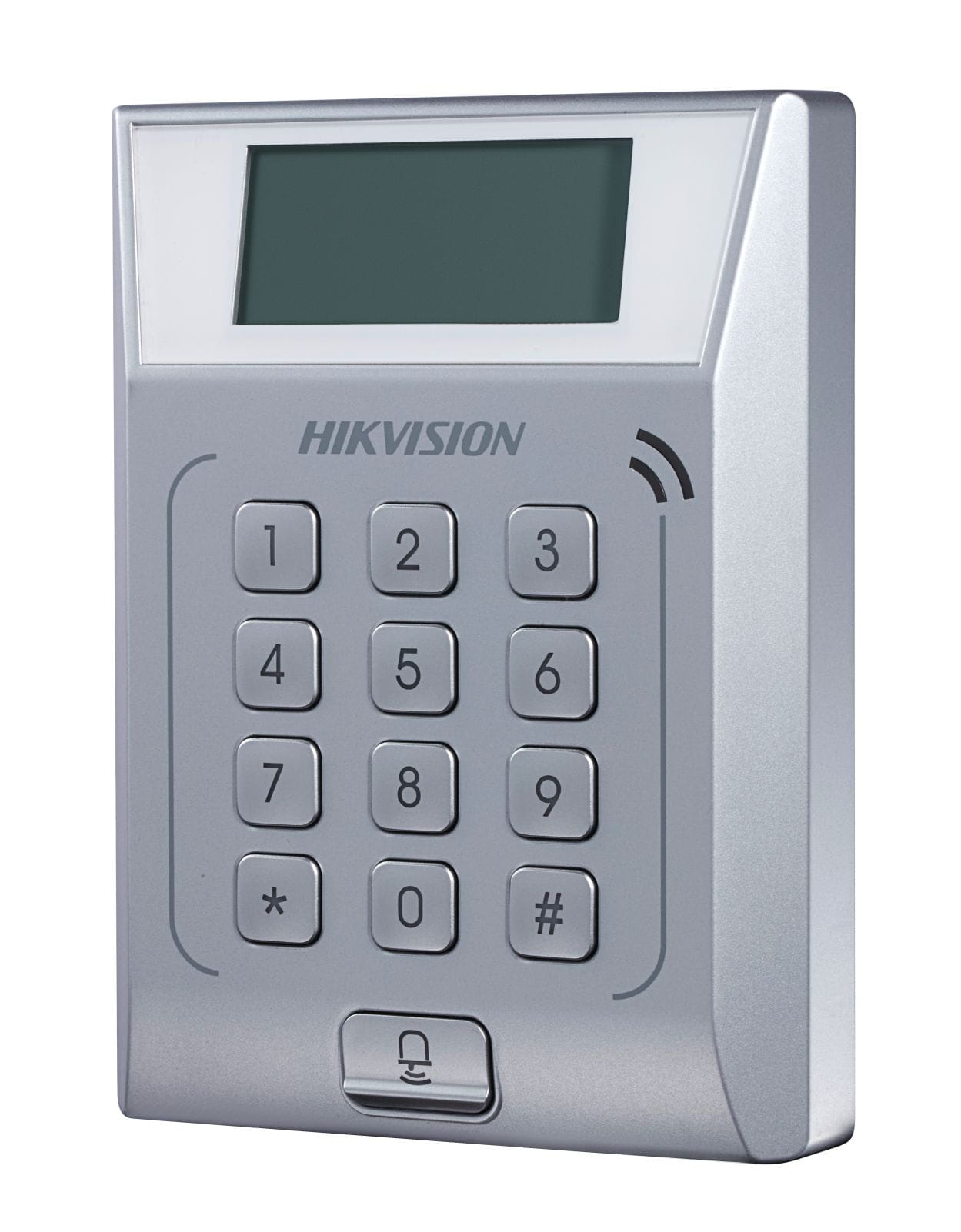

Time & Attendance and Access Control Terminal
MAIN FEATURES
DS-K1T802E/M
AVAILABLE MODELS


Spec of DS-K1T802E/MTime & Attendance and Access Control Terminalwww.hikvision.com

2



Model
Parameters
DS-K1T802E DS-K1T802M
Processor 32bit
Storage
Storage for 3000 legal card information and 10 thousand event
record
Communication type TCP/IP
Card type EM card Mifare card
Input interface Door-open buttonx1, door magneticx1
Output interface Doorbellx1, E-lock outputx1
Key board 13 Keys (0-9, , *, #, Doorbell)
Display screen STN screen(resolution 128*64 )
LED Indicator communication/ Status
Voice prompt beeper
Working voltage 12V DC
Working current 0.25 A(without load)
Working Temperature -20°C to 65°C
Working Humidity 10% to 90% (No Condensing)
Dimension 126.5(L)mmx94.5(W)mmx24(H)mm

SPECIFICATIONS
