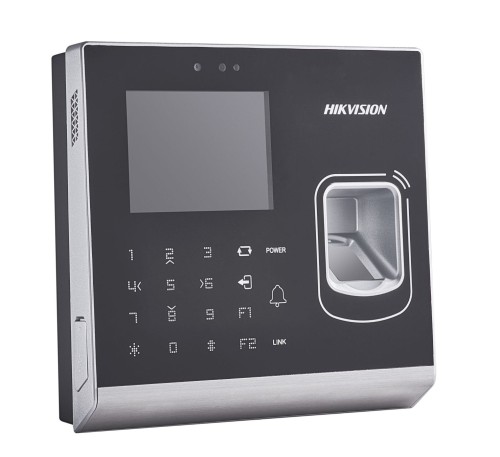

DS-K1T201MF

1      DS-K1T201 series are optical IP-based fingerprint access control  terminal with multiple advanced technologies including fingerprint  recognition, face detection, Wi-Fi, smart card recognition, LCD  display screen, and picture capturing technology. It is designed with  a 2.8-inch LCD display screen, and HD camera (2 MP  optional). It is equipped with optical fingerprint recognition  module (supporting 1:1 mode and 1:N mode), and supports  offline operation.        DS-K1T201EF  DS-K1T201EF-C (with Camera)  DS-K1T201MF  DS-K1T201MF-C (with Camera)  Recommended Fingerprint Recorder Model to Use Cooperatively: DS-K1F820-F         Supports Local activation   IP addresses conflicted alarm   M1 card encryption   Supports communicating with 4 software clients simultaneously; Supports uploading  real-time events   Gets offline events: Avoids events losing   Doorbell ringtone settings function   Touch mode and blue light display technique for keypad   Stand-alone settings for the terminal   2.8-inch LCD display screen to display the time, the date, etc.   Max. 100,000 cards No., Max. 300,000 access control event records and Ma...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1


DS-K1T201 series are optical IP-based fingerprint access control
terminal with multiple advanced technologies including fingerprint
recognition, face detection, Wi-Fi, smart card recognition, LCD
display screen, and picture capturing technology. It is designed with
a 2.8-inch LCD display screen, and HD camera (2 MP
optional). It is equipped with optical fingerprint recognition
module (supporting 1:1 mode and 1:N mode), and supports
offline operation.



DS-K1T201EF
DS-K1T201EF-C (with Camera)
DS-K1T201MF
DS-K1T201MF-C (with Camera)
Recommended Fingerprint Recorder Model to Use Cooperatively: DS-K1F820-F



 Supports Local activation
 IP addresses conflicted alarm
 M1 card encryption
 Supports communicating with 4 software clients simultaneously; Supports uploading
real-time events
 Gets offline events: Avoids events losing
 Doorbell ringtone settings function
 Touch mode and blue light display technique for keypad
 Stand-alone settings for the terminal
 2.8-inch LCD display screen to display the time, the date, etc.
 Max. 100,000 cards No., Max. 300,000 access control event records and Max. 5000 fingerprints
storage

IP-based Fingerprint Access Control Terminal

AVAILABLE MODELS

DS-K1T201 Series

MAIN FEATURES


Spec of DS-K1T201 Series IP-based Fingerprint Access Control Terminal www.hikvision.com

2

 Communication via wired network (TCP/TP) and Wi-Fi
 Supports EHome protocol for public network communication
 Face detection and picture capturing function implemented by built-in camera (2 MP optional,
only supported by DS-K1T201EF/MF-C)
 Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and
1:1 mode (card + fingerprint)
 Supports multiple authentication modes (card, fingerprint, card + fingerprint, card + password,
fingerprint + password, card + fingerprint + password, and so on)
 Supports RS-485 and Wiegand (26/34) communication for connecting external card reader
 Applies authentications from the client to the device or uploading the captured pictures from the
device to the client (only supported by DS-K1T201EF/MF-C)
 Supports working as a card reader, and supports Wiegand interface and RS-485 interface for
accessing the controller
 Supports EM card reading (supported by DS-K1T201EF/EF-C)
 Supports Mifare card reading (supported by DS-K1T201MF/MF-C)
 Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, blacklist
alarm, forced opening door alarm, IP addresses conflicted alarm, and duress card alarm and so
on
 Creates dismiss code for dismiss alarm
 Accurate data and time display provided by built-in electronic clock and watchdog program to
ensure the basic function of the terminal
 Data can be permanently saved after power-off.

Spec of DS-K1T201 Series IP-based Fingerprint Access Control Terminal www.hikvision.com

3



Model
Parameters
DS-K1T201EF DS-K1T201MF DS-K1T201EF-C DS-K1T201MF-C
Processor 32 Bit High-performance Processor
Storage 256M Storage
Operation System Linux
Camera 2 MP (Optional)
Card Capability 100,000 Cards and 300,000 Swiping Card Records
Fingerprint
Capacity
Max. 5000 Fingerprints; Up to 10 Local Collected Fingerprint Templates for Each Person
Fingerprint
Recognition Speed
1:1≤1s, 1:3000≤1.5s
FAR (False
Acceptance Rate)
≤0.001%
FRR (False
Recognition Rate)
≤0.01%
Fingerprint
Module
Optical Fingerprint Recognizer Module
Card Reading
Mode
EM Card
Reading
Mifare Card
Reading
EM Card Reading Mifare Card Reading
Communication
Mode
TCP/IP and Wi-Fi
Input Interface
Doorbell x 1, Tamper Alarm x 1, Exit Button x 1, Door Magnetic Sensor x 1, Alarm
Input x 2
Output Interface Lock Relay x 1, Alarm Output x 1
USB Interface USB 2.0
LCD Screen 320 x 240 (pixel) LCD-TFT Display Screen
Key Board 17 Keys
LED Indicator Power/ Communication
Prompt Beeper and Audio
Power Supply 12 VDC/3 A
Working Current Max. 500 mA
Working
Temperature
-30°C to 65°C (-22°F to 149°F)
Working Humidity 10% to 90% (No Condensing)
Dimension 137mm x 142mm x 35mm (5.4” x 5.6” x 1.4”)
Weight 400g (0.88lb)

SPECIFICATIONS
