DS-K1T105E

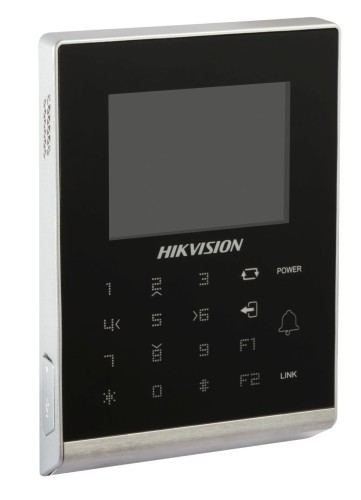

1        DS-K1T105 is a series of standalone access  control terminal with picture capturing  function. DS-K1T105 is designed with a  2.8-inch LCD display screen, and HD camera (2  MP optional). It supports two network  communication methods (TCP/IP, and Wi-Fi),  and supports offline operation.     DS-K1T105M/E-C DS-K1T105M/E        DS-K1T105M  DS-K1T105M-C (with Camera)  DS-K1T105E  DS-K1T105E-C (with Camera)         Doorbell ringtone settings function.   Touch mode and blue light display  technique for keypad.   Stand-alone settings for the terminal.   2.8-inch LCD display screen.   Transmission modes of wired network  (TCP/TP) and Wi-Fi.   Face detection and picture capturing  function implemented by built-in camera  (2 MP optional, only supports  DS-K1T105E/M -C)   Supports multiple door opening modes  (card, card + password, exit button, etc.)   Supports RS485 communication for  connecting to external card reader.   Supports working as a card reader, and  supports Wiegand interface and RS485  inte...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1



DS-K1T105 is a series of standalone access
control terminal with picture capturing
function. DS-K1T105 is designed with a
2.8-inch LCD display screen, and HD camera (2
MP optional). It supports two network
communication methods (TCP/IP, and Wi-Fi),
and supports offline operation.

DS-K1T105M/E-C DS-K1T105M/E



DS-K1T105M
DS-K1T105M-C (with Camera)
DS-K1T105E
DS-K1T105E-C (with Camera)



 Doorbell ringtone settings function.
 Touch mode and blue light display
technique for keypad.
 Stand-alone settings for the terminal.
 2.8-inch LCD display screen.
 Transmission modes of wired network
(TCP/TP) and Wi-Fi.
 Face detection and picture capturing
function implemented by built-in camera
(2 MP optional, only supports
DS-K1T105E/M -C)
 Supports multiple door opening modes
(card, card + password, exit button, etc.)
 Supports RS485 communication for
connecting to external card reader.
 Supports working as a card reader, and
supports Wiegand interface and RS485
interface for accessing the controller.
 Max. 100,000 valid card No., and Max.
300,000 access control events records
storage.
 Supports EM card reading
(DS-K1T105E/E-C)
 Supports Mifare card reading, including
card No. reading, & writing function
(DS-K1T105M/M-C)

Standalone Access Control Terminal

MAIN FEATURES

DS-K1T105E/M-C

AVAILABLE MODELS


Spec of DS-K1T105E/M/C-C Standalone Access Control Terminal www.hikvision.com

2

 Tampering detection, unlocking overtime
alarm, invalid card swiping over times
alarm, and duress card alarm.
 Accurate data and time display provided by
built-in electronic clock and watchdog
program to ensure the basic function of
the terminal.
 Data can be permanently saved after
power-off.




Model
Parameters
DS-K1T105E/M/C-C
Processor ≥1GHz, 32 Bit High-performance Processor
Storage 256M Storage,
Built-in Micro SD Card Max.32G
Operation System Linux
Camera 2MP (Optional)
Valid Card/ Swiping Record 100/300 thousand
Card Reading Mode
Supports EM card reading (DS-K1T105E/E-C)
Supports Mifare card reading, including card No. reading &
writing function (DS-K1T105M/M-C)
Card Reading Frequency
EM Card (DS-K1T105E/E-C): 125KHz;
Mifare Card (DS-K1T105M/M-C): 13.56MHz
External Card Reader RS485 IC Reader
Communication Mode
TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader
mode only)
Transmission Rate
TCP/IP, WIFI: 10/100Mbps Self-adaptive,
RS-485: 19200 bps-N-8-1
Input Interface Door Switch Keyx1, Magnetic Doorx1, Alarmx2
Output Interface Doorbellx1, Relayx1
LCD Screen 320x240 LCD-TFT Display Screen
Key board 16 Keys (0 to 9, F1, DEL, Switch Key, *, #, Doorbell)
LED Indicator Power/ Communication
Audio Loudspeaker
Power Supply 12VDC
Working Current 500mA ( without Locks)
Working Temperature -20°C to 65°C
Working Humidity 10% to 90% (No Condensing)
Certificate CE, FCC
Dimension 122x82x23mm (4.8x3.2x0.9")
Weight 280g (9.88lb)


SPECIFICATIONS
