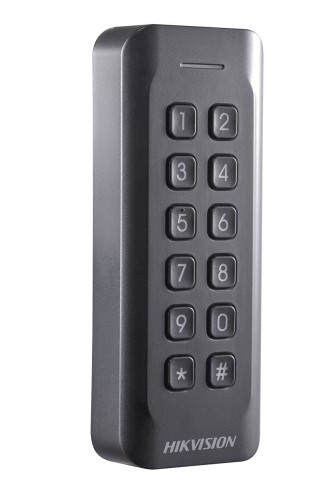

DS-K1802EK

1                DS-K1802E DS-K1802EK ID card readable  DS-K1802M DS-K1802MK Mifare card readable         Meets the standard of ISO 11784/11785 and the card reading frequency is 125KHz. The number  of ID card can be read (DS-K1802E and DS-K1802EK).   Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number  and content of MIFARE card can be read (DS-K1802M and DS-K1802MK).   Watchdog design for repairing itself in case that exception occurs, to ensure the long service life  of the reader   Built-in buzzer for identifying the reading status          Model DS-K1802M/MK DS-K1802E/EK  Power Supply 12V DC  Power Consumption ≤2W    Card Reader    MAIN FEATURES    DS-K1802    AVAILABLE MODELS    SPECIFICATION      Spec of DS-K1802 Series Card Reader www.hikvision.com  2    Processor 8-bit  Reading Frequency 13.56MHz 125KHz  Reading Range ≤5cm  Radio Frequency Standard ISO 14443-A ISO 11784/11785  Audio Alert Beeper  Keypad  No Keypad (DS-K1802E and DS-K1802M)  Keypad with 12 Keys (0~9, ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1







DS-K1802E DS-K1802EK ID card readable
DS-K1802M DS-K1802MK Mifare card readable



 Meets the standard of ISO 11784/11785 and the card reading frequency is 125KHz. The number
of ID card can be read (DS-K1802E and DS-K1802EK).
 Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number
and content of MIFARE card can be read (DS-K1802M and DS-K1802MK).
 Watchdog design for repairing itself in case that exception occurs, to ensure the long service life
of the reader
 Built-in buzzer for identifying the reading status




Model DS-K1802M/MK DS-K1802E/EK
Power Supply 12V DC
Power Consumption ≤2W

Card Reader

MAIN FEATURES

DS-K1802

AVAILABLE MODELS

SPECIFICATION


Spec of DS-K1802 Series Card Reader www.hikvision.com
2

Processor 8-bit
Reading Frequency 13.56MHz 125KHz
Reading Range ≤5cm
Radio Frequency Standard ISO 14443-A ISO 11784/11785
Audio Alert Beeper
Keypad
No Keypad (DS-K1802E and DS-K1802M)
Keypad with 12 Keys (0~9, *, #) (DS-K1802EK and DS-K1802MK)
LED Indicator Power Indicator, Status Indicator
Working Temperature -20°C to +65°C (-4°F to 149°F)
Working Humidity 10% to 90% (Non Condensing)
Dimensions 115.9x43.3x17mm (4.56x1.70x0.67inch)
Water-proof IP65
Installing Method Wall mounting with screws. The Gang Box is not supported.
