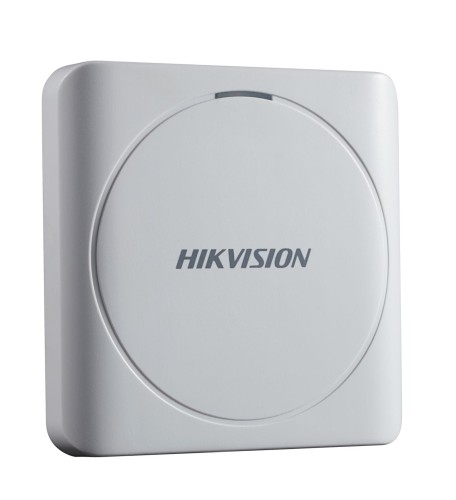

DS-K1801M

1          DS-K1801M  DS-K1801MK  DS-K1801E  DS-K1801EK           PC+ABS material shell   Blue light display button design（DS-K1801EK, and DS-K1801MK）   Equipped with the 32-bit high-speed processor   IP65Standard   Wiegand(w26, w34) protocol   Supports ID card recognition, and ID card number reading（DS-K1801E, and DS-K1801EK）   SupportsMifare card recognition, andMifare card numbereading（DS-K1801M, and DS-K1801MK）   Supportsauthentication methods such as card, and card & password（DS-K1801EK, and  DS-K1801MK）   Supports opening door by swiping card to（DS-K1801E, and DS-K1801M）   Watchdog design   High/low temperature resistant design(-20℃ to ＋65℃)            Model  Parameters  DS-K1801E DS-K1801EK DS-K1801M DS-K1801MK  Power Supply 12V DC, 0.15A    Inductive Card Reader  MAIN FEATURES  DS-K1801M/MK/E/EK  AVAILABLE MODELS    SPECIFICATIONS      Spec of DS-K1102M/MKInductive Card Reader www.hikvision.com  2    Consumption ≤1W ≤1.5W  Processor 8-bit  Reading card EM card Mifare card  Uplink  communication  interface  Wiegand interface  Read...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1




DS-K1801M
DS-K1801MK
DS-K1801E
DS-K1801EK




 PC+ABS material shell
 Blue light display button design（DS-K1801EK, and DS-K1801MK）
 Equipped with the 32-bit high-speed processor
 IP65Standard
 Wiegand(w26, w34) protocol
 Supports ID card recognition, and ID card number reading（DS-K1801E, and DS-K1801EK）
 SupportsMifare card recognition, andMifare card numbereading（DS-K1801M, and DS-K1801MK）
 Supportsauthentication methods such as card, and card & password（DS-K1801EK, and
DS-K1801MK）
 Supports opening door by swiping card to（DS-K1801E, and DS-K1801M）
 Watchdog design
 High/low temperature resistant design(-20℃ to ＋65℃)





Model
Parameters
DS-K1801E DS-K1801EK DS-K1801M DS-K1801MK
Power Supply 12V DC, 0.15A

Inductive Card Reader
MAIN FEATURES
DS-K1801M/MK/E/EK
AVAILABLE MODELS

SPECIFICATIONS


Spec of DS-K1102M/MKInductive Card Reader www.hikvision.com
2

Consumption ≤1W ≤1.5W
Processor 8-bit
Reading card EM card Mifare card
Uplink
communication
interface
Wiegand interface
Reading Range 30~50mm
Audio Alert Beeper
Keypad N/A 12 Keys(0~9,*,#) N/A 12 Keys(0~9,*,#)
LED Indicator Power Indicator; Status LED Indicator
Working
Temperature
-30°C to +65°C
Working Humidity 10% to 90% (Non Condensing)
Dimensions 87(L)mmx87(W)mmx13.3(H)mm
Protection Level IP 65 Standard
