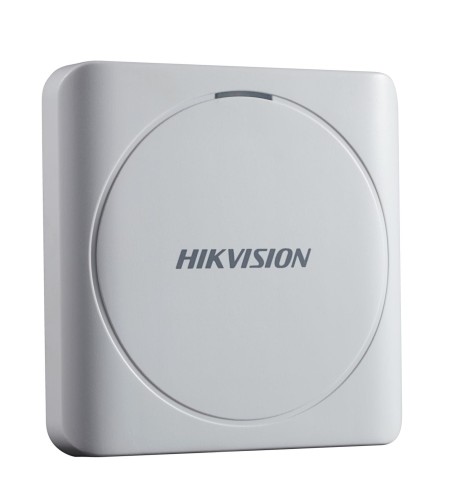

DS-K1801E

1                          DS-K1801E DS-K1801EK EM card reader  DS-K1801M DS-K1801MK Mifare card reader             PC+ABS material shell   Blue light display button design (DS-K1801EK, and DS-K1801MK)   IP65 Standard   Wiegand(w26, w34) protocol   Supports ID card recognition, and ID card number reading (DS-K1801E, and DS-K1801EK)   Supports Mifare card recognition, and Mifare card number reading (DS-K1801M, and  DS-K1801MK)   Supports authentication methods such as card, and card & password (DS-K1801EK, and  DS-K1801MK)   Supports opening door by swiping card (DS-K1801E, and DS-K1801M)   Watchdog design   High/low temperature resistant design (-20°C to + 65°C)        Card Reader    MAIN FEATURES    DS-K1801Series    AVAILABLE MODELS      Spec of DS-K1801 Series Card Reader www.hikvision.com  2        Model  Parameters  DS-K1801E DS-K1801EK DS-K1801M DS-K1801MK  Power Supply 12V DC, 0.15A  Consumption ≤1.6W  Processor 8-bit  Reading Card EM Card Mifare Card  Uplink  Com...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

1












DS-K1801E DS-K1801EK EM card reader
DS-K1801M DS-K1801MK Mifare card reader





 PC+ABS material shell
 Blue light display button design (DS-K1801EK, and DS-K1801MK)
 IP65 Standard
 Wiegand(w26, w34) protocol
 Supports ID card recognition, and ID card number reading (DS-K1801E, and DS-K1801EK)
 Supports Mifare card recognition, and Mifare card number reading (DS-K1801M, and
DS-K1801MK)
 Supports authentication methods such as card, and card & password (DS-K1801EK, and
DS-K1801MK)
 Supports opening door by swiping card (DS-K1801E, and DS-K1801M)
 Watchdog design
 High/low temperature resistant design (-20°C to + 65°C)



Card Reader

MAIN FEATURES

DS-K1801Series

AVAILABLE MODELS


Spec of DS-K1801 Series Card Reader www.hikvision.com
2



Model
Parameters
DS-K1801E DS-K1801EK DS-K1801M DS-K1801MK
Power Supply 12V DC, 0.15A
Consumption ≤1.6W
Processor 8-bit
Reading Card EM Card Mifare Card
Uplink
Communication
Interface
Wiegand (W26/W34)
Reading Range ≤50mm (≤1.97")
Audio Alert Beeper
Keypad N/A 12 Keys(0~9,*,#) N/A 12 Keys(0~9,*,#)
LED Indicator Power Indicator; Status LED Indicator
Working
Temperature
-20°C to +65°C (-4°F to +149°F)
Working Humidity 10% to 90% (Non Condensing)
Dimensions 87mm x 87mm x 13.3mm (3.43" x 3.43" x 0.52")
Protection Level IP 65


SPECIFICATIONS
