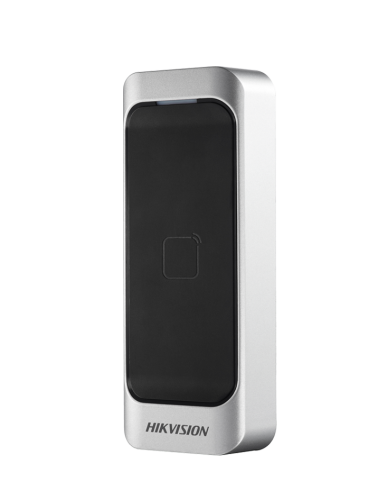

DS-K1107AE

DS-K1107AE  Card Reader                 Equipped with the 32-bit high-speed processor       RS-485 and Wiegand (W26/W34) protocol, and OSDP  protocol       Build-in EM card reading module (Frequency: 125KHz)       Supports tampering alarm       Built-in buzzer for identifying the reading status       Online upgrade function       Watchdog design for repairing itself in case that exception  occurs, to ensure the long service life of the reader               Specification  System  Processor 32-bit  Interface  TAMPER Support  RS-485 Support  Wiegand Support (set via DIP switch)  Authentication  Card reading frequency 125 KHz  Card reading distance ≤ 50 mm (≤1.97")  General  Indicator Power indicator, status indicator  Power supply 12 VDC  Power consumption ≤2 W  Working temperature -20 °C to 65 °C (-4 °F to 149 °F)  Working humidity 10% to 90% (Non Condensing)  Protective level IP65  Dimensions 115 mm x 44 mm x 22 mm (4.53'' x 1.73'' x 0.87'')  Installation Wall Mounting with Screws; Do Not Support Gang Box  Buzzer Support         ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-K1107AE
Card Reader







 Equipped with the 32-bit high-speed processor


 RS-485 and Wiegand (W26/W34) protocol, and OSDP
protocol


 Build-in EM card reading module (Frequency: 125KHz)


 Supports tampering alarm


 Built-in buzzer for identifying the reading status


 Online upgrade function


 Watchdog design for repairing itself in case that exception
occurs, to ensure the long service life of the reader






 Specification
System
Processor 32-bit
Interface
TAMPER Support
RS-485 Support
Wiegand Support (set via DIP switch)
Authentication
Card reading frequency 125 KHz
Card reading distance ≤ 50 mm (≤1.97")
General
Indicator Power indicator, status indicator
Power supply 12 VDC
Power consumption ≤2 W
Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
Working humidity 10% to 90% (Non Condensing)
Protective level IP65
Dimensions 115 mm x 44 mm x 22 mm (4.53'' x 1.73'' x 0.87'')
Installation Wall Mounting with Screws; Do Not Support Gang Box
Buzzer Support




 Available Model
DS-K1107AE
