DS-K1102MK

Availability: 0
Price: €67.52 67.52
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 302900510

Description

1              DS-K1102M Mifare Card Reader  DS-K1102MK Mifare Card Reader with Keypad         PC+ABS material shell with PMMA panel design and alloy decoration;   Equipped with the 32-bit high-speed processor;   Built-in audible beeper;   Display the reader status with LED indicator;   DIP switch;   RS485 and Wiegand(W26/W34) protocol;   Tamper-proof alarm;   Online upgrade function (under the 485 communication mode). Card reader can degrade to  pre-upgrade status in case of upgrading failed;   Watchdog design for repairing itself in case that exception occurs, to ensure the longservice life  of the reader;   Dust-proof and water-proof design;   Read Mifare card and obtain the card No.;          Card Reader  MAIN FEATURES  DS-K1102M/MK  AVAILABLE MODELS      Spec of DS-K1102M/MKCard Reader www.hikvision.com  2          Model DS-K1102M/MK  Power Supply 12V DC  Working Current ≤500mA  Processor 32-bit  Reading Frequency 13.56MHz  Reading Range 30 to 50mm (1.18 to 1.96")  ID Settings Setting by the DIP Switch on the Main Board  Audio Alert Beeper  Power Consumption ≤6W  Keyp...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet PDF


Text contents of PDF datasheet:

1

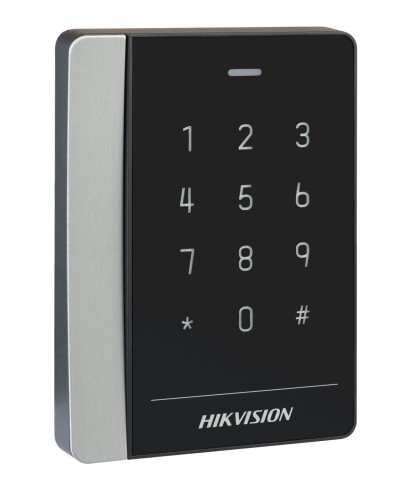

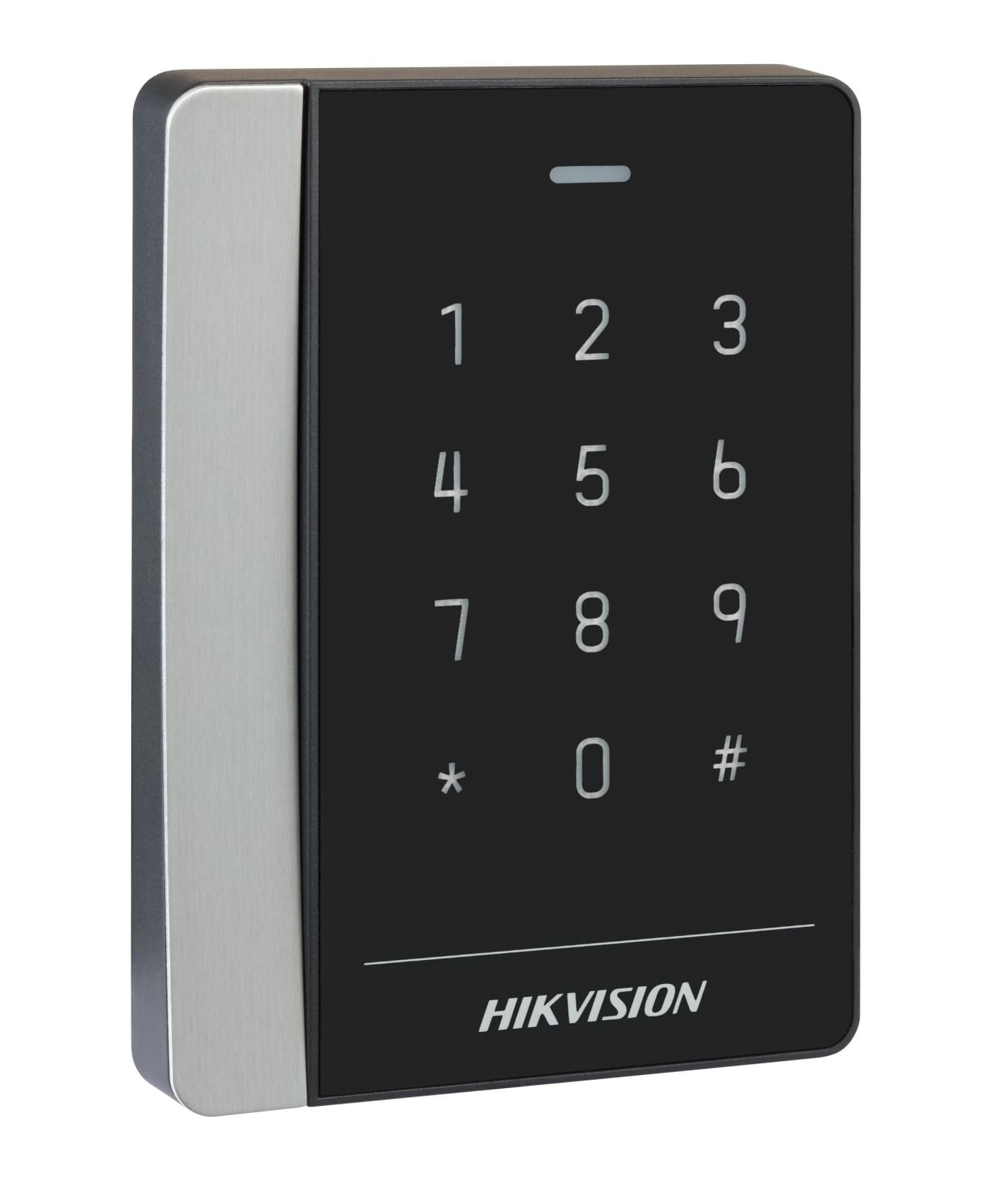

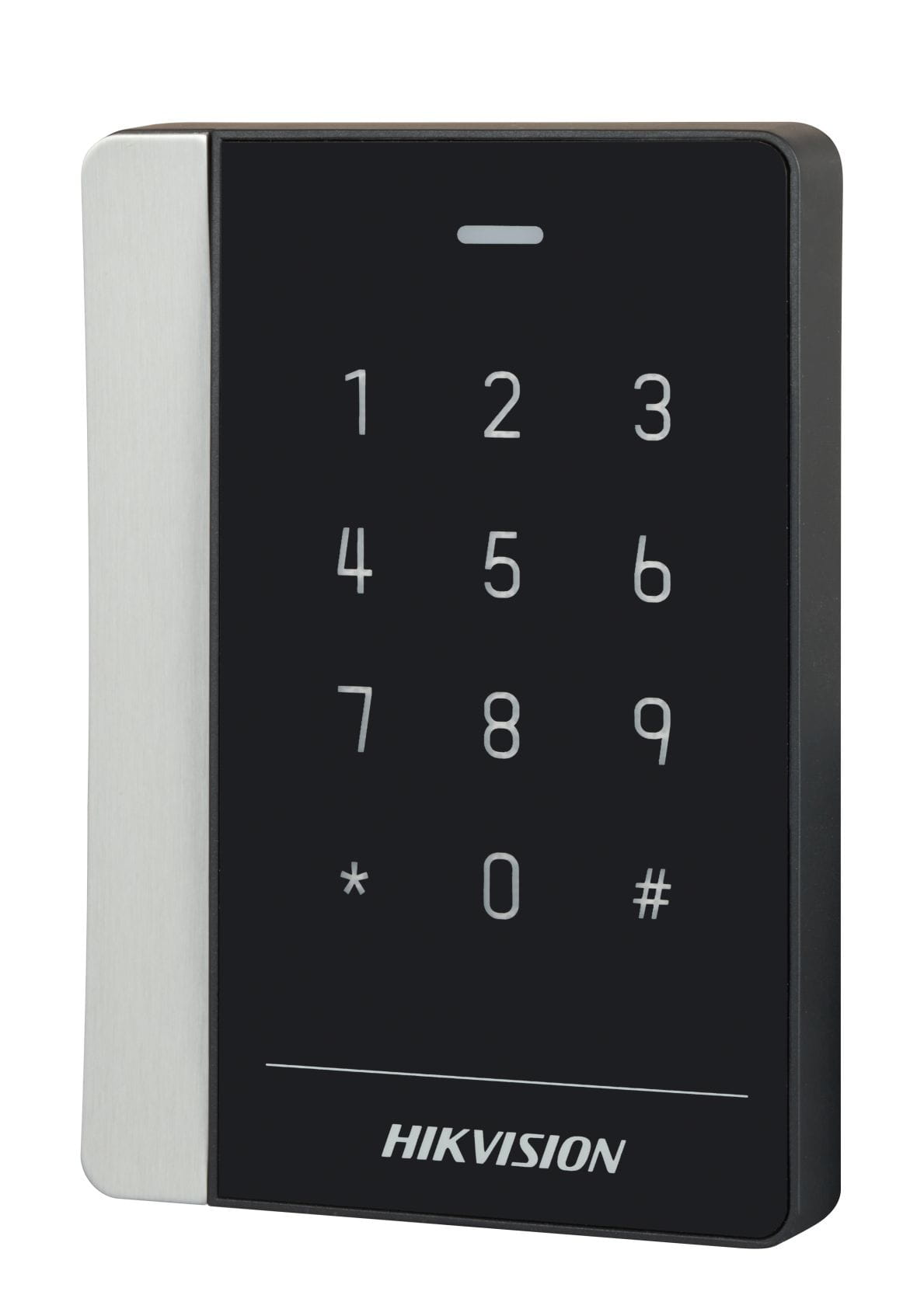

DS-K1102M Mifare Card Reader
DS-K1102MK Mifare Card Reader with Keypad



 PC+ABS material shell with PMMA panel design and alloy decoration;
 Equipped with the 32-bit high-speed processor;
 Built-in audible beeper;
 Display the reader status with LED indicator;
 DIP switch;
 RS485 and Wiegand(W26/W34) protocol;
 Tamper-proof alarm;
 Online upgrade function (under the 485 communication mode). Card reader can degrade to
pre-upgrade status in case of upgrading failed;
 Watchdog design for repairing itself in case that exception occurs, to ensure the longservice life
of the reader;
 Dust-proof and water-proof design;
 Read Mifare card and obtain the card No.;




Card Reader
MAIN FEATURES
DS-K1102M/MK
AVAILABLE MODELS


Spec of DS-K1102M/MKCard Reader www.hikvision.com
2




Model DS-K1102M/MK
Power Supply 12V DC
Working Current ≤500mA
Processor 32-bit
Reading Frequency 13.56MHz
Reading Range 30 to 50mm (1.18 to 1.96")
ID Settings Setting by the DIP Switch on the Main Board
Audio Alert Beeper
Power Consumption ≤6W
Keypad
No Keypad (DS-K1102M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1102MK)
Certifications FCC, CE
LED Indicator Power Indicator; Status LED Indicator
Working Temperature -40°C to +70°C (-40°F to +158°F)
Working Humidity 10% to 90% (Non Condensing)
Protection Level IP 64
Dimensions 121x86.5x14mm (4.76x3.41x0.55")
Weight ≤
Installing Method Applied for 86 & 120 Gang Box

SPECIFICATIONS
