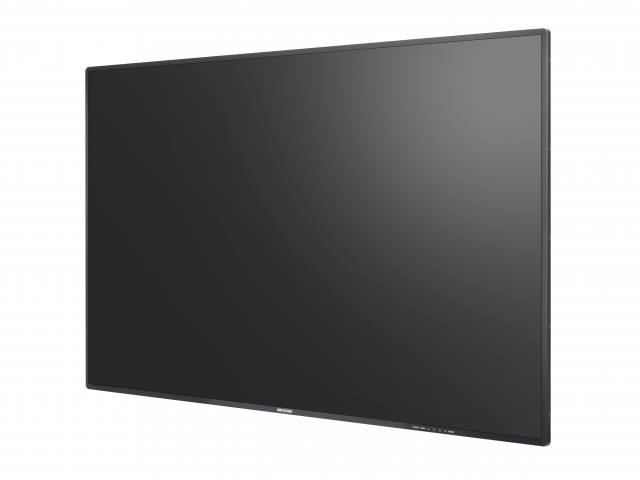

DS-D6055FN-B

DS-D6055FN-B  Digital Signage          Feature and Function   Metallic Appearance  Features in thin body and ultra-narrow boarder with integrative quadrilateral design, and supports horizontal and vertical  installation.   Exquisite Image  Industrial A+ panel, auto-coloring and image-enhancing engine.   Variable Materials  Supports static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video,  number calling, pop-up pictures, etc.   Flexible Program Schedule   Supports free schedule and district display of multiple materials.   Supports variable display modes: display by day, display by week, custom display, etc.   Centralized Management   Remotely controls and manages one screen or more screens, such as timed startup/shutdown, quick  startup/shutdown, brightness/volume timed adjustment, and screenshot preview.   Remotely releases programs and updates local (USB) programs.   Organization Permission   5-level organization is available for managing materials, programs, terminals, and users.   Supports creating custom users, and allocating permission for users according to user level.   Multiple Security Safeguards  ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-D6055FN-B
Digital Signage




Feature and Function
 Metallic Appearance
Features in thin body and ultra-narrow boarder with integrative quadrilateral design, and supports horizontal and vertical
installation.
 Exquisite Image
Industrial A+ panel, auto-coloring and image-enhancing engine.
 Variable Materials
Supports static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video,
number calling, pop-up pictures, etc.
 Flexible Program Schedule
 Supports free schedule and district display of multiple materials.
 Supports variable display modes: display by day, display by week, custom display, etc.
 Centralized Management
 Remotely controls and manages one screen or more screens, such as timed startup/shutdown, quick
startup/shutdown, brightness/volume timed adjustment, and screenshot preview.
 Remotely releases programs and updates local (USB) programs.
 Organization Permission
 5-level organization is available for managing materials, programs, terminals, and users.
 Supports creating custom users, and allocating permission for users according to user level.
 Multiple Security Safeguards
 3-level check of materials, programs and schedules to prevent mistake release.
 Encryption of data in storage and transmission to prevent data tampering.
 Screensaver to secure the security of broadcast contents.
 Center Remote Control
The infrared receiver in the screen center provides convenient remote control.
 Preeminent Structure
 Patented built-in slot antenna ensures strong signal.
 Fan-less design provides silent and energy-saving operation.



Physical Interface



Interface Description Interface Description
SWITCH Power switch 100-240V~ Power supply
LAN LAN network interface USB USB 2.0 interface
USB USB 2.0 interface AUDIO IN Audio input
AUDIO OUT Audio output TF TF card slot

Specifications
Model DS-D6055FN-B
Display
Display category TFT-LCD backlight
Screen size 54.64 inch
Active display area 1209.6 mm (H) x 680.4 mm (V) (47.6 x 26.8 inch)
Backlight Direct illumination-type LED backlight
Pixel pitch 0.210 mm (H) x 0.630 mm (V) (0.008 x 0.025 inch)
Resolution 1920 x 1080@60 Hz
Brightness 450 cd/m²
Viewing angle Horizontal: 178°, vertical: 178°


Color depth 8 bit
Contrast ratio 3500: 1
Response time 6.5 ms
Refresh rate 60 Hz
Color gamut 16.7 M
Reliability 7 x 24h
Interface
Network interface 1 x LAN
Data transmission interface 2 x USB 2.0 interface
Audio input 1-ch
Audio output 1-ch
Built-in system
Processor 4-core Cortex-A17, main screen 1.8 GHz
Memory 2 GB
NIC 100 M/1000 M self-adaptive
Built-in storage 8 GB (EMMC), TF Card 32 GB
Operation system Android 6.0.1
General
Material type
DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM,
ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A,
XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG

Range of remote control ≤ 5 m ± 45°
Power 100 to 240 VAC, 50/60 Hz


Model DS-D6055FN-B
Power consumption ≤ 118 W
Standby consumption ≤ 1 W
Working temperature 0 °C to 40 °C (32 °F to 104 °F)
Working humidity 10 % to 90 % RH
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage humidity 10 % to 90 % RH
Product dimension 1237.2 mm (W) x 708 mm (H) x 66.54 mm (D)
Package dimension 1403 mm (W) x 898 mm (H) x 263 mm (D)
Gross weight 24 kg (52.9 lb.)
Net weight 23 kg (50.7 lb.)
Accessory Power cord, Remote control, Battery x 2, Expansion bolt
package, CD-ROM, Installation manual
Available Model
DS-D6055FN-B
Dimension (unit: mm)
66.54
30.74
10.74
708
1237.211
.8
11.8
11
.8
11.8
