DS-D5050UC-C

DS-D5050UC  50” 4K MONITOR  • Ultra HD 4K(3840 x 2160) display  • High brightness and high contrast  • Wide view angle: 178°(H)/178°(V)  • Automatic adaptive redisplay rate when signal input  • Industrial ultra-thin design, convenience and beauty  • HDMI 1 interface is HDMI 2.0, HDMI 2 interface is HDMI1.4  • Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction  • High reliable components for 7 x 16 working hours  • Adopt 64bit processor, provide excellent image processing capability, optimize all kinds of video  signals and improve image quality  • VESA standard bracket    Features and Functions                Note: All specifications mentioned above are subject to the actual product.                    Model DS-D5050UC  LCD Screen  Backlight LED Backlight  Dimension 50 inch  Optimal working resolution 3840 x 2160@60Hz  Brightness 300 cd/m²  Contrast 4000: 1  Response time 8ms  Color 16.7M  Active Area 1095.84 x616.41 mm  Viewing Angle Horizantal 178°, vertical 178º  Interfaces  LAN 1  VGA input 1  HDMI input 1  AV input 1 (CVBS IN, L Audio input, R Audio input)  USB 2.0 ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-D5050UC

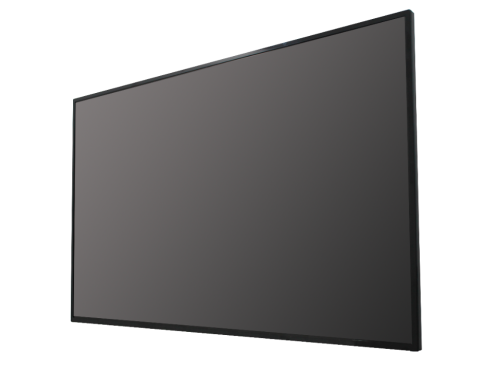

50” 4K MONITOR
• Ultra HD 4K(3840 x 2160) display
• High brightness and high contrast
• Wide view angle: 178°(H)/178°(V)
• Automatic adaptive redisplay rate when signal input
• Industrial ultra-thin design, convenience and beauty
• HDMI 1 interface is HDMI 2.0, HDMI 2 interface is HDMI1.4
• Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
• High reliable components for 7 x 16 working hours
• Adopt 64bit processor, provide excellent image processing capability, optimize all kinds of video
signals and improve image quality
• VESA standard bracket

Features and Functions







Note: All specifications mentioned above are subject to the actual product.









Model DS-D5050UC
LCD Screen
Backlight LED Backlight
Dimension 50 inch
Optimal working resolution 3840 x 2160@60Hz
Brightness 300 cd/m²
Contrast 4000: 1
Response time 8ms
Color 16.7M
Active Area 1095.84 x616.41 mm
Viewing Angle Horizantal 178°, vertical 178º
Interfaces
LAN 1
VGA input 1
HDMI input 1
AV input 1 (CVBS IN, L Audio input, R Audio input)
USB 2.0 1
USB 3.0 1
SPDIF output 1
General
Casing Material Plastic
Color of Casing Black
Wall-mounting Hole 400 x 200 mm
Wall-mounting Screw M6
Speakers 2*8W
Power Supply 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 117W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (0 to 104 º F)
Working Humidity 10 to 90 %
Storage Temperature -20 to 60 º C (-68 to 140 º F)
Storage Humidity 5 to 95%
Dimensions 1123.6 x 649.3 x 77 mm
Packing Dimensions 1280 x 845 x 203 mm
Gross Weight 12.35 kg
Net Weight 12.00 kg
Accessories Specification*1, Power cord*1,HDMI cable*1,Remote control*1
Specifications





NO. Description Position
1 LAN
Bottom
2 VGA
3 SPDIF OUT
4 CVBS/AV IN
5 L AUDIO INPUT
6 R AUDIO INPUT
7 HDMI 1 IN
8 USB2.0
Side 9 USB3.0
10 HDMI 2 IN
Physical Interfaces







Available Models
DS-D5050UC
Dimensions (unit: mm)
