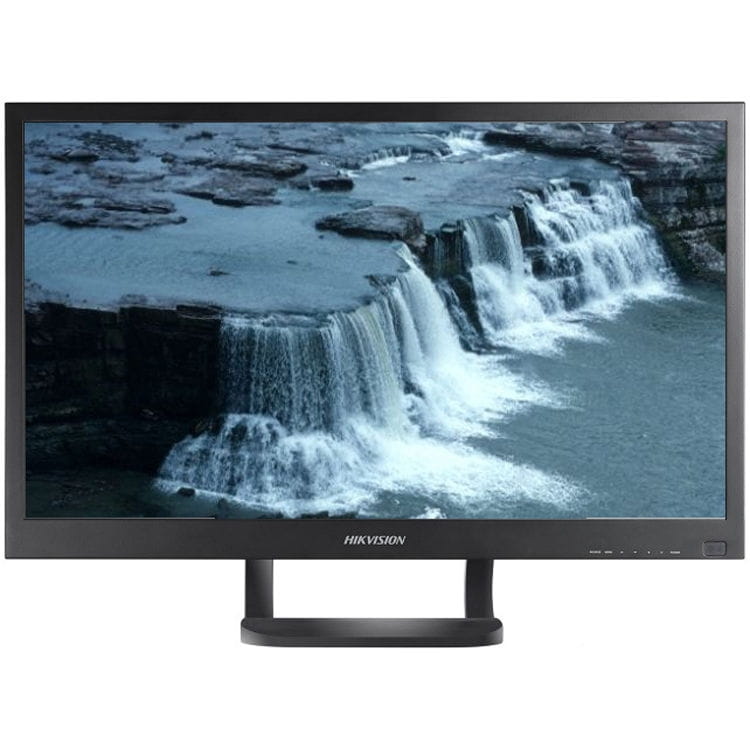

DS-D5032FL-B 32-inch PVM MONITOR
• LED backlit technology with full HD 1920*1080
• Wide view angle: 178°(H)/178°(V)
• Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
• Multiply inputs: HDMI, VGA, BNC input, USB, audio in
• Outputs: BNC output, audio out
• Support HD TVI and CVBS signal input
• Build-in speaker
• Image freeze
• Auto input signal source switch
• IR remote control
• Standby during no signal input
• Eco power saving mode
• Dual power supply: 24 VDC or 100 to 240 VAC
• High reliable components for 7 x 24 working hours
• VESA stand bracket
Features and Functions







Note: All specifications mentioned above are subject to the actual product.





Model DS-D5032FL-B
LCD Screen
Backlight LED Backlight
Dimension 32 inch
Dot pitch 0.3637 mm x 0.3637 mm
Max. resolution 1920 x 1080p
Optimal working resolution 1920 x 1080@60Hz
Brightness 400 cd/m²
Contrast 3000: 01: 00
Response time 10 ms
Color 16.7M
Active Area 698.4 x 392.85 mm
Viewing Angle Horizantal 178°, vertical 178º
Interfaces
VGA Input 1
BNC Input 1
BNC Output 1
USB 2.0 Interface 1
HDMI input 1
RS-232 interface 1
IR Receiver 1 (for remot control)
Audio input 1
Audio output 1
General
Casing Material Metal
Color of Casing Black
Wall-mounting Hole 200 x 200 mm
Wall-mounting Screw M4
Power Supply 24 VDC; 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 60 W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (0 to 104 º F)
Working Humidity 10 to 90 %
Storage Temperature -20 to 55 º C (-68 to 140 º F)
Storage Humidity 5 to 95%
Dimensions (without base)
737.4 x 452.5 x 70.7 mm
(29.0" x 17.8" x 2.8")
Packing Dimensions
881 x 205 x 630 mm
(34.7" x 8.1" x 24.8")
Gross Weight 19 kg (41.9 lb)
Net Weight 12 kg (26.5 lb)
Specifications



Interface Description
DC 24V 24 VDC power input
HDMI IN HDMI digital signal input
VGA IN Analog VGA input
BNC IN BNC input
BNC OUT BNC output
USB USB interface
AUDIO IN Audio input
AUDIO OUT Audio output
RS232 IN RS-232 communication interface
Physical Interfaces







Available Models
DS-D5032FL-B
020000170719
Dimensions (unit: mm)
