Warning! Product withdrawn from production!

Replacement product: DS-D5027FN

Replacement product code: 302502964

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

NO. Description
1 AC INPUT
2 VGA INPUT
3 HDMI INPUT
DS-D5027QE

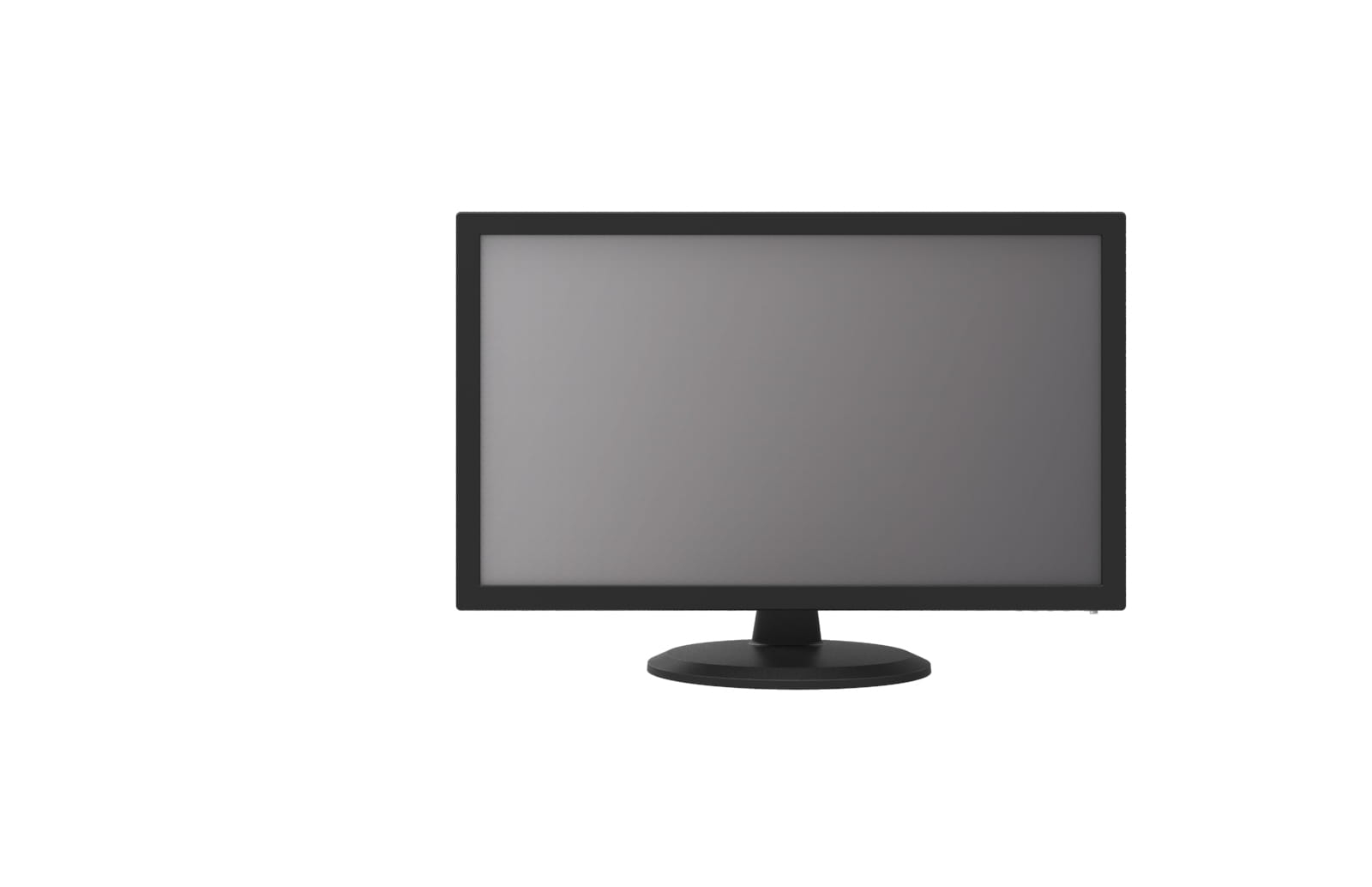

27” LED MONITOR

• LED backlit technology with full HD 1920x1080
• Wide view angle: 170°(H)/170°(V)
• User-friendly operation menu;
• High reliable components for 7x24 working
• 1 channel HDMI 1.3 input interface
• Three image modes to adapt different environment;
• Support software spread-spectrum technology to reduce EMI radiation
• VESA stand bracket
Features and Functions


Physical Interfaces


Available Models
DS-D5027QE






Note: All specifications mentioned above are subject to the actual product.












Model DS-D5027QE
LCD Screen
Backlight TFT-LED Backlight
Dimension 27 inch
Optimal working resolution 1920 x1080@60Hz
Brightness 250 cd/m²
Contrast 1000: 1
Response time 14ms
Color 16.7M
Active Area 598 x 336 mm
Viewing Angle Horizantal 170°, vertical 170°
Interfaces VGA input 1
HDMI input 1
General
Casing Material Plastic
Color of Casing Black
Wall-mounting Hole 100 x100 mm
Wall-mounting Screw M4
Speakers NA
Power Supply 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 35W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (32 to 104 º F)
Working Humidity 10 to 90 %
Storage Temperature -20 to 60 º C (-4 to 140 º F)
Storage Humidity 5 to 95%
Dimensions 646x447x220mm
Packing Dimensions 710x520x117mm
Gross Weight 6.7 kg
Net Weight 5.34 kg
Accessories
VGA cable 1
Power Cord 1
User Manual 1
Specifications







Dimensions (unit: mm)
