DS-D5024FN

Availability: 501-1000
Price: €281.36 281.36
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 302503674

Description

NO. Description  1 AC INPUT  2 HDMI INPUT  3 VGA INPUT  DS-D5024FN/EU  23.8” LED MONITOR    • LED backlit technology with full HD 1920x1080  • Wide view angle: 178°(H)/178°(V)  • User-friendly operation menu;  • High reliable components for 7x24 working  • 1 channel HDMI 1.3 input interface  • Three image modes to adapt different environment;  • Support software spread-spectrum technology to reduce EMI radiation  • VESA stand bracket  Features and Functions    Physical Interfaces      Available Models  DS-D5024FN/EU                Note: All specifications mentioned above are subject to the actual product.                          Model DS-D5024FN/EU  LCD Screen  Backlight TFT-LED Backlight  Dimension 23.8 inch  Optimal working resolution 1920 x1080@60Hz  Brightness 250 cd/m²  Contrast 1000: 1  Response time 14ms  Color 16.7M  Active Area 527 x 296 mm  Viewing Angle Horizantal 178°, vertical 178°  Interfaces VGA input 1  HDMI input 1  General  Casing Material Plastic  Color of Casing Black  Wall-mounting Hole 100 x100 mm  Wall-mounting Scr...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

NO. Description
1 AC INPUT
2 HDMI INPUT
3 VGA INPUT

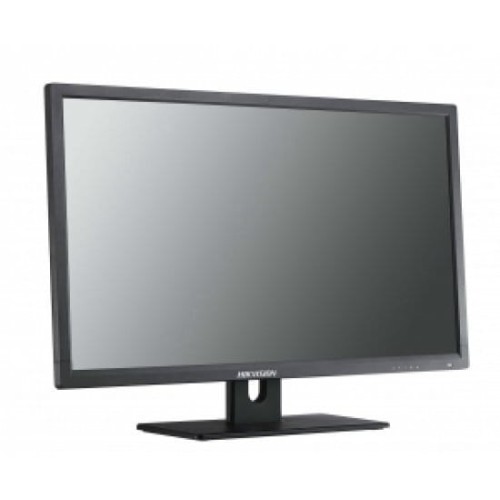

DS-D5024FN/EU
23.8” LED MONITOR

• LED backlit technology with full HD 1920x1080
• Wide view angle: 178°(H)/178°(V)
• User-friendly operation menu;
• High reliable components for 7x24 working
• 1 channel HDMI 1.3 input interface
• Three image modes to adapt different environment;
• Support software spread-spectrum technology to reduce EMI radiation
• VESA stand bracket
Features and Functions

Physical Interfaces


Available Models
DS-D5024FN/EU







Note: All specifications mentioned above are subject to the actual product.












Model DS-D5024FN/EU
LCD Screen
Backlight TFT-LED Backlight
Dimension 23.8 inch
Optimal working resolution 1920 x1080@60Hz
Brightness 250 cd/m²
Contrast 1000: 1
Response time 14ms
Color 16.7M
Active Area 527 x 296 mm
Viewing Angle Horizantal 178°, vertical 178°
Interfaces VGA input 1
HDMI input 1
General
Casing Material Plastic
Color of Casing Black
Wall-mounting Hole 100 x100 mm
Wall-mounting Screw M4
Speakers 2W*2
Power Supply 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 30W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (32 to 104 º F)
Working Humidity 10 to 90 %
Storage Temperature -20 to 60 º C (-4 to 140 º F)
Storage Humidity 5 to 95%
Dimensions 540x418x227mm
Packing Dimensions 609x500x109mm
Gross Weight 4.44 kg
Net Weight 3.43 kg
Accessories
HDMI cable 1
Power Cord 1
User Manual 1
Specifications







Dimensions (unit: mm)
