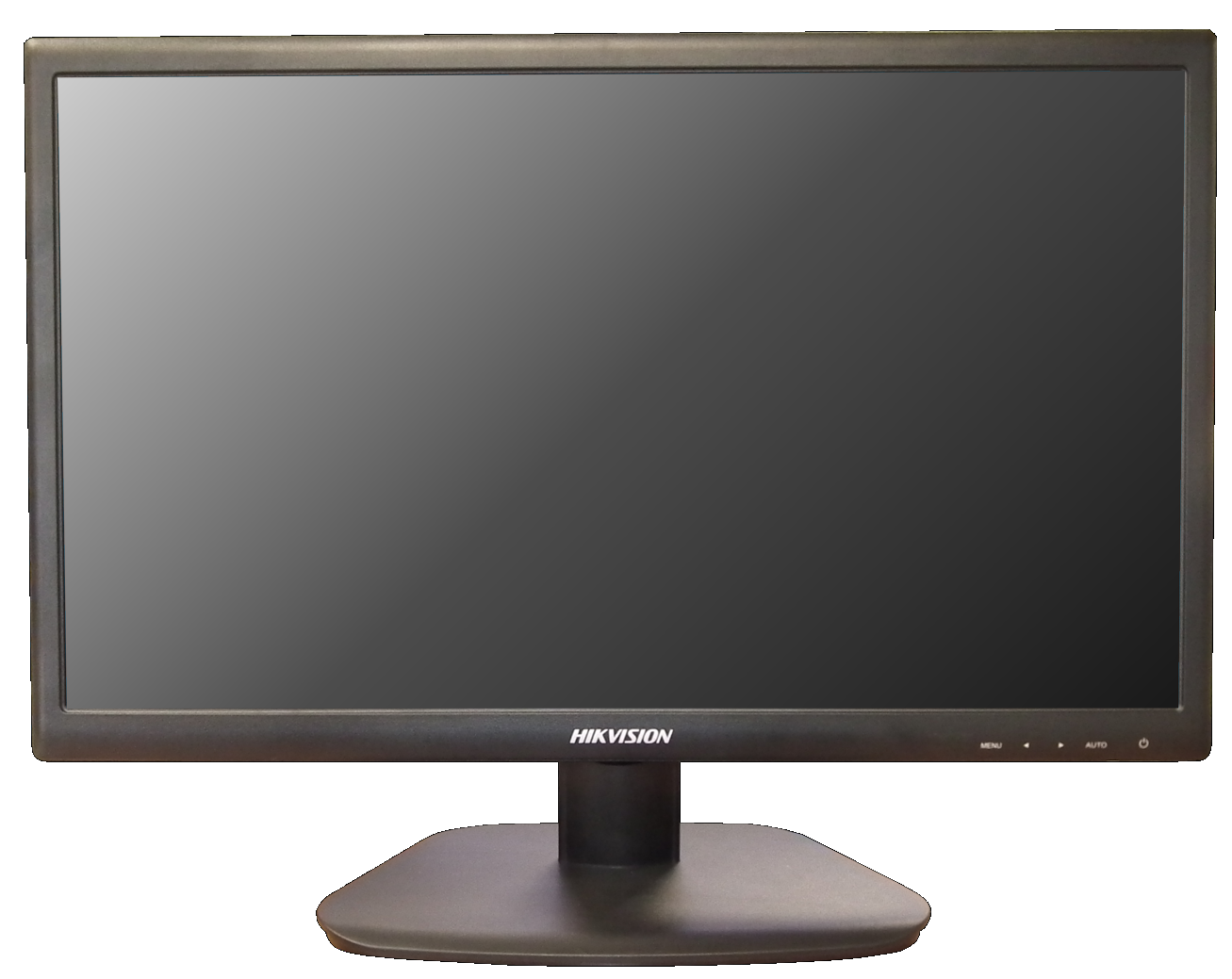

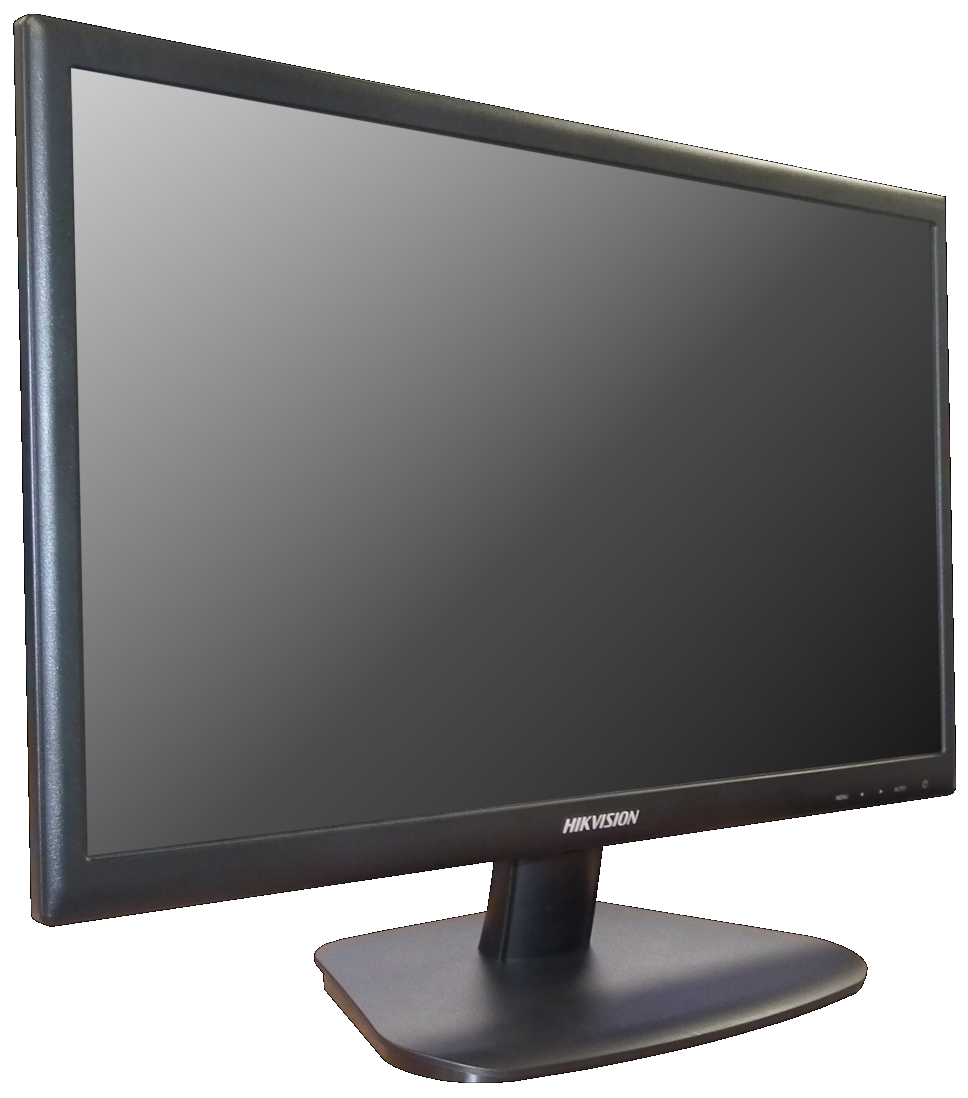

DS-D5022FC

Overview  DS-D5022FC is a reliable surveillance display with LED backlit  technology, excellent color reduction and image processing,  truly display the video details. Multiply interfaces are able to  meet various surveillance environments, and build-in speaker is  convenient to audio play. DS-D5022FC is an ideal choice for  security and surveillance application.  key Features  •LED backlit technology with full HD 1920x1080  •Wide view angle: 170°(H)/160°(V)  •Image processing: 3D comb filter, 3D De-interlace,  3D noise reduction  •Multiply inputs: HDMI, VGA, BNC, audio in  •Multiply outputs: BNC, audio output  •Build-in speaker  •External video play via USB port  •High reliable components for 7x24 working  •VESA stand bracket  Model:  DS-D5022FC  DS-D5022FC  21.5” LED Monitor    DS-D5022FC  21.5” LED Monitor  ModelDS-D5022FC  Display  Display TypeLED-Backlit  Screen Size 21.5”  Pixel Pitch(HxV)0.248mm x0.248mm  Max Resolution1920x1080  Brightness250cd/m2 (Typical)  Contrast1000:1  Response Time5ms  Color16.7M  Viewing AngleHorizontal 170°, Vertical 160°  Interface  HDMI1  VGA1  BNCIn x1, Outx1  USB Port1  Audio  Audio Input 1,3.5 mm mini-jack

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Overview
DS-D5022FC is a reliable surveillance display with LED backlit
technology, excellent color reduction and image processing,
truly display the video details. Multiply interfaces are able to
meet various surveillance environments, and build-in speaker is
convenient to audio play. DS-D5022FC is an ideal choice for
security and surveillance application.
key Features
•LED backlit technology with full HD 1920x1080
•Wide view angle: 170°(H)/160°(V)
•Image processing: 3D comb filter, 3D De-interlace,
3D noise reduction
•Multiply inputs: HDMI, VGA, BNC, audio in
•Multiply outputs: BNC, audio output
•Build-in speaker
•External video play via USB port
•High reliable components for 7x24 working
•VESA stand bracket
Model:
DS-D5022FC
DS-D5022FC
21.5” LED Monitor

DS-D5022FC
21.5” LED Monitor
ModelDS-D5022FC
Display
Display TypeLED-Backlit
Screen Size 21.5”
Pixel Pitch(HxV)0.248mm x0.248mm
Max Resolution1920x1080
Brightness250cd/m2 (Typical)
Contrast1000:1
Response Time5ms
Color16.7M
Viewing AngleHorizontal 170°, Vertical 160°
Interface
HDMI1
VGA1
BNCIn x1, Outx1
USB Port1
Audio
Audio Input 1,3.5 mm mini-jack
Audio Output 1,3.5 mm mini-jack
Speaker2W x2
Mounting
VESA100mm x100mm
General
Power SupplyDC 12V/3.0A
Consumption
< 30W(on)
< 0.5W(Standby)
Operation Temperature0°C ~ 40 °C
Operating Humidity10%~85% (No Condensation)
Storage Temperature-20°C ~ 60°C
Storage Humidity5%~95% (No Condensation)
Dimension (WxHxD)
511.4x313.0x45.4 (mm)
20.1x12.3x1.8(inch)
Weight4.6Kg(Gross weight) , 3.2(Net weight)
Specification
