DS-7732NI-SP

DS-7732NI-SP-2U  Powerful Embedded Plug & Play series NVRs    Easy access to Full HD network surveillance  The DS-7732NI-SP-2U Embedded NVR series, featuring 16 PoE network interfaces – simultaneously providing data and power  connections over one cable to make easy ‘plug & play’ installation and configuration. In addition, the DS-7732NI-SP-2U series  support up to 5 Megapixels resolution recording, HDMI/VGA output at up to HD1080P, dual operation system design, HDD  quota management, to provide high performance and ensure high reliability.   Compact Design    Hikvision Plug & Play NVRs is adaptable in any  installation space with smaller case design  compared to traditional PC-NVR to give you more  flexibility.     Full HD    With up to 5 Megapixels resolution recording and  HDMI/VGA output at HD1080P, the DS-7608/16NI-  SP series NVRs offers full HD surveillance  experiences.     Plug & Play  Retail  Office  Education    With 16 PoE network interfaces for plug & play HD  network camera installation, the DS-7732NI-SP-  2U series NVRs allow users to ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

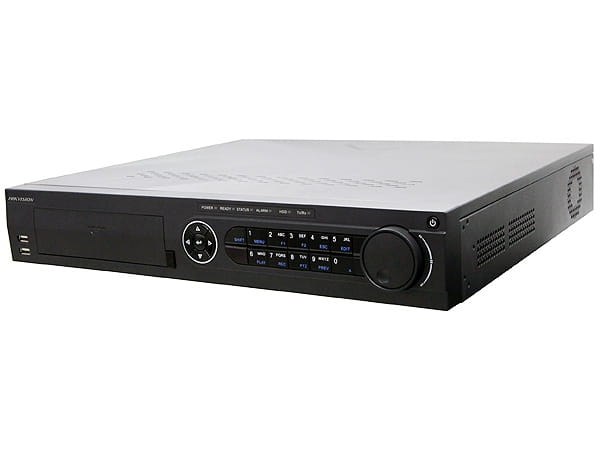

DS-7732NI-SP-2U
Powerful Embedded Plug & Play series NVRs

Easy access to Full HD network surveillance
The DS-7732NI-SP-2U Embedded NVR series, featuring 16 PoE network interfaces – simultaneously providing data and power
connections over one cable to make easy ‘plug & play’ installation and configuration. In addition, the DS-7732NI-SP-2U series
support up to 5 Megapixels resolution recording, HDMI/VGA output at up to HD1080P, dual operation system design, HDD
quota management, to provide high performance and ensure high reliability.
Compact Design

Hikvision Plug & Play NVRs is adaptable in any
installation space with smaller case design
compared to traditional PC-NVR to give you more
flexibility.

Full HD

With up to 5 Megapixels resolution recording and
HDMI/VGA output at HD1080P, the DS-7608/16NI-
SP series NVRs offers full HD surveillance
experiences.

Plug & Play
Retail
Office
Education

With 16 PoE network interfaces for plug & play HD
network camera installation, the DS-7732NI-SP-
2U series NVRs allow users to save a lot of time on
installation and configuration setting.




Embedded NVRs with PoE and Plug & Play
DS-7732NI-SP-2U
• Up to 5 megapixels resolution recording
• HDMI and VGA output at up to 1920x1080P resolution
• Plug&play with 16 independent PoE network interfaces
• HDD quota management
• IPv6 supported
• Dual system design ensures high reliability and stability
Product series line-up:
DS-7732NI-SP-2U
8 SATA interfaces embedded 2U PoE NVR

ModelDS-7732NI-SP-2U
Video / Audio input
IP video input 32-ch
Audio in1-ch, BNC (2.0 Vp-p, 1kΩ) (Two-way audio)
Video / Audio output
Encoding resolution5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Incomming Bandwidth160M
HDMI output
1-ch, resolution:
1920 x 1080P /60Hz, 1920 x 1080P /50Hz, 1600 x 1200 /60Hz,
1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
VGA output
1-ch, resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz,
1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output2-ch, BNC (Linear, 600Ω)
Playback resolution5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous playback 16-ch
Hard disk
SATA8 SATA interfaces
eSATA1 eSATA interface
CapacityUp to 4TB for each disk
External interface
Network interface
1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
8 independent 100 Mbps PoE network interfaces
PoE interface
16 independent 100 Mbps PoE network interfaces
Note: Total Power Consumption should be under 200w
Serial interface
1 RS-232 interface (for parameters configuration, maintenance, transparent channel);
1 RS-485 interface s
USB interface 3 x USB 2.0
Alarm in 16
Alarm out 4
General
Power supply100~240VAC, 50~60Hz, 6.3A
Consumption≤ 45W (without hard disk or DVD-R/W)
Working temperature -10 °C ~+55 °C
Working humidity10%~90%
Chassis19-inch rack-mounted 2U chassis
Dimensions(W x D x H) 445 x 390 x70 mm
Weight ≤ 8 Kg(17.64 lb) ( without hard disk or DVD-R/W )

Rear Panel of DS-7732NI-SP-2U
