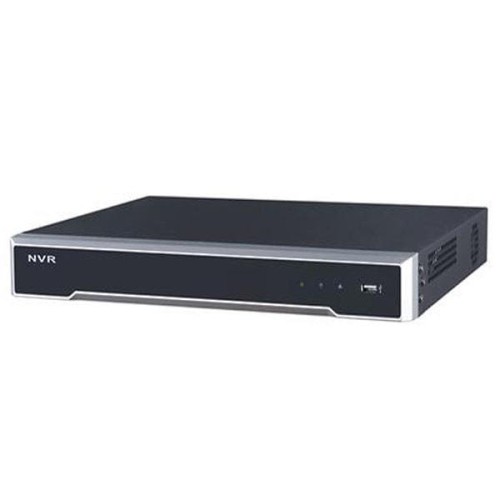

DS-7632NI-I2/16P

DS-7600NI-I2/P SERIES NVR  Professional and Reliable   Dual-OS design to ensure high reliability of system running   ANR technology to enhance the storage reliability when the network is disconnected  Video Input and Transmission   Up to 32-ch 12 MP IP cameras can be connected   Connectable to the third-party network cameras  Compression and Recording   H.264+ compression effectively reduces the storage space and costs by up to 50%   Full channel recording at up to 12MP resolution  HD Video Output   HDMI and VGA independent outputs provided   HDMI Video output at up to 4K (3840 x 2160) resolution  Storage and Playback   Up to 2 SATA interfaces connectable for recording and backup   Smart search for efficient playback   8/16-ch synchronous playback at up to 1080p resolution  Smart &POS Function   Supports multiple VCA (Video Content Analytics) events   Smart search for the selected area in the video; and smart playback to improve the playback efficiency   Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files   POS information overlay on live view and playback   POS triggered recording and alarm  Network & Ethernet Access

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-7600NI-I2/P SERIES NVR
Professional and Reliable
 Dual-OS design to ensure high reliability of system running
 ANR technology to enhance the storage reliability when the network is disconnected
Video Input and Transmission
 Up to 32-ch 12 MP IP cameras can be connected
 Connectable to the third-party network cameras
Compression and Recording
 H.264+ compression effectively reduces the storage space and costs by up to 50%
 Full channel recording at up to 12MP resolution
HD Video Output
 HDMI and VGA independent outputs provided
 HDMI Video output at up to 4K (3840 x 2160) resolution
Storage and Playback
 Up to 2 SATA interfaces connectable for recording and backup
 Smart search for efficient playback
 8/16-ch synchronous playback at up to 1080p resolution
Smart &POS Function
 Supports multiple VCA (Video Content Analytics) events
 Smart search for the selected area in the video; and smart playback to improve the playback efficiency
 Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
 POS information overlay on live view and playback
 POS triggered recording and alarm
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 Gigabit Ethernet network interface
 8/16 independent PoE network interfaces are provided

Features and Functions






Model DS-7608NI-I2/8P DS-7616NI-I2/16P DS-7632NI-I2/16P
Video/Audio
input
IP video input
8-ch 16-ch 32-ch
Up to 12 MP resolution
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 80 Mbps 160 Mbps 256Mbps
Outgoing bandwidth 256 Mbps
Remote connection 32 128
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF
/DCIF/2CIF/CIF/QCIF
CVBS output
(Optional) 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI output
resolution
4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz,
1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA output
resolution
1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view/Playback
resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF
/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch 16-ch 16-ch
Capability 2-ch @ 4K, or 8-ch @
1080p
4-ch @ 4K, or 16-ch
@ 1080p
4-ch @ 4K, or 16-ch @
1080p
Network
management Network protocols TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Hard disk
SATA 2 SATA interfaces
Capacity Up to 6TB capacity for each HDD
External
interface
Network interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm in/out 4/1
POE Interface
Interface
8 RJ-45 10/100 Mbps
self-adaptive
Ethernet interfaces
16 RJ-45 10/100 Mbps self-adaptive Ethernet
interfaces
Power ≤ 120 W ≤ 200 W
Supported standard IEEE 802.3 af/at
General
Power supply 100 to 240 VAC, 50 to 60 Hz
Power ≤ 180 W ≤ 280 W
Consumption
(without hard disk)
≤15 W (without enabling PoE)
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Chassis 385 mm chassis
Dimensions
(W x D x H)
385 x 315x 52 mm (15.2" x 12.4" x 2.0")
Weight
(without hard disk)
≤ 3 kg (6.6 lb)



Specifications



Index Description Index Description
1 AUDIO IN 7 USB 3.0 Interface
2 AUDIO OUT 8 GND
3 VGA Output (DB9 Connector) 9 100 to 240 VAC power supply
4 HDMI Interface 10 Power Switch
5 Controller Port, Alarm In/Alarm Out
11
Network Interfaces with PoE function
(8 interfaces for DS-7608NI-I2/8P and 16
interfaces for DS-7616NI-I2/16P and
DS-7632NI-I2/16P.)
6 LAN Interface
Available Models
Physical Interfaces
DS-7608NI-I2/8P, DS-7616NI-I2/16P, DS-7632NI-I2/16P
