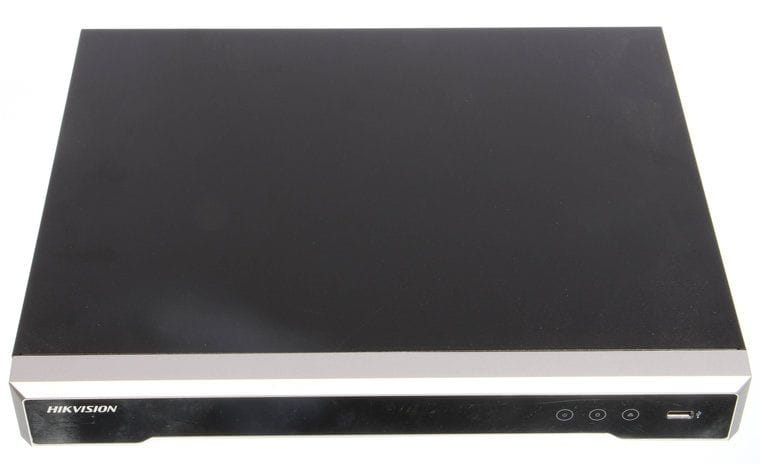

DS-7608NI-K1(B)
Description
DS-7600NI-K1/W Series Wi-Fi NVR Video Input and Transmission Up to 4/8-ch IP cameras input (max. incoming bandwidth: 50 Mbps) Live view of the connected camera at up to 5 MP resolution Compression and Recording H.264, H.265, H.264+, and H.265+ compression. Full channel recording at up to 5 MP resolution Video Output HDMI/VGA output at up to 1920 x 1080 resolution Storage and Playback 1 SATA interface for HDD with up to 6 TB capacity Up to 4/8-ch synchronous playback Smart search for efficient playback Smart Function Supports multiple VCA(Video Content Analytics) events for IP cameras Network & Ethernet Access Hik-Connect for easy network management One 100M Ethernet network interface Wi-Fi Features Provides Wi-Fi function. Wi-Fi network cameras can automatically create connection with NVR via its Wi-Fi Up to 16 terminals including mobile phone and laptop can access NVR via its Wi-Fi Dual external antenna design offers more powerful and stable signal. Features and Functions Model DS-7604NI-K1/W DS-7608NI-K1/W Video/Audio input IP video input 4-ch 8-ch Incoming bandwidth 50 Mbps...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-7600NI-K1/W Series Wi-Fi NVR
Video Input and Transmission
Up to 4/8-ch IP cameras input (max. incoming bandwidth: 50 Mbps)
Live view of the connected camera at up to 5 MP resolution
Compression and Recording
H.264, H.265, H.264+, and H.265+ compression.
Full channel recording at up to 5 MP resolution
Video Output
HDMI/VGA output at up to 1920 x 1080 resolution
Storage and Playback
1 SATA interface for HDD with up to 6 TB capacity
Up to 4/8-ch synchronous playback
Smart search for efficient playback
Smart Function
Supports multiple VCA(Video Content Analytics) events for IP cameras
Network & Ethernet Access
Hik-Connect for easy network management
One 100M Ethernet network interface
Wi-Fi Features
Provides Wi-Fi function. Wi-Fi network cameras can automatically create connection with NVR via its Wi-Fi
Up to 16 terminals including mobile phone and laptop can access NVR via its Wi-Fi
Dual external antenna design offers more powerful and stable signal.
Features and Functions
Model DS-7604NI-K1/W DS-7608NI-K1/W
Video/Audio
input
IP video input 4-ch 8-ch
Incoming bandwidth 50 Mbps
Video/Audio
output
HDMI/VGA output
1-ch, resolution: 1920 x 1080/60Hz, 1600 x 1200/60Hz,
1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (linear, 1 KΩ)
Decoding
Recording resolution 5 M/4 M/3 M/1080p/1.3 M/720p
Synchronous playback 4-ch 8-ch
Capacity 4-ch@1080p
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Wireless
parameters
Frequency band 2.4 GHz
Antenna structure
2*2MIMO. External antennas. PA and LNA modules are
supported.
Transmission speed 300 Mbps
Transmission standard IEEE 802.11b/g/n
External
interface
Network interface 1, RJ45 100M Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDDs)
≤ 18 W
Working temperature -10 °C to +55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions
(W x D x H)
205 x 205 x 45 mm (8.1 x 8.1 x 1.8 in)
Weight (without HDDs) ≤ 1 kg (2.2 lb)
Specifications
Physical Interfaces
No. Name No. Name
1 Wi-Fi antenna 6 LAN
2 Power supply 7 Wi-Fi antenna
3 Audio out 8 USB
4 VGA interface 9 Ground
5 HDMI interface
Available Models
DS-7604NI-KI/W,
DS-7608NI-KI/W
030493170523
