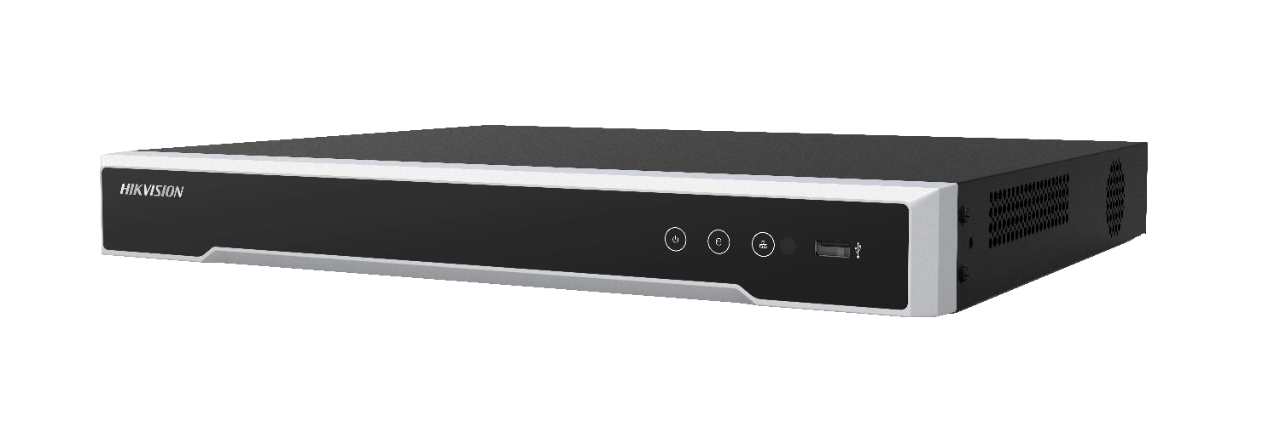

DS-7608NI-K1/8P(C)/alarm
Description
Key Feature Up to 8-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@8 MP/5-ch@1080p decoding capacity Up to 80 Mbps incoming bandwidth Professional and Reliability H.265+ compression effectively reduces the storage space by up to 75% HD Video Output Provide simultaneous HDMI and VGA outputs HDMI video output at up to 4K resolution Storage and Playback 1 SATA interface for HDD connection (up to 8 TB capacity per HDD) Smart search/smart playback to improve the playback efficiency Smart Function Support multiple VCA (Video Content Analytics) events Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting Network & Ethernet Access 8 independent PoE network interfaces 1 self-adaptive 10/100/1000 Mbps Ethernet interface Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management DS-7608NI-K1/8P NVR Specification Model DS-7608NI-K1/8P Video and Audio IP video input 8-ch Up to 8 MP resolution Incoming bandwidth 80 Mbps Outgoing ba...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Feature
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/5-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Professional and Reliability
H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
Provide simultaneous HDMI and VGA outputs
HDMI video output at up to 4K resolution
Storage and Playback
1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
Smart search/smart playback to improve the playback efficiency
Smart Function
Support multiple VCA (Video Content Analytics) events
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting
Network & Ethernet Access
8 independent PoE network interfaces
1 self-adaptive 10/100/1000 Mbps Ethernet interface
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
DS-7608NI-K1/8P NVR
Specification
Model DS-7608NI-K1/8P
Video and Audio
IP video input
8-ch
Up to 8 MP resolution
Incoming bandwidth 80 Mbps
Outgoing bandwidth 80 Mbps
HDMI output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video output mode HDMI/VGA simultaneous output
CVBS output N/A
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection 64
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75 W
Supported standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
Alarm in/out N/A (4/1 is optional)
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
General
Power supply 48 VDC, 1.88 A
Consumption
(without HDD and PoE off)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 320 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
Certification
Dimension
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Physical Interface
No. Description No. Description
1 PoE Interfaces 6 VGA Output (DB9 Connector)
2 LAN Interface 7 USB Interface
3 AUDIO OUT 8 Power Supply
4 AUDIO IN 9 Power Switch
5 HDMI Interface 10 GND
Available Model
DS-7608NI-K1/8P
04302102010708
