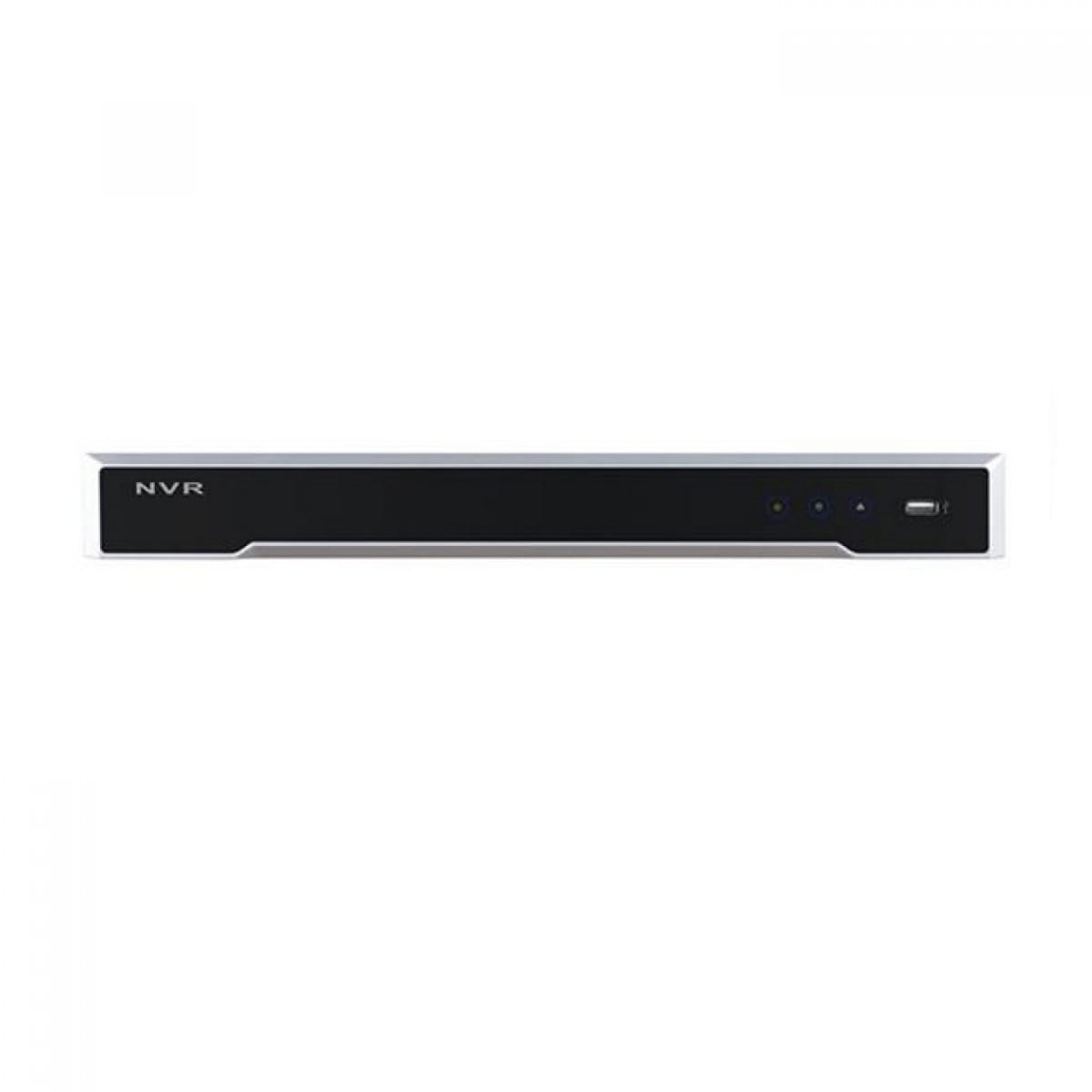

DS-7608NI-I2

Availability: 0

Price: €565.75 565.75

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 303602910

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Hikvision USA Inc.,18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2016 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 090816NA
DS-7600NI-I2/P Series
Plug and Play Network Video Recorder

Key Features
Up to 12 MP Resolution Recording
Up to 16 IP Cameras Can Be Connected
H.265/H.264+/H.264/MPEG4 Compression
HDMI Video Output up to 4K (3840 x 2160)
Plug and Play with up to 8 or 16 Independent PoE
Network Connections
80 Mbps/160 Mbps Incoming Bandwidth
Up to 2 SATA Interfaces
Smart Search and Smart Playback
Alarm and Audio I/O
Physical Interfaces

Description
1 AUDIO IN, RCA connector for audio input
2 AUDIO OUT, RCA connector for audio output
3 DB-15 connector for VGA output to display local video output and menu
4 HDMI video output connector
5 Controller port, alarm in/alarm out
6 LAN, 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
7 USB 3.0 port
8 GND
9 100 to 240 VAC power supply
10 Power switch
11 Network interfaces with PoE function
(8 interfaces for DS-7608NI-I2/8P and 16 interfaces for DS-7616NI-I2/16P)
DS-7608NI-I2/8P Order Model
DS-7608NI-I2/8P
DS-7616NI-I2/16P

DS-7616NI-I2/16P

DS-7608NI-I2/8P DS-7616NI-I2/16P
Video/Audio Input
IP Video Input
8-ch 16-ch
Up to 12 MP resolution
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 80 Mbps 160 Mbps
Outgoing Bandwidth 256 Mbps
Remote Connection 128
Video/Audio Output
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
HDMI Output Resolution
4K (3840 x 2160), 2K (2560 x 1440), 1920 x
1080p, 1600 x 1200, 1280 x 1024, 1280 x 720,
1024 x 768
VGA Output Resolution
1920 x 1080p, 1280 x 1024, 1280 x 720, 1024 x
768
Audio Output 1-ch, RCA (linear, 1 kΩ)
Decoding
Decoding Format H.265/H.264/MPEG4
Live View/Playback
Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/
QCIF
Synchronous Playback 8-ch 16-ch
Capability
2-ch @ 4K, or 8-ch @
1080p
4-ch @ 4K, or 16-ch @
1080p
Hard Disk
SATA 2 SATA interfaces for 2HDDs
Capacity Up to 6 TB capacity for each HDD
External Interface
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface
USB Interface Front panel: 1 x USB 2.0; rear panel: 1 x USB 3.0
Alarm In/Out 4/1
Poe Interface
Interface
8 RJ-45 10/100 Mbps
self-adaptive Ethernet
interfaces
16 RJ-45 10/100 Mbps
self-adaptive Ethernet
interfaces
Power ≤120 W ≤200 W
Supported Standards IEEE 802.3 af/at
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power ≤180 W ≤280 W
Consumption (w/o HDD) ≤15 W (without enabling PoE)
Working Temperature -10 to +55° C (14 to 131° F)
Working Humidity 10% to 90%
Chassis 380 mm (15") chassis
Dimensions (W x D x H) 380 mm x 290 mm x 45 mm (15.0" x 11.4" x 1.8")
Weight (w/o HDD) ≤3 kg (6.6 lb)

91
4
6
2 3 7
8 10
IN OUT
1 2 3 4 G G 1 G
ALARM
11
5
