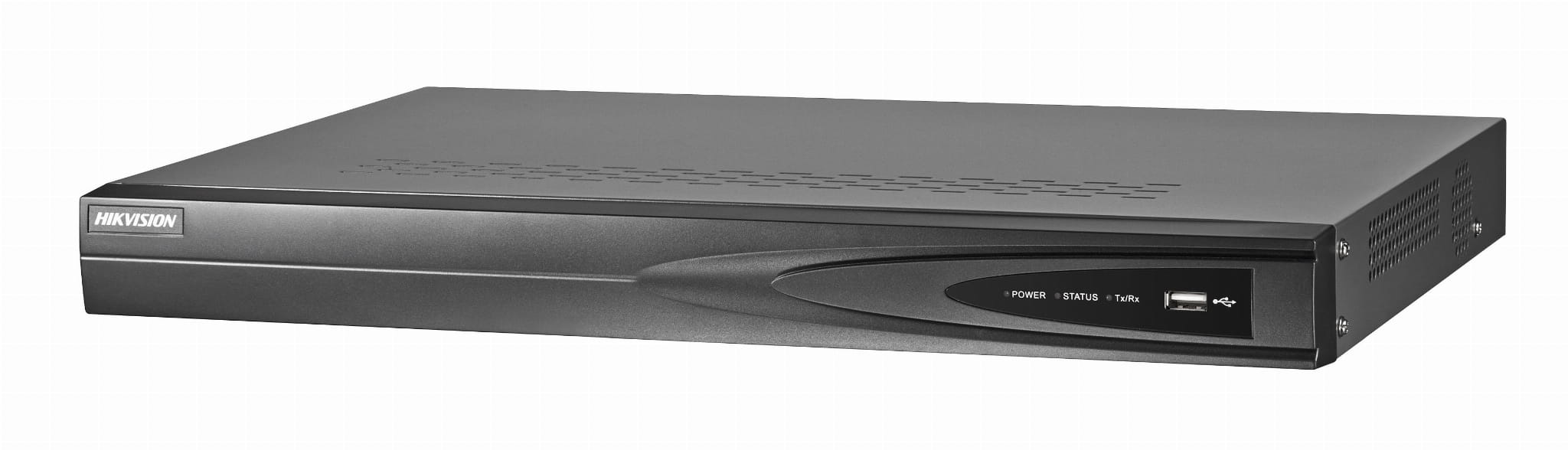

DS-7604NI-Q1/4P
Description
DS-7600NI-Q1/P SERIES NVR HD Input H.265+/H.265/H.264/H.264+ video formats Connectable to the third-party network cameras Up to 8 IP cameras can be connected Recording at up to 8 MP resolution Supports live view, storage, and playback of the connected camera at up to 8 MP resolution HD Output HDMI/VGA simultaneous output (DS-7604NI-Q1/4P) HDMI and VGA independent outputs (DS-7608NI-Q1/8P) HDMI Video output at up to 4K (3840 x 2160) resolution HD Storage 1 SATA interface connectable for recording and backup H.265+ compression effectively reduces the storage space and costs by up to 75% HD Transmission 1 self-adaptive 10/100/1000 Mbps network interface 4/8 independent PoE network interfaces are provided Various Applications Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc. Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized VCA detection alarm is supported Instant playback for assigned channel during multi-channel display mode Smart search for the se...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-7600NI-Q1/P SERIES NVR
HD Input
H.265+/H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
Up to 8 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA simultaneous output (DS-7604NI-Q1/4P)
HDMI and VGA independent outputs (DS-7608NI-Q1/8P)
HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
1 SATA interface connectable for recording and backup
H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
1 self-adaptive 10/100/1000 Mbps network interface
4/8 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Hik-Connect for easy network management
Features and Functions
Model DS-7604NI-Q1/4P DS-7608NI-Q1/8P
Video/Audio
input
IP video input
4-ch 8-ch
Up to 8 MP resolution
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 40 Mbps 80 Mbps
Outgoing bandwidth 80 Mbps
Video/Audio
output
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output
resolution
1-ch, 4K (3840 x 2160)/30Hz,
1920 x 1080p/60Hz, 1600 x
1200/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz,
1024 x 768/60Hz;
HDMI/VGA simultaneous
output
1-ch, 4K (3840 x
2160)/30Hz, 1920 x
1080p/60Hz, 1600 x
1200/60Hz, 1280 x
1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA output
resolution
1-ch, 1920 x 1080p/60Hz,
1600 x 1200/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz,
1024 x 768/60Hz ;
HDMI/VGA simultaneous
output
1-ch, 1920 x 1080p/60Hz,
1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 4-ch 8-ch
Capability 1-ch @ 8 MP / 4-ch @ 1080p
Network
management Network protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External
interface
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface 2 x USB 2.0
POE Interface
Interface
4, RJ-45 10/100 Mbps
self-adaptive Ethernet
interface
8, RJ-45 10/100 Mbps
self-adaptive Ethernet
interface
Power ≤ 50W ≤ 75W
Standard IEEE 802.3 af/at
General
Power supply 48 VDC
Power ≤ 65 W ≤ 90 W
Consumption(without hard disk) ≤ 10 W (without enabling PoE)
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Chassis 1U chassis
Dimensions(W x D x H) 315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight(without hard disk) ≤ 1 kg (2.2 lb)
Specifications
Index Description Index Description
1
Network Interfaces with PoE function
(4 interfaces for DS-7604NI-Q1/4P and 8
interfaces for DS-7608NI-Q1/8P))
6 LAN Network Interface
2 AUDIO IN 7 USB 2.0 Interface.
3 AUDIO OUT 8 48VDC power supply
4 VGA Interface 9 Power Switch
5 HDMI Interface 10 GND
Physical Interfaces
Available Models
DS-7604NI-Q1/4P, DS-7608NI-Q1/8P
