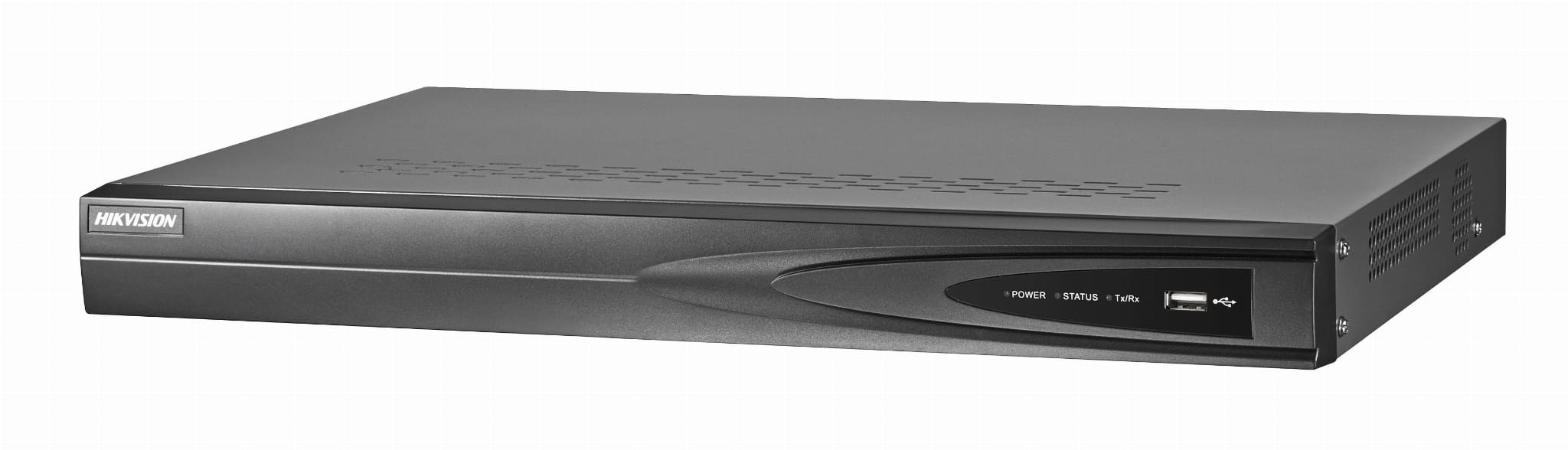

DS-7604NI-Q1
Description
DS-7600NI-Q1 SERIES NVR HD Input H.265+/H.265/H.264/H.264+ video formats Connectable to the third-party network cameras Up to 16 IP cameras can be connected Recording at up to 8 MP resolution Supports live view, storage, and playback of the connected camera at up to 8 MP resolution HD Output HDMI/VGA simultaneous output (DS-7604NI-Q1) HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1) HDMI Video output at up to 4K (3840 x 2160) resolution HD Storage 1 SATA interface connectable for recording and backup H.265+ compression effectively reduces the storage space and costs by up to 75% HD Transmission 1 self-adaptive 10/100/1000 Mbps network interface Various Applications Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc. Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized VCA detection alarm is supported Instant playback for assigned channel during multi-channel display mode Smart search for the selected area in the video; and smart playback to i...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-7600NI-Q1 SERIES NVR
HD Input
H.265+/H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
Up to 16 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA simultaneous output (DS-7604NI-Q1)
HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)
HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
1 SATA interface connectable for recording and backup
H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
1 self-adaptive 10/100/1000 Mbps network interface
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Hik-Connect for easy network management
Features and Functions
Model DS-7604NI-Q1 DS-7608NI-Q1 DS-7616NI-Q1
Video/Audio
input
IP video input
4-ch 8-ch 16-ch
Up to 8 MP resolution
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 40 Mbps 80 Mbps 160 Mbps
Outgoing bandwidth 80 Mbps
Video/Audio
output
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
HDMI output
resolution
1-ch, 4K (3840 x 2160)/30Hz,
1920 x 1080p/60Hz, 1600 x
1200/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz;
HDMI/VGA simultaneous
output
1-ch, 4K (3840 x 2160)/30Hz, 1920 x
1080p/60Hz, 1600 x 1200/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
VGA output
resolution
1920 x 1080p/60Hz, 1600 x
1200/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz; HDMI/VGA
simultaneous output
1-ch, 1920 x 1080p/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback
resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous
playback 4-ch 8-ch 16-ch
Capability 1-ch @ 8 MP / 4-ch @ 1080p
Network
management Network protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External
interface
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface 2 x USB 2.0
General
Power supply 12 VDC
Power ≤ 18W
Consumption
(without hard disk)
≤ 10 W
Working
temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Chassis 1U chassis
Dimensions
(W x D x H)
315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight(without hard
disk) ≤ 1 kg (2.2 lb)
Specifications
Index Description Index Description
1 Power Supply 6 VGA Interface
2 Audio In 7 USB Interface
3 HDMI Interface 8 Ground
4 LAN Network Interface 9 Power Switch
5 Audio Out
DS-7604NI-Q1, DS-7608NI-Q1, DS-7616NI-Q1
Physical Interfaces
030402160113
Available Models
030492170314
030496170830
