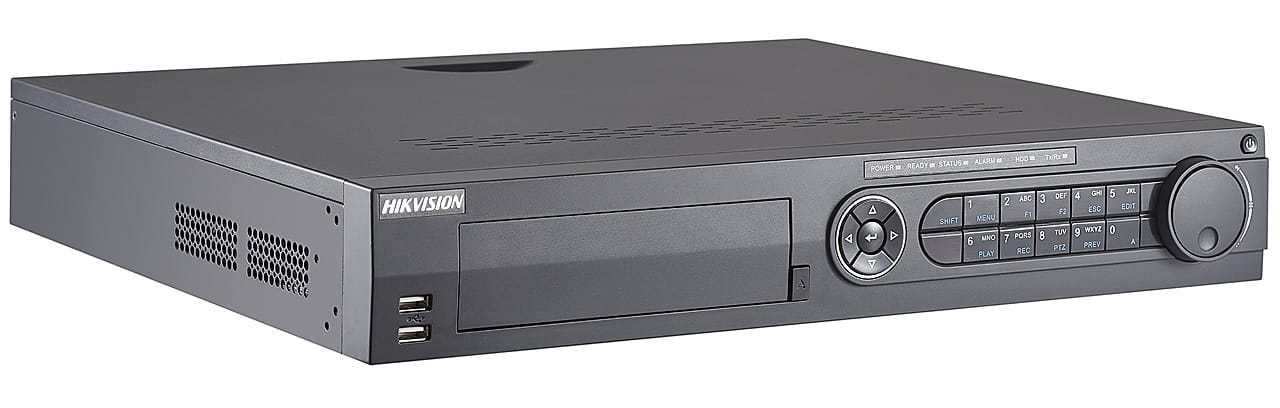

DS-7316HTHI-K4(STD)

Availability: 0

Price: €1,895.83 1895.83

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300223589

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Feature
 Support H.265 Pro+/H.265 Pro/H.265 video compression
 Support HDTVI/AHD/CVI/CVBS/IP video input
 Up to 32-ch IP camera input (up to 8 MP)
 Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
transmission
 Up to 10 TB capacity per HDD
 Support POS triggered recording and POS information overlay

Compression and Recording
 H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs
 Full channel recording at up to 8 MP resolution
Storage and Playback
 4 SATA interfaces and 1 eSATA interface
 Smart search for efficient playback
 Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
 Hot-swappable HDD supports RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
Smart Function
 Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Configurable output bandwidth limit
DS-7316HTHI-K4 TURBO HD DVR

Specification
Model DS-7316HTHI-K4
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
8 MP@12 fps/5 MP@20 fps; 3 MP@18fps;
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 16 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
16-ch (up to 32-ch)
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
HDCVI input 4 MP, 720p25, 720p30, 1080p25, 1080p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
HDMI1/VGA output 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
HDMI2 output
1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1280 x
1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 2-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous playback 16-ch
Network
Remote connections 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF, SNMP
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA 4, SATA interface
eSATA 1, eSATA interface
Capacity Up to 10 TB capacity for each disk
Serial interface RS-232, RS-485 (full-duplex), Keyboard
Alarm in/out 16/4

USB interface
Front panel: 2 x USB 2.0
Rear panel: 1 x USB 3.0
General
Power supply 100 to 240 VAC
Consumption
(without HDD)
≤ 45 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 445 x 390 x 70 mm (17.5 x 15.4 x 2.8 inch)
Weight (without HDD) ≤ 6 kg (13.2 lb)

Physical Interface

Available Model
DS-7316HTHI-K4

Index Description Index Description
1 VIDEO IN 9
RS-485 Serial Interface, Keyboard Interface,
ALARM IN and ALARM OUT
2 VIDEO OUT 10 100 to 240 VAC Power Input
3 AUDIO IN, RCA Connector 11 Power Switch
4 USB Interface 12 GND
5 HDMI1/VGA Interface 13 LINE IN
6 HDMI2 Interface 14 eSATA Interface
7 CVBS AUDIO OUT and VGA AUDIO OUT 15 RS-232 Serial Interface
8 LAN1 and LAN2 Network Interfaces

04021001081105
