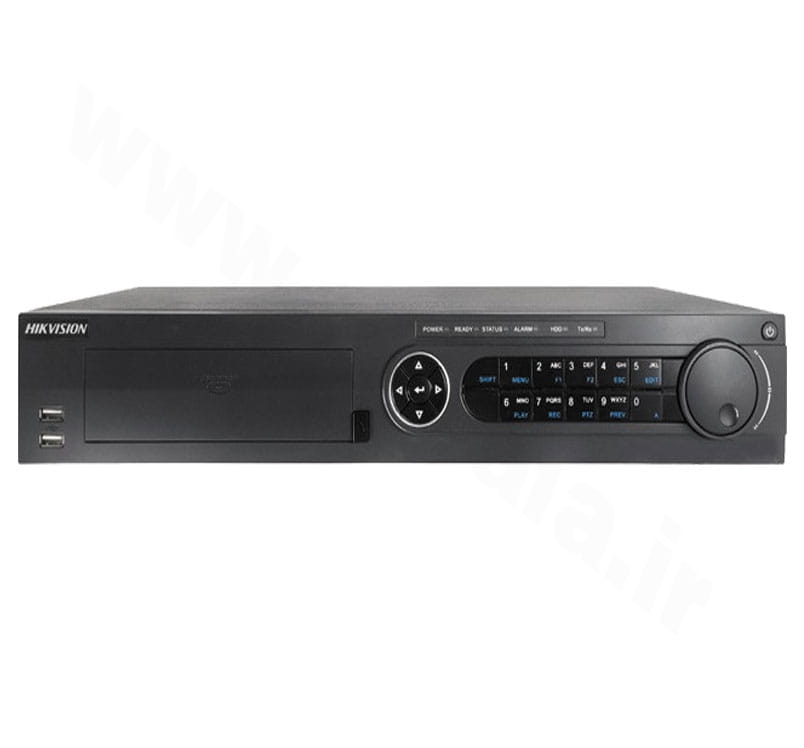

DS-7304HQHI-SH

Availability: 0

Price: €763.38 763.38

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300213280

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-7300HQHI-SH SERIES TURBO HD DVR
Video Input and Transmission
 Connectable to HDTVI and analog cameras
 Up to 6/10/18-ch 1080p IP cameras input for DS-7304/7308/7316HQHI-SH
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 Full channel recording at up to 1080p resolution
Video Output
 Simultaneous HDMI/VGA output at up to 1920x1080 resolution
 Independent CVBS output improves compatibility at the most possibility
Storage and Playback
 Four SATA interfaces (up to 6 TB capacity per HDD) and 1 eSATA interface
 4/8/16-ch synchronous playback at up to 1080p resolution
 Smart search for efficient playback
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 VQD (Video Quality Diagnostics)
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 One gigabit Ethernet network interface

Features and Functions

Model

DS-7304HQHI-SH DS-7308HQHI-SH DS-7316HQHI-SH
Video/Audio
input
Video compression H.264
Analog and HDTVI
video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Supported camera
types
720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, CVBS
IP video input
2-ch (up to 6-ch) 2-ch (up to 10-ch) 2-ch (up to 18-ch)
Up to 1080p resolution
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA output 1920 x 1080/60Hz ,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding resolution 1080p/720p/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
1080p/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps;
CIF/QCIF/QVGA@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 2-ch, RCA (Linear, 1 KΩ, for VGA and CVBS output respectively)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Network
management
Remote connection 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP,
NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 6 TB capacity for each disk
External
interface
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface 1, 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB interface 3 x USB 2.0
Alarm in/out 16/4
General
Power supply 100 to 240 VAC
Consumption
(without HDD)
≤ 30 W ≤ 40 W ≤ 55 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
445 x 390 x 70 mm (17.5 x 15.3 x 2.7 inch)
Weight
(without HDD)
≤ 5 kg (11.0 lb)
Specifications

Index Description Index Description
1 VIDEO IN 9
RS-485 Serial Interface, Keyboard Interface,
ALARM IN and ALARM OUT
2 VIDEO OUT 10 100 to 240 VAC Power Input
3 AUDIO IN, RCA Connector 11 Power Switch
4 USB Interface 12 GND
5 HDMI Interface 13 LINE IN
6 VGA Interface 14 eSATA Interface
7 CVBS AUDIO OUT and VGA AUDIO OUT 15 RS-232 Serial Interface
8 LAN Network Interface
DS-7304HQHI-SH, DS-7308HQHI-SH, DS-7316HQHI-SH
Physical Interfaces
0303031061122
Available Models

The rear panel of DS-7304/7308HQHI-SH provides 4/8 video input interfaces.
