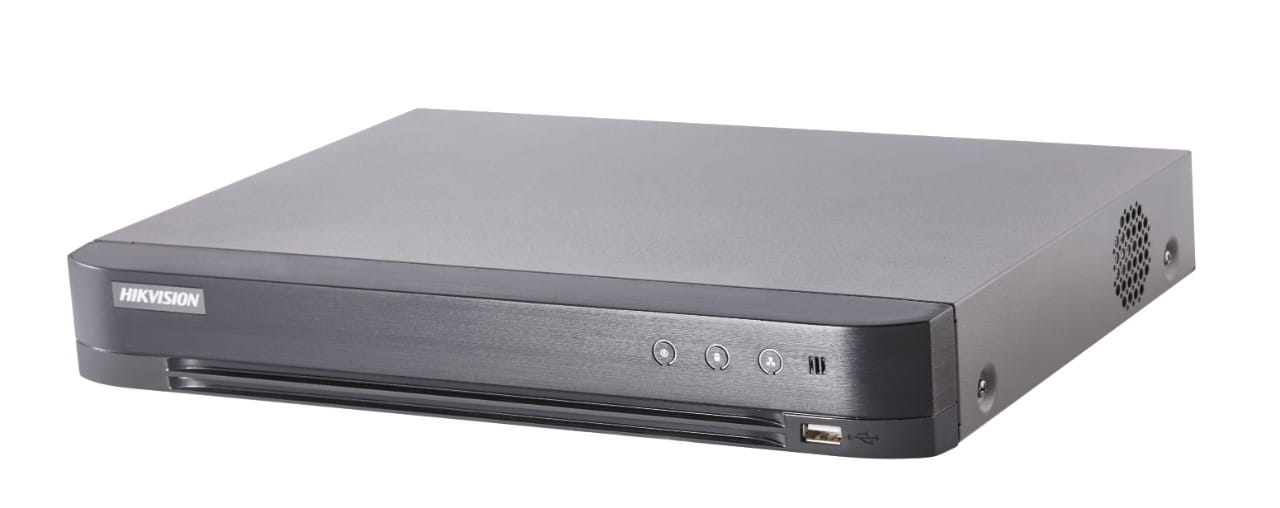

DS-7204HQHI-K1/E(STD)(C)(S)
Description
Key Feature Support H.265 Pro+/H.265 Pro/H.265 video compression Support HDTVI/AHD/CVI/CVBS/IP video input Max. 6-ch IP cameras input (up to 6 MP) Up to 10 TB capacity per HDD Compression and Recording H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 4 MP lite resolution Storage and Playback Smart search for efficient playback Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Support 4-ch line crossing detection and intrusion detection Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Output bandwidth limit configurable DS-7204HQHI-K1/B TURBO HD DVR Specification Model DS-7204HQHI-K1/B Recording Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding resolution When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/7...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Feature
Support H.265 Pro+/H.265 Pro/H.265 video compression
Support HDTVI/AHD/CVI/CVBS/IP video input
Max. 6-ch IP cameras input (up to 6 MP)
Up to 10 TB capacity per HDD
Compression and Recording
H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Full channel recording at up to 4 MP lite resolution
Storage and Playback
Smart search for efficient playback
Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Support 4-ch line crossing detection and intrusion detection
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Output bandwidth limit configurable
DS-7204HQHI-K1/B
TURBO HD DVR
Specification
Model DS-7204HQHI-K1/B
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access: 4 MP lite@15fps;
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps
(P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps
(N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
2-ch (up to 6-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch
Balun interface, supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
*: The 3 MP signal input is only available for channel 1.
AHD input 4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch
Network
Remote connections 32
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Rear panel: 2 x USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 6 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 260 x 222 x 45 mm (10.2 x 8.7 x 1.8 inch)
Weights (without HDD) ≤ 1.16 kg (2.6 lb)
Physical Interface
No. Description No. Description
1 RS-485 Serial Interface 7 AUDIO OUT, RCA Connector
2 VIDEO IN, Balun Interface 8 LAN Interface
3 VIDEO OUT 9 USB Interface
4 HDMI Interface 10 12 VDC Power Input
5 VGA Interface 11 GND
6 AUDIO IN, RCA Connector
Available Model
DS-7204HQHI-K1/B
