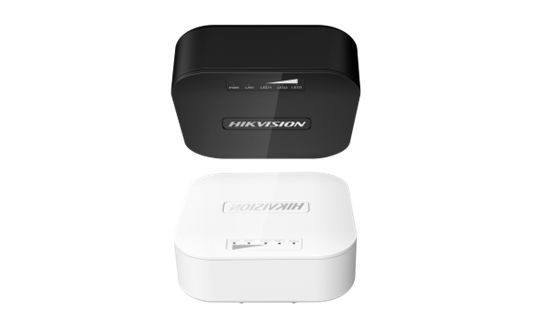

DS-3WF0AC-2NT

Availability: 0
Price: €82.32 82.32
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301801406

Description

DS-3WF0AC-2NT  Elevator Wireless Bridge    DS-3WF0AC-2NT wireless bridge can be applied to  elevator internal CCTV system. It can transfer CCTV data  through wireless signal instead of cable, which can  reduce the cost.        Feature and Function  • Up to 100 m wireless transmission distance  • Special design for CCTV scenario with smooth video transmission  • Easy configuration through web interface  • Dual power supply mode options makes installation more flexible  • Signal indicator helps to find the best installation position and direction  • 300 Mbps 802.11n wireless  • Built-in 8 dBi 2 x 2 MIMO Antenna  • Ideal solution for elevator connection  Package Content  • DS-3WF0AC-2NT  • Power Adapter (12V, 1A)  • PoE Injector  • Pole Mounting Straps  • Quick Start Guide        Specification  Model DS-3WF0AC-2NT  Wireless  Standard IEEE 802.11 b/g/n  Operating frequency  2412~2472 MHz (Note: Available channel may vary depending on local  regulations)  Antenna Internal, Gain 8 dBi, Horizontal: 60° Vertical: 30°  Output Power  20 dBm (Note: Maximum output power may vary in different channels  depending on local regulations)

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-3WF0AC-2NT
Elevator Wireless Bridge

DS-3WF0AC-2NT wireless bridge can be applied to
elevator internal CCTV system. It can transfer CCTV data
through wireless signal instead of cable, which can
reduce the cost.



Feature and Function
• Up to 100 m wireless transmission distance
• Special design for CCTV scenario with smooth video transmission
• Easy configuration through web interface
• Dual power supply mode options makes installation more flexible
• Signal indicator helps to find the best installation position and direction
• 300 Mbps 802.11n wireless
• Built-in 8 dBi 2 x 2 MIMO Antenna
• Ideal solution for elevator connection
Package Content
• DS-3WF0AC-2NT
• Power Adapter (12V, 1A)
• PoE Injector
• Pole Mounting Straps
• Quick Start Guide



Specification
Model DS-3WF0AC-2NT
Wireless
Standard IEEE 802.11 b/g/n
Operating frequency
2412~2472 MHz (Note: Available channel may vary depending on local
regulations)
Antenna Internal, Gain 8 dBi, Horizontal: 60° Vertical: 30°
Output Power
20 dBm (Note: Maximum output power may vary in different channels
depending on local regulations)
Receive sensitivity -92±1.5 dBm@1 Mbps, -72±1.5 dBm@ MSC7
Wireless Link Rate 300 Mbps
Maximum power consumption 2.8 W
Hardware
Power supply 12 V/1 A passive PoE or 12 V/1 A DC
Passive PoE power supply distance Up to 60 meters with Cat.5e or better
Interface 10/100 M Base-TX x 1
Reset Button 1
LED Indicator 1 x Power LED, 1 x LAN port LED, 3 x Signal strength LEDs(LED1, LED2, LED3)
Operating Temperature -30°C ~ 55°C (-22°F ~131°F)
Storage Temperature -30°C ~ 70°C (-22°F ~158°F)
Operating Humidity 10% - 90% RH (non-condensing)
Storage Humidity 10% - 90% RH (non-condensing)
Dimension 193.5mm x 80mm x 67.5mm
Net Weight 0.69 kg
Gross Weight 0.77 kg
Software
Encryption WPA-PSK, WPA2-PSK
Working Scenarios AP, CPE
Transparent Bridge Support
SSID Hide Support
SSID Quantity 1
Default Login IP AP default IP 192.168.1.35, CPE default IP 192.168.1.36
Default User Name admin
Diagnostics Tool Signal Scanning
Device Management HTTPS, SSH
Log Function System log check
Configuration Management Support web configuration
Firmware Update Support firmware update by web page
Bandwidth 20 M/40 MHz



Physical Interface

SN Port/Button Description

Power jack.
Use the included power adapter to connect this jack to a power source for power supply.
②NI
UVWVVTWVXWUNWUWTWVWTW
 To supply power to the device over the Ethernet cable, connect this port to the PoE port of
the included PoE injector.

 When the device is powered on using the included DC power adapter, you can connect this
port to an Ethernet device for data transmission.

③VW
Reset Button. After the device is powered on for about 1 minute, hold down this button for
about 8 seconds. When all the LED indicators on the device light up, the device is restored to
factory settings.






Available Model
• DS-3WF0AC-2NT in pairs

Dimension (unit: mm)





Typical Application
