DS-3WF02C-5N/O

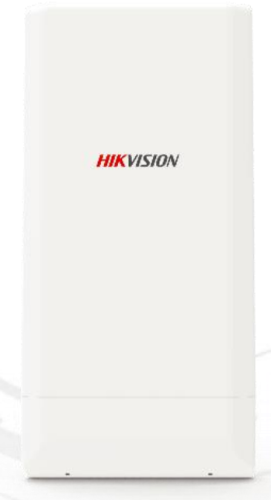

Outdoor Wireless Bridge

DS-3WF02C-5N/O wireless bridge can be applied in
industries, such as wireless video surveillance, railway,
transportation, power and other industries, wireless
video/data transmission, wireless coverage, carrier
wireless backbone network construction, Wi-Fi wireless
coverage, rural information construction, and wireless
network coverage. The long-distance transmission of the
device can guarantee multi-channel HD video
transmission.


Feature and Function
• Up to 5 km wireless transmission distance.
• 300 Mbps 802.11n wireless.
• Built-in 10 dBi 2x2 MIMO antenna.
• Point-to-Point, Point-to-Multipoint.
• Smooth video enhanced by TDMA technology.

Package Content
• DS-3WF02C-5N/O
• Power Adapter (24 V, 0.5 A)
• Power Cord
• Hoop
• Quick Start Guide






Specification
Model DS-3WF02C-5N/O
Wireless
Standard IEEE802.11 a/n
Operating frequency
5180~5825 MHz (Note: Available channel may vary depending on local
regulations)
Modulation 802.11 a/n: OFDM
Antenna Gain: 10 dBi, H: 60°, V: 16°
Output power
24 dBm (Note: Maximum output power may vary in different channels
depending on local regulations)
Receive sensitivity -85 dBm@MCS0, -67 dBm@MCS7
Max transmission rate 300 Mbps
Maximum power consumption 9.1W
Hardware
Power supply 24 V/0.5 A Passive PoE
Passive PoE power supply distance Up to 60 meters with Cat.5e or better
Interface 10/100 Mbps Base-TX x 2
Operating temperature -30°C ~75°C (-22°F ~167°F)
Storage temperature -40°C ~85°C (-40°F ~185°F)
Operating humidity 5%~95%RH non-condensing
Dimensions 200mm x 98.8mm x 45.5mm (7.9x3.9x1.8 in)
LED indicator Power indicator / LAN / WLAN / signal strength indicator
Net weight 246.5g
Gross weight 748.0g
Software
Encryption WPA-PSK/WPA2-PSK
Security IP/MAC filter, SSID hidden
Network protocol TCP/UDP/ARP/ICMP/HTTP/NTP
Management and Logs NTP, Syslog, SNMP
Configuration Management Support web configuration, Support SNMP management
Firmware update Support update firmware by Web page
Bandwidth 20 M/40 MHz





Physical Interface

Physical Interface Description
LAN
The reserved network port can be connected to front-end
network devices such as IPC.
Reset Used to restore the default factory settings.
POE
The network cable is connected to the “POE” on the PoE
power module to provide power and data transmission to the
device.

Indicator Description

Indicator Description

Power indicator.
If the green light is steady on, it indicates that the power is on.
LAN
Network connection light.
The light indicates there is one IPC or other network device
connects to the LAN port of PoE adapter.
Blinking means sending data.
WLAN
Wireless indicator light.
The light indicates that the wireless is enabled.
Blinking means sending data.


Signal strength indicator light.
Red light on, indicating that the signal is weak or no signal.
Yellow and red lights on, indicating signal level is medium.
Green, yellow and red lights on, indicating the wireless signal
level is strong





Available Model
• DS-3WF02C-5N/O

Dimension (unit: mm)







Typical Application
