DS-3T0306HP-E/HS

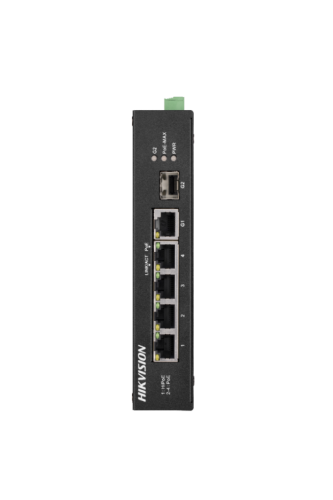

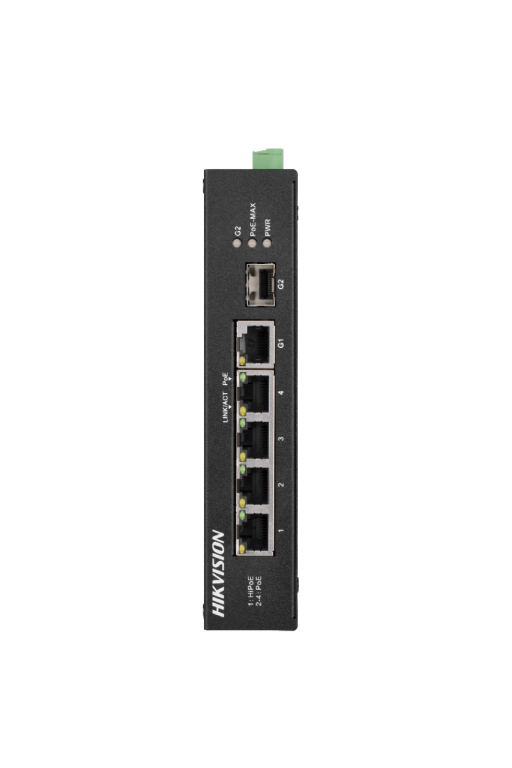

DS-3T0306HP-E/HS  4-Port 100M Unmanaged Hi-PoE Switch      Key Feature  • 3 x 100M PoE ports, 1 x Hi-PoE port, 1 x gigabit RJ45 port and 1 x gigabit SFP Fiber Optical Port.  • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).  • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.  • 6 KV surge protection for PoE ports.  • Up to 300 m long-range transmission.  • PoE watchdog to auto detect and restart the cameras that do not respond.  • Port isolation to improve network security.  • Wire-speed forwarding.  • Wider temperature (-30 to 65 °C) design.  • Store-and-forward switching.  • Solid high-strength metal shell.  • Reliable fan-free design.              DS-3T0306HP-E/HS switches are layer 2 Hi-PoE switches,  providing advanced PoE power supply technology and  wider temperature (-30 to 65 °C) design on the basis of  high-performance access to ensure stable data upload.  The switches support Hi-PoE, long range, port isolation,  and PoE watchdog function.            Specification  Model DS-3T0306HP-E/HS  Network  parame...

Warning! Product withdrawn from production!

Replacement product: DS-3T1306P-SI/HS

Replacement product code: 301802344

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-3T0306HP-E/HS
4-Port 100M Unmanaged Hi-PoE Switch


Key Feature
• 3 x 100M PoE ports, 1 x Hi-PoE port, 1 x gigabit RJ45 port and 1 x gigabit SFP Fiber Optical Port.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Wire-speed forwarding.
• Wider temperature (-30 to 65 °C) design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.






DS-3T0306HP-E/HS switches are layer 2 Hi-PoE switches,
providing advanced PoE power supply technology and
wider temperature (-30 to 65 °C) design on the basis of
high-performance access to ensure stable data upload.
The switches support Hi-PoE, long range, port isolation,
and PoE watchdog function.





Specification
Model DS-3T0306HP-E/HS
Network
parameters
Port number
3 x 100M PoE ports, 1 x Hi-PoE port, 1 x gigabit RJ45 port and 1 x
gigabit SFP Fiber Optical Port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode
Standard mode (default), Extend mode, Isolation mode, PoE
watchdog mode
Ports for long-distance
transmission
Ports 3 and 4
MAC address table 2 K
Switching capacity 4.8 Gbps
Packet forwarding rate 3.5712 Mpps
Internal cache 1.0 Mbits
PoE power
supply
PoE standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
PoE port Ports 2 to 4
Hi-PoE port Port 1
Max. port power
Port 1: 60 W
Ports 2 to 4: 30 W
PoE power budget 60 W
Dialing function Long range Ports 3 and 4: up to 300 m.
Port isolation Ports 1 to 4: port isolation mode to improve network security.
PoE watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.
General
Shell Metal material, fan-free design
Gross weight 0.915 kg (2.02 lb)
Net weight 0.35 kg (0.77 lb)
Dimension (L x H x D) 158 mm x 101.2 mm x 31.6 mm (6.22” x 3.98” x 1.24”)
Operating temperature -30 °C to 65 °C (-22 °F to 149°F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 to 57 VDC, 1.35 A Max.
Power consumption in idle < 5 W
Max. power consumption 65 W
Power source 65 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-
LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)




Physical Interface
Front panel:

Back panel:


Available Model
DS-3T0306HP-E





Dimension (unit: mm)





Typical Application
