DS-3E1518P-E
Gigabit Web-Managed PoE Switch


Key Feature
• 16 x gigabit PoE ports, and 2 x gigabit fiber optical ports.
• IEEE 802.3at/af standard for PoE ports.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• PoE output power management.
• AF/AT camera can reach up to 300 m in extend mode.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
• Port management.
• Web management.
• Solid high-strength metal shell.



DS-3E1518P-E switches are layer 2 PoE switches,
providing advanced PoE power supply technology and
Gigabit networks design on the basis of high-
performance access. The switches support Web
management, various layer 2 management protocols
such as STP/RSTP, VLAN, link aggregation, SNMP, QoS
and so on to ensure the data is uploaded steadily.





Specification
Model DS-3E1518P-E
Network
parameters
Port number 16 x gigabit PoE ports, and 2 x gigabit fiber optical ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table 8 K
Switching capacity 36 Gbps
Packet forwarding rate 26.784 Mpps
Internal cache 4.1 Mbits
PoE power
supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Ethernet cables 1/2/3/6 provide power supply.
PoE port Ports 1 to 16
Max. port power 30 W
PoE power budget 225 W
General
Shell Metal material
Net weight 2.735 kg (6.03 lb)
Gross weight 3.31 kg (7.30 lb)
Dimension (L x H x D) 440 mm x 220.8 mm x 44 mm (17.32” x 8.69” x 1.73”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Relative humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50/60 Hz, Max. 4 A
Power source 250 W
Max. power
consumption
250 W
Power consumption in
idle
25 W
Software
Function Device maintenance
Support remote upgrade, recovering default parameters, viewing logs,
configuring basic network parameters, import and export configuration,
time sync.
Port configuration
Support the configuration of port rate and slow control, and ports
enabling.
Long range Support up to 300 m transmission.
PoE watchdog Ports 1 to 16: auto detect and restart the cameras that do not respond.
Port rate-limiting Support rate-limiting for ingress and egress ports.
Storm control Support the storm control of unknown unicast, multicast and broadcast.
Port mirroring Support port mirroring function.
QoS Support WRR and SP scheduling and port priority.
VLAN Support 128 VLANs.
STP Support STP and RSTP.
SNMP
Support SNMPv1 and SNMPv2c, the node information for system and
interfaces acquisition.
PoE Support IEEE 802.3at/af power supply.




Physical Interface

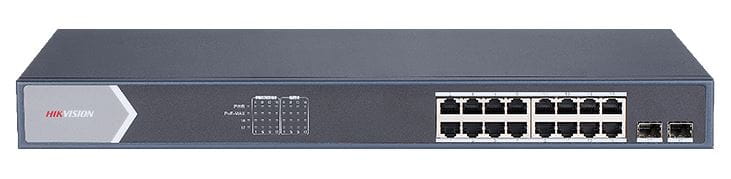

Front panel:

Back panel:


Available Model
DS-3E1518P-E





Dimension (unit: mm)






Typical Application
