DS-3E0105D-E

Availability: 0
Price: €9.50 9.50
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301801383

Description

DS-3E0105D-E 10/100 Mbps Ethernet Switch  * DS-3E0105D-E: 5 x 10/100 Mbps adaptive Ethernet ports  * Support ADI/ADIX  * Store-and-forward switching  * Support MAC address auto-learning and aging  * Simple and mini exquisite body  * Support desktop and wall-mounting  * Plug & play, and easy to use  Feature and Function    DS-3E0105D-E provides 5 x 10/100 Mbps Ethernet ports  which support line speed forwarding. With simple and mini  exquisite body, the switch is plug and play and easy to use,  suitable for home, school, dormitory, office, small monitoring  and other simple network environments.                      Model DS-3E0105D-E  Network parameters  Port number 5  Port type 10/100 Mbps RJ45 ports  Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x  Forwarding mode Store and forward  MAC address table 1 K  Switching capacity 1 Gbps  Packet forwarding rate 0.744 Mpps  General  Shell ABS  Weight 0.025 kg  Dimensions (L x H x D) 82 x 52 x 22.4 mm  Operating temperature 0°C~40°C  Storage temperature -40°C~70°C  Operating humidity 10%~90% RH non-condensing  Storage humidity 5%~90% RH non-condensing  Power supply 5 V D...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

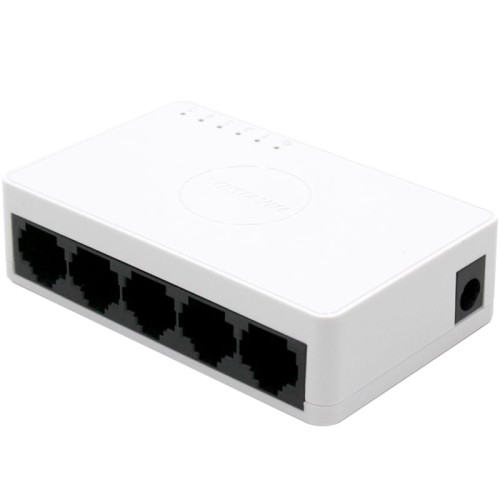

DS-3E0105D-E 10/100 Mbps Ethernet Switch
* DS-3E0105D-E: 5 x 10/100 Mbps adaptive Ethernet ports
* Support ADI/ADIX
* Store-and-forward switching
* Support MAC address auto-learning and aging
* Simple and mini exquisite body
* Support desktop and wall-mounting
* Plug & play, and easy to use
Feature and Function

DS-3E0105D-E provides 5 x 10/100 Mbps Ethernet ports
which support line speed forwarding. With simple and mini
exquisite body, the switch is plug and play and easy to use,
suitable for home, school, dormitory, office, small monitoring
and other simple network environments.










Model DS-3E0105D-E
Network parameters
Port number 5
Port type 10/100 Mbps RJ45 ports
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store and forward
MAC address table 1 K
Switching capacity 1 Gbps
Packet forwarding rate 0.744 Mpps
General
Shell ABS
Weight 0.025 kg
Dimensions (L x H x D) 82 x 52 x 22.4 mm
Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Operating humidity 10%~90% RH non-condensing
Storage humidity 5%~90% RH non-condensing
Power supply 5 V DC, 0.6 A
Specification



Physical Interface
Front panel:


Side panel:


Available Model
DS-3E0105D-E
Accessories
Power adapter x 1, User manual x 1, Switch x 1
Dimension






Typical Application
